Headlamp Switch

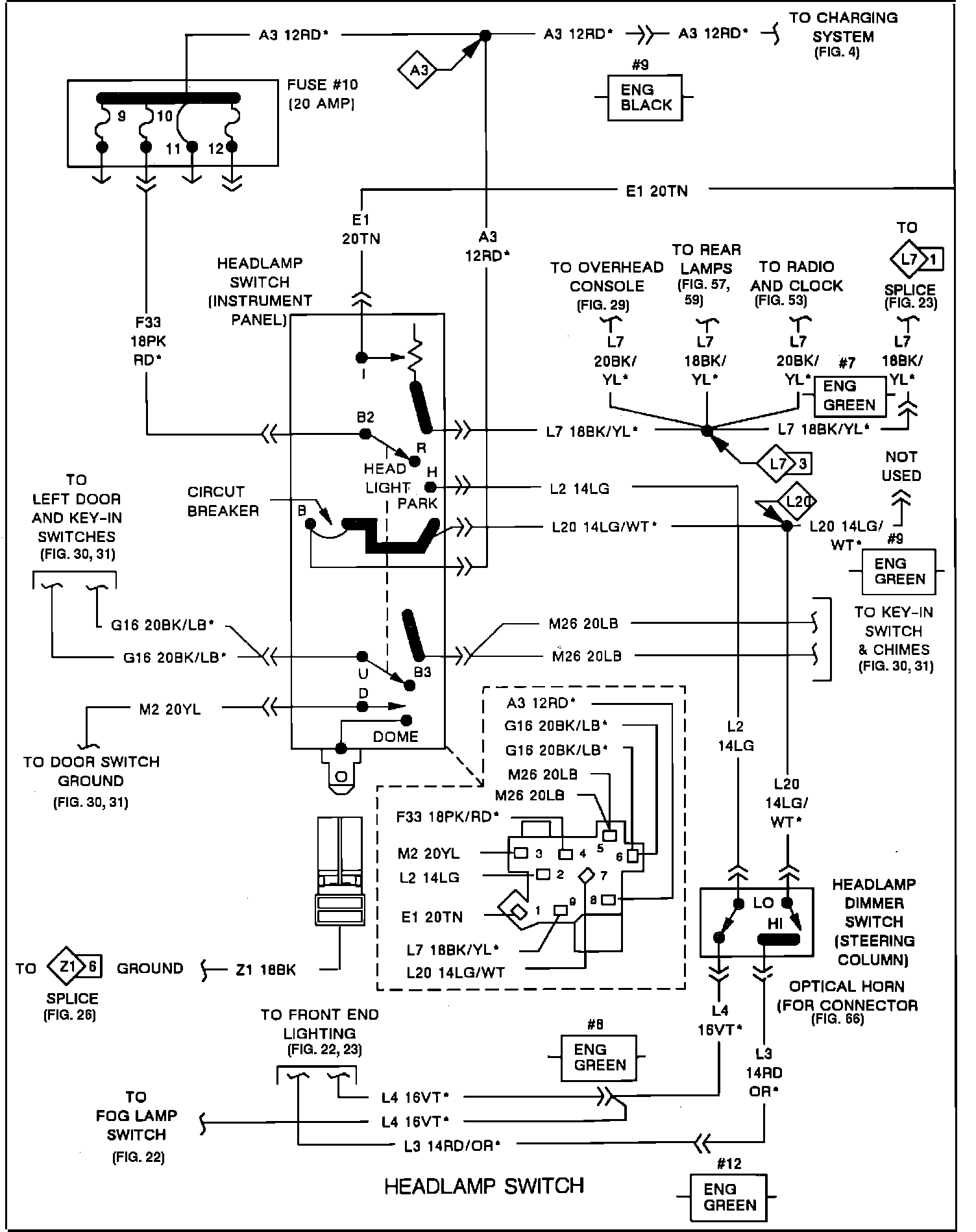

Headlamp Switch -- Part 1:

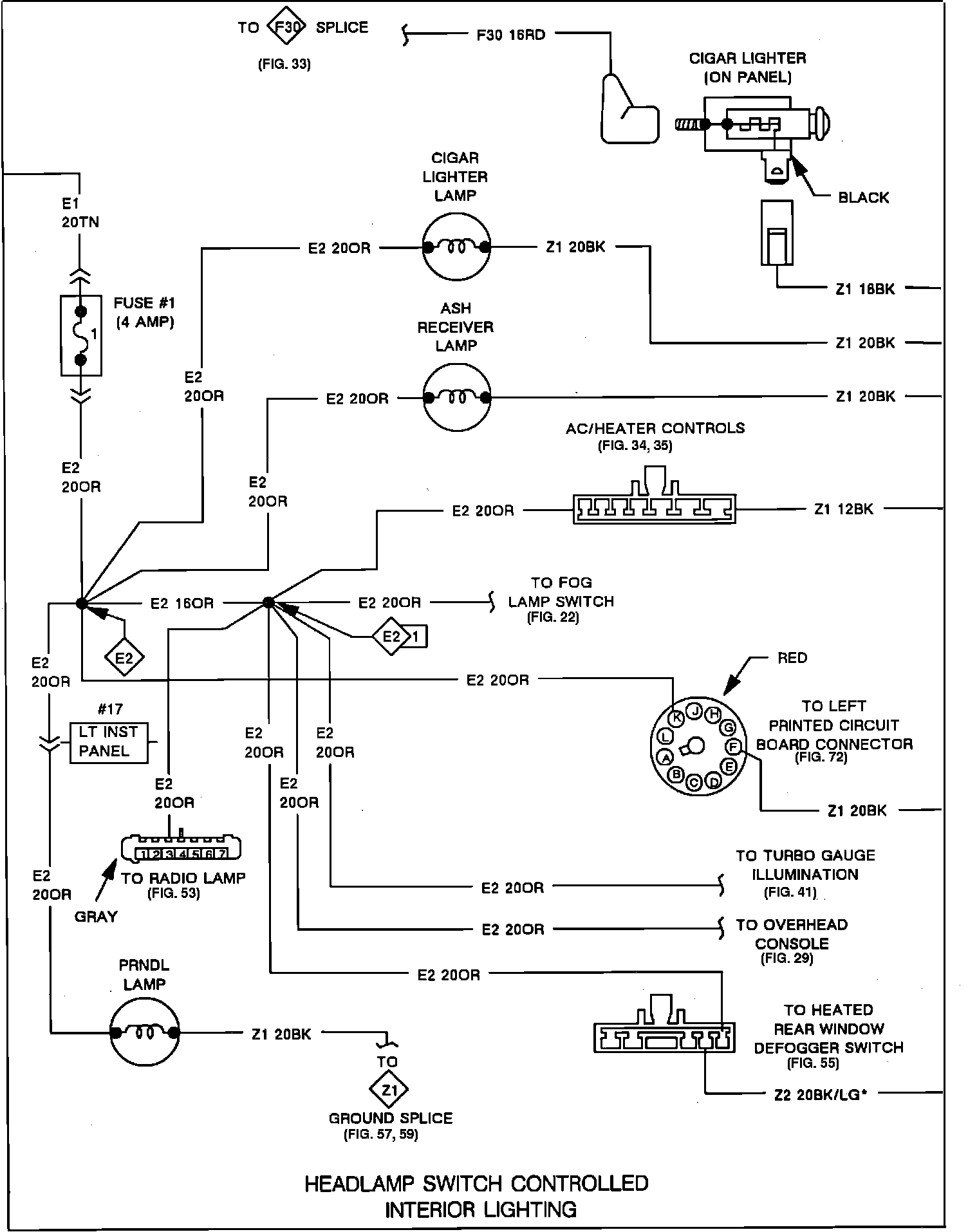

Headlamp Switch Controlled Interior Lighting -- Part 2:

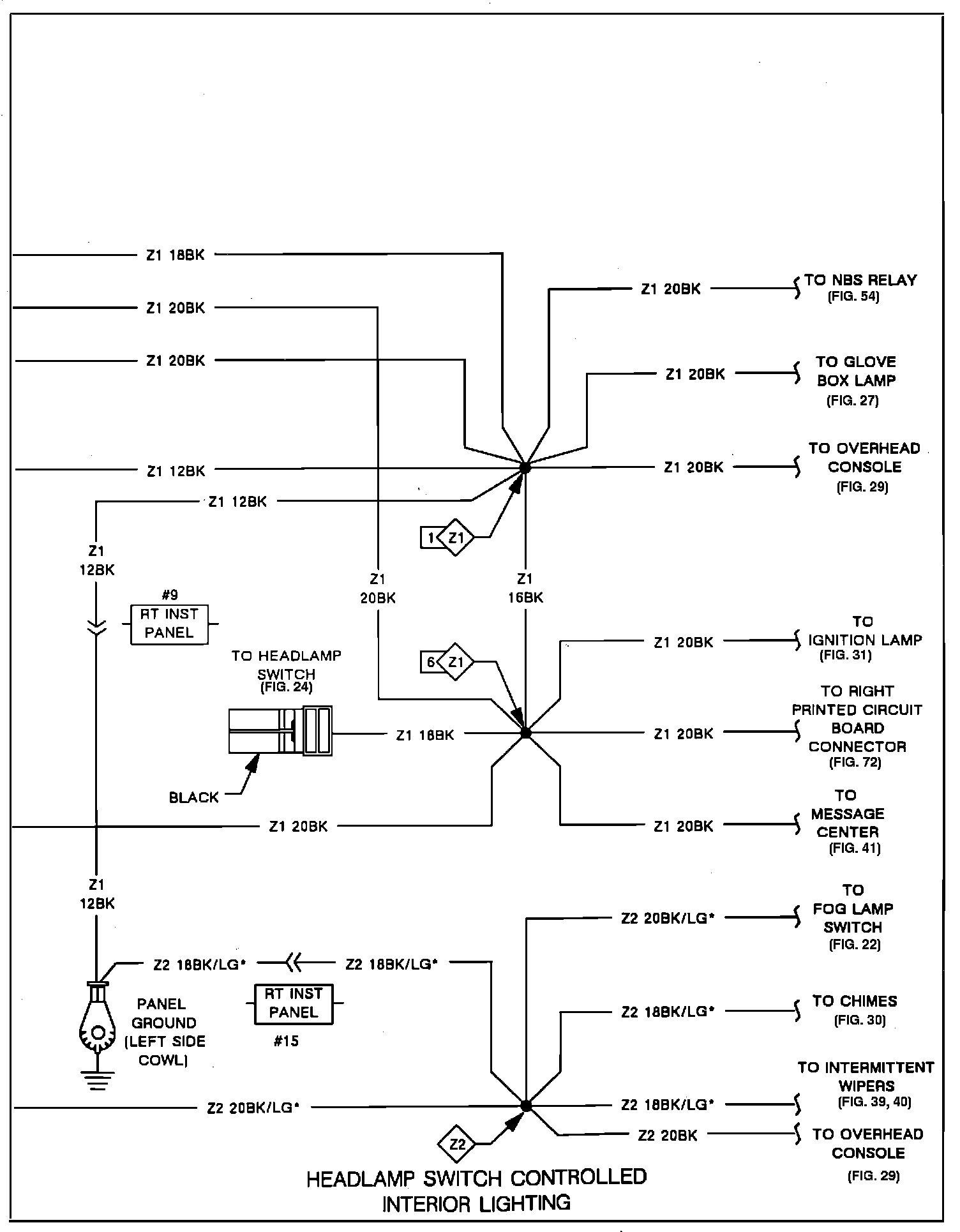

Headlamp Switch Controlled Interior Lighting -- Part 3:
