Right Instrument Panel to Body Wiring
Right Instrument Panel to Body Wiring

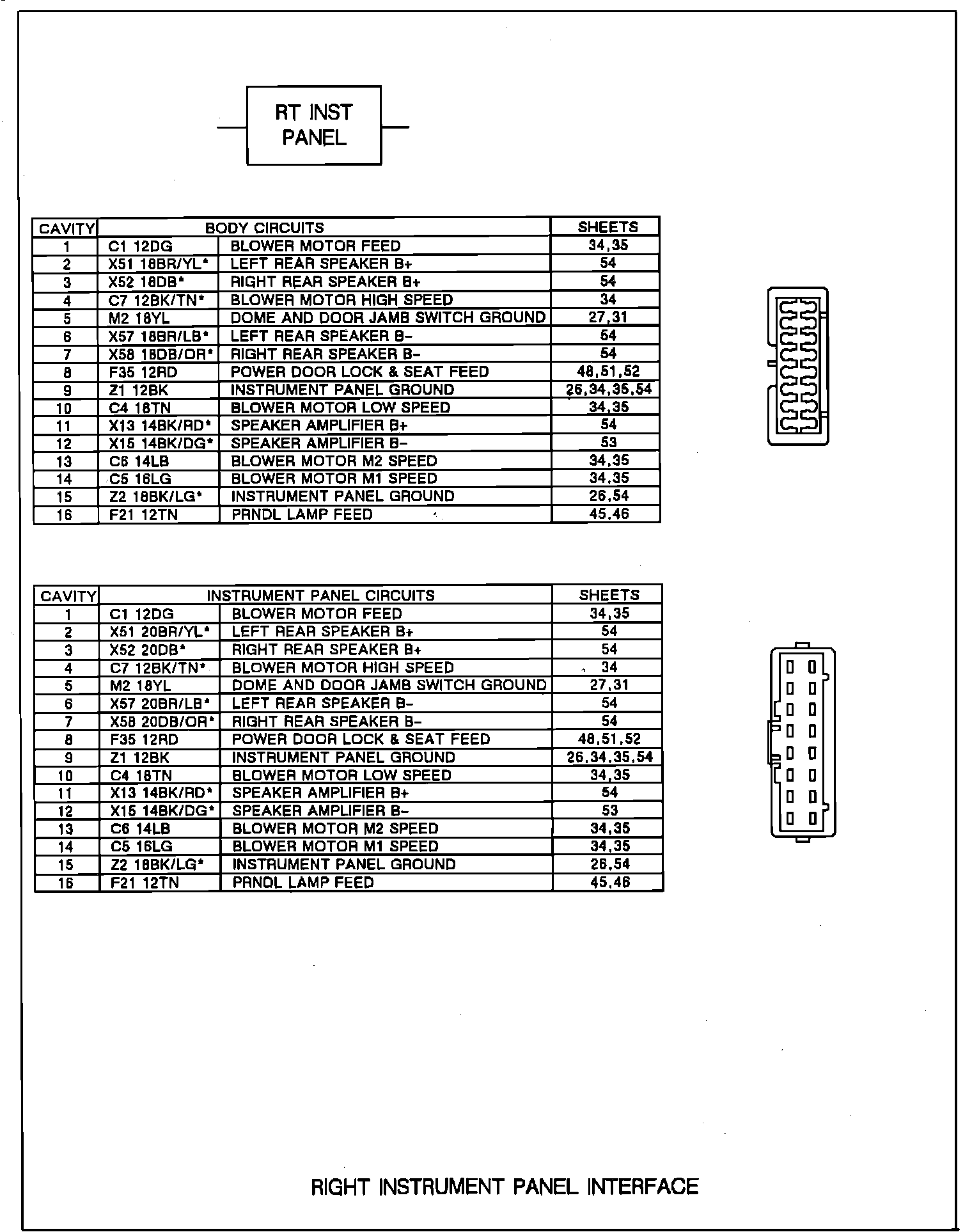

Right Instrument Panel Interface:
