Home >> Plymouth >> 1992 >> Acclaim L4-153 2.5L SOHC VIN B >> Repair and Diagnosis >> Body and Frame >> Locks >> Door Locks >> Diagrams >> Electrical Diagrams >> Part 3 of 3

Part 3 of 3

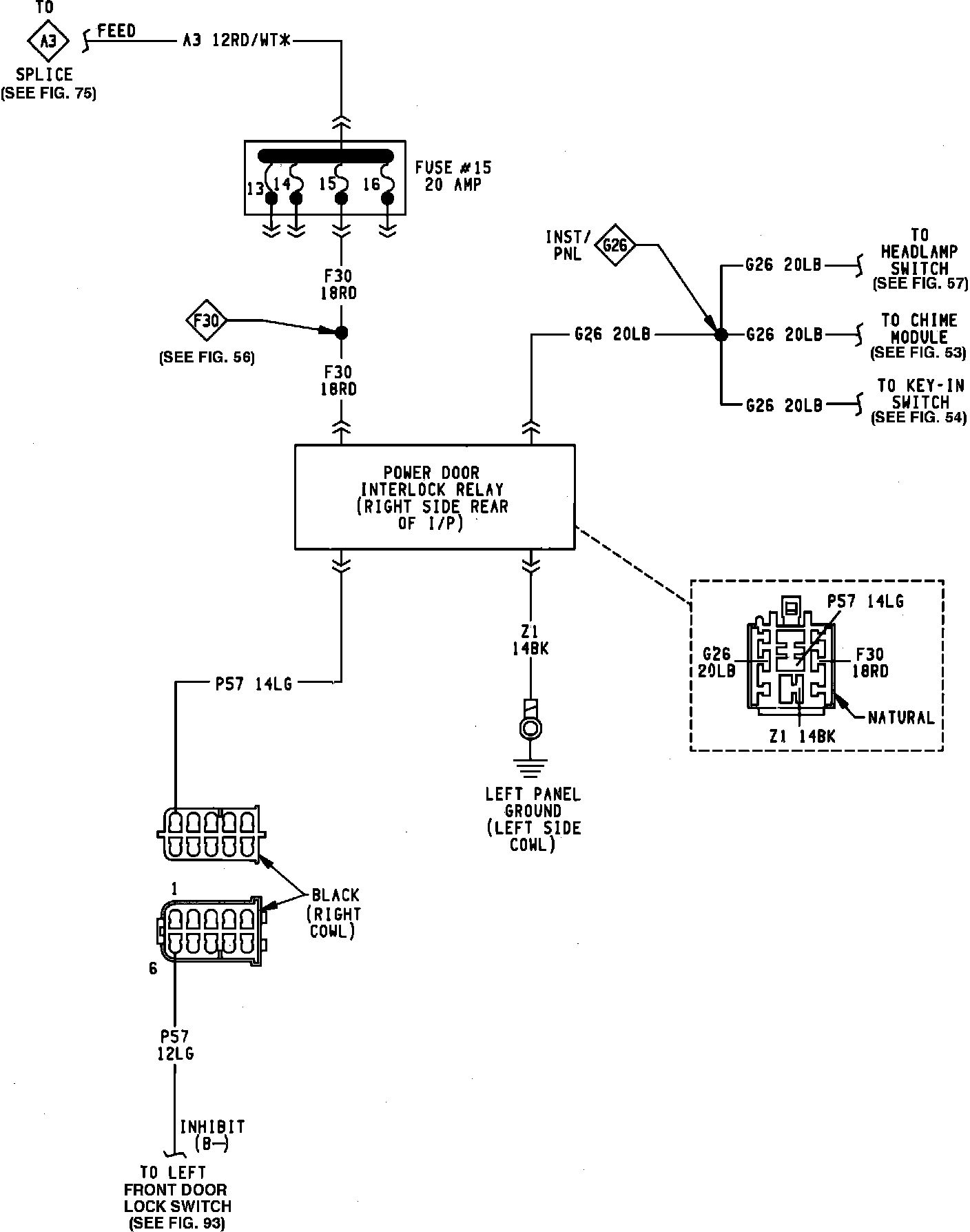

Power Door Interlock System:
