Headlamp Switch Controlled Interior Lamps

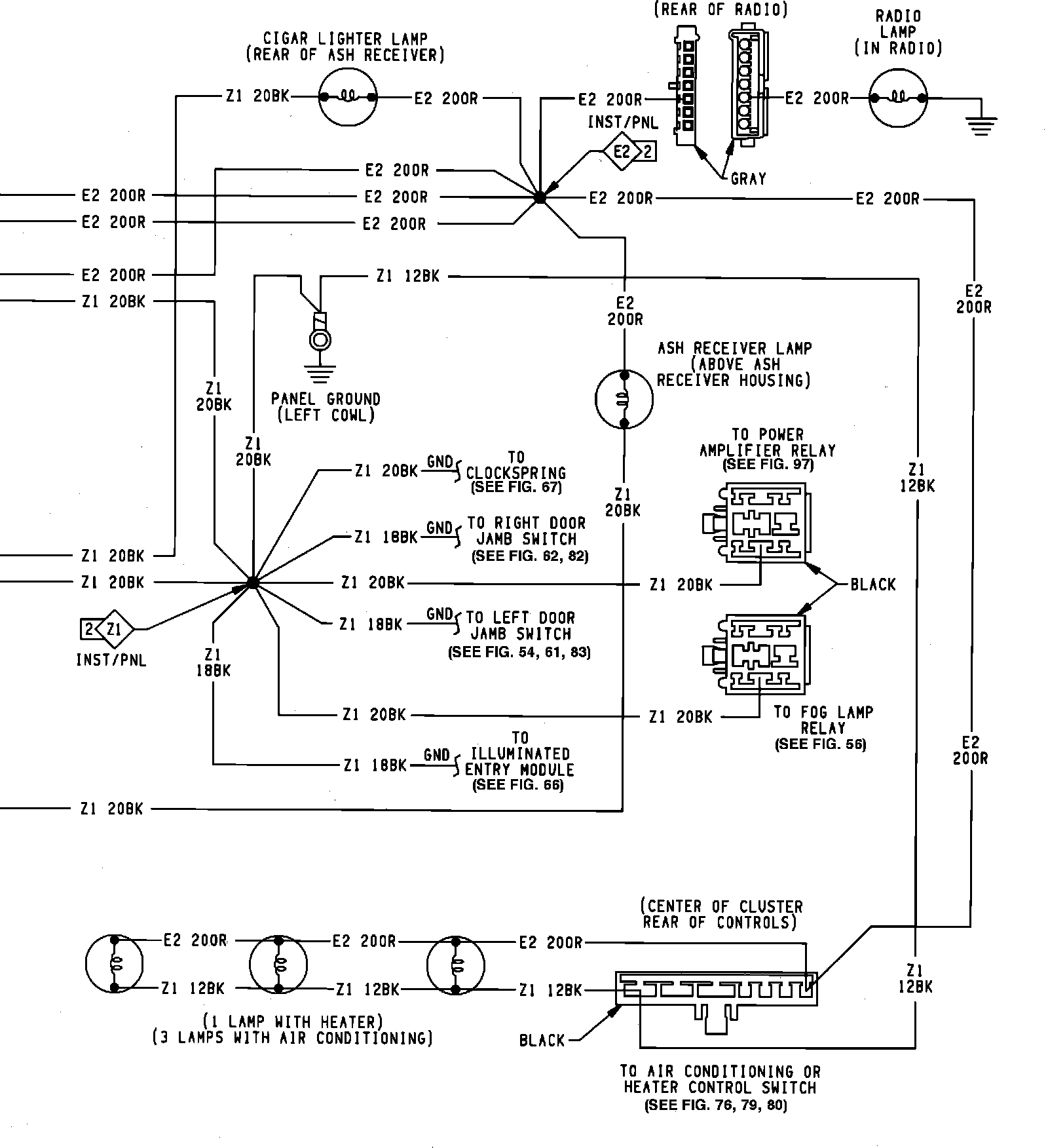

Headlamp Switch Controlled Interior Lighting:



Headlamp Switch Controlled Interior Lighting:
