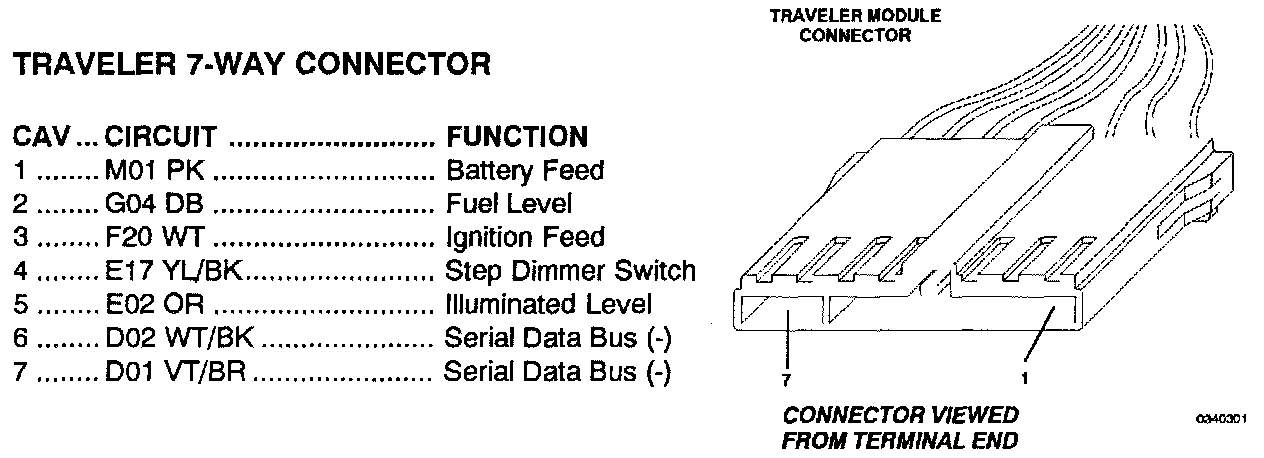

Driver/Vehicle Information Display

CAV CIRCUIT FUNCTION

1 M01 PK Battery Feed
2 G04 DB Fuel Level
3 F20 WT Ignition Feed
4 E17 YL/BK Step Dimmer Switch
5 E02 OR Illuminated Level
6 D02 WT/BK Serial Data Bus (-)
7 D01 VT/BR Serial Data Bus (+)
