Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Bendix Anti-Lock 6 Braking System Wiring Diagram
Bendix Anti-Lock 6 Braking System Wiring Diagram

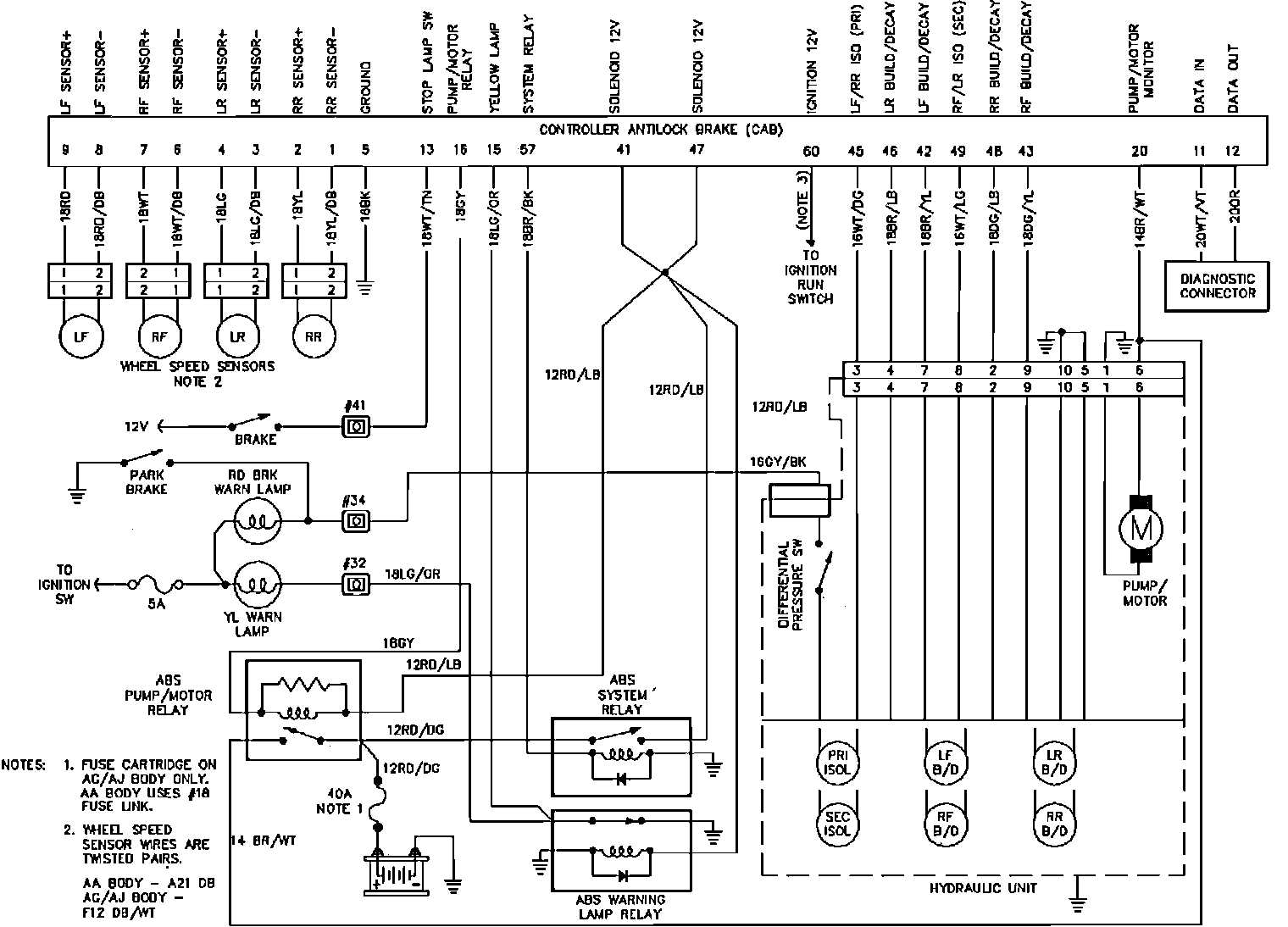

Fig. 2 Bendix Anti-Lock 6 Braking System Wiring Diagram:
Fig. 3 Bendix Anti-Lock 6 Braking System Connector Identification:
