System Diagram

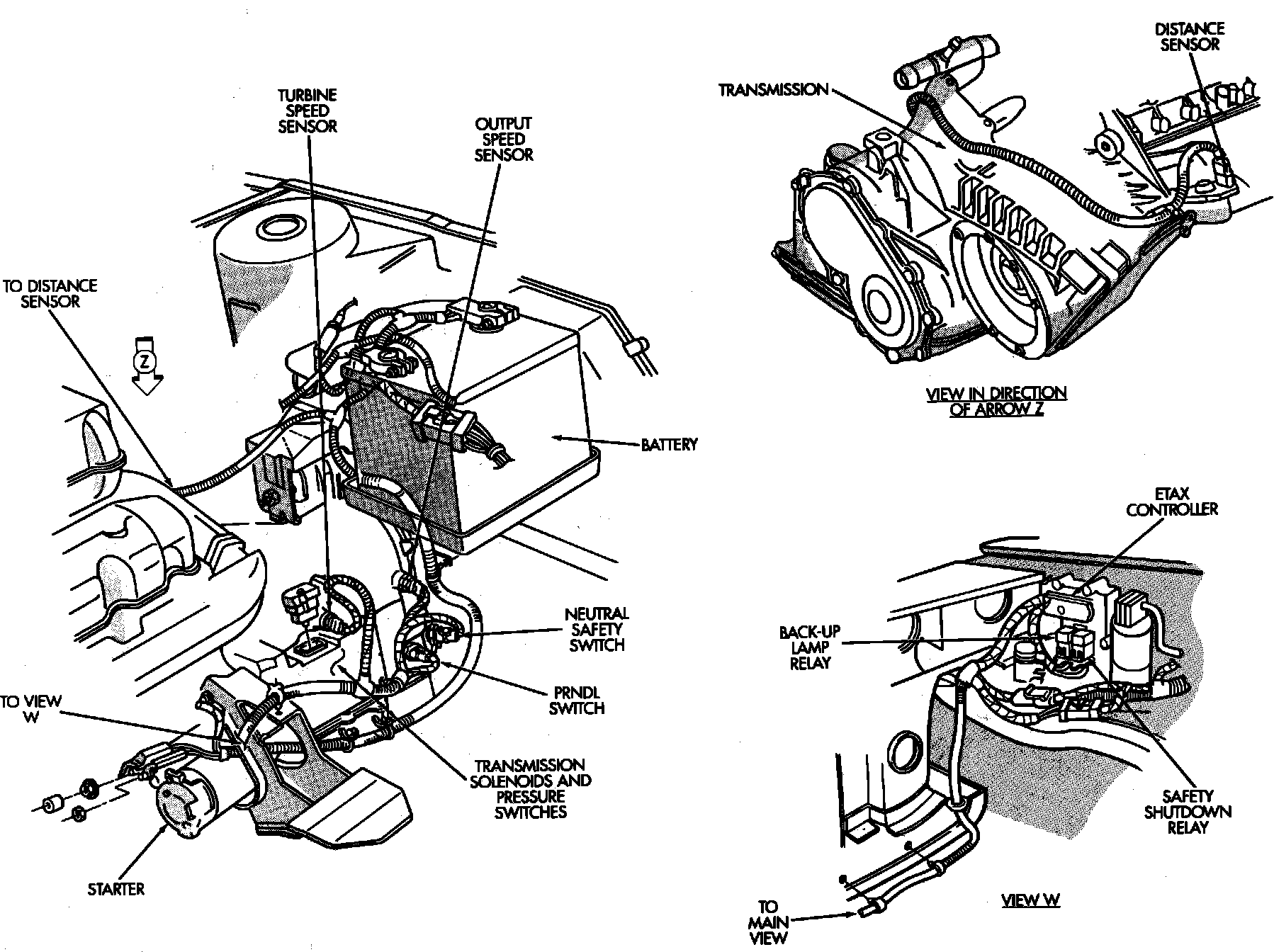

Transmission Wiring AA Body With 3 Speed Automatic:

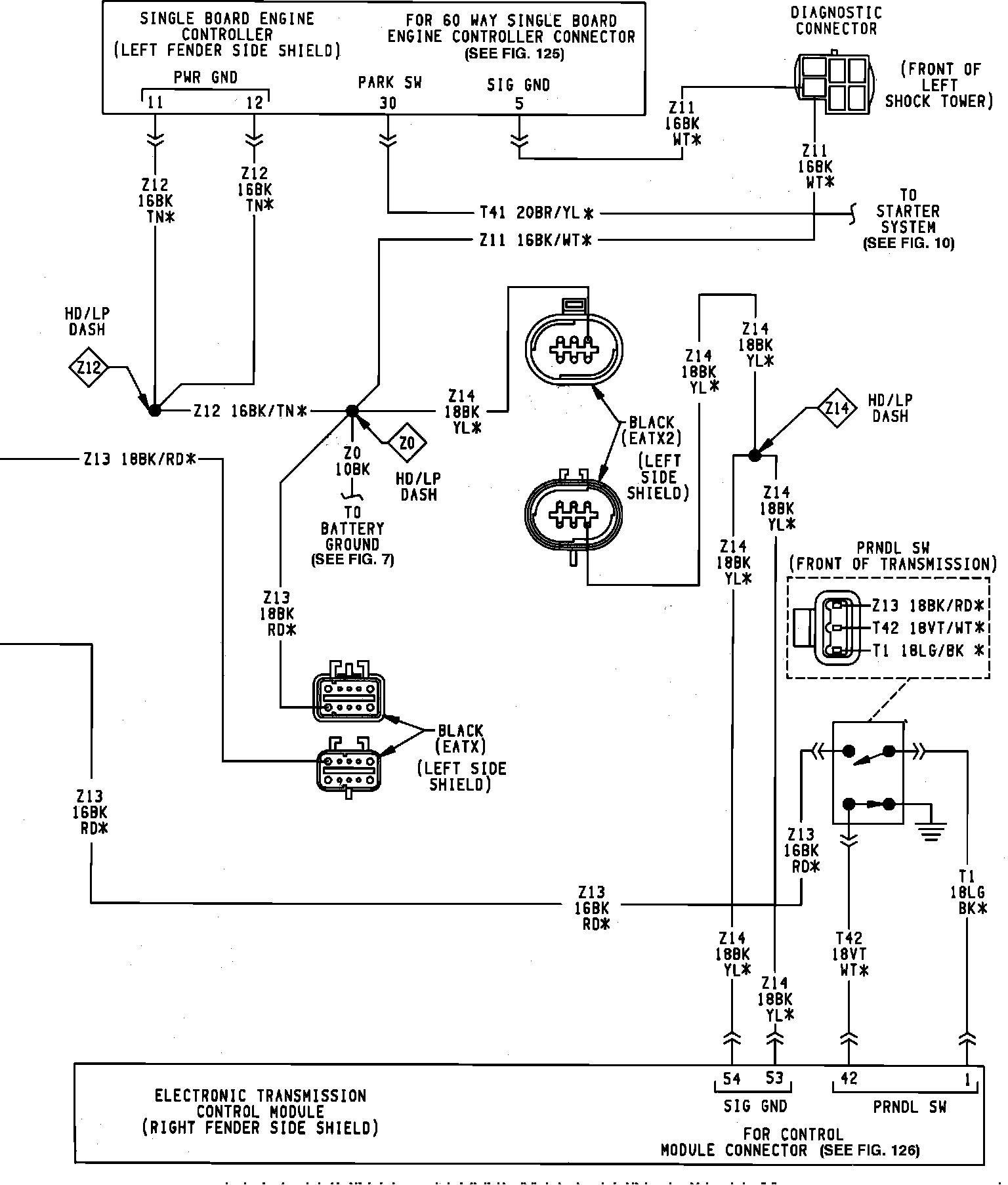

Transmission Wiring ETAX AA Body:

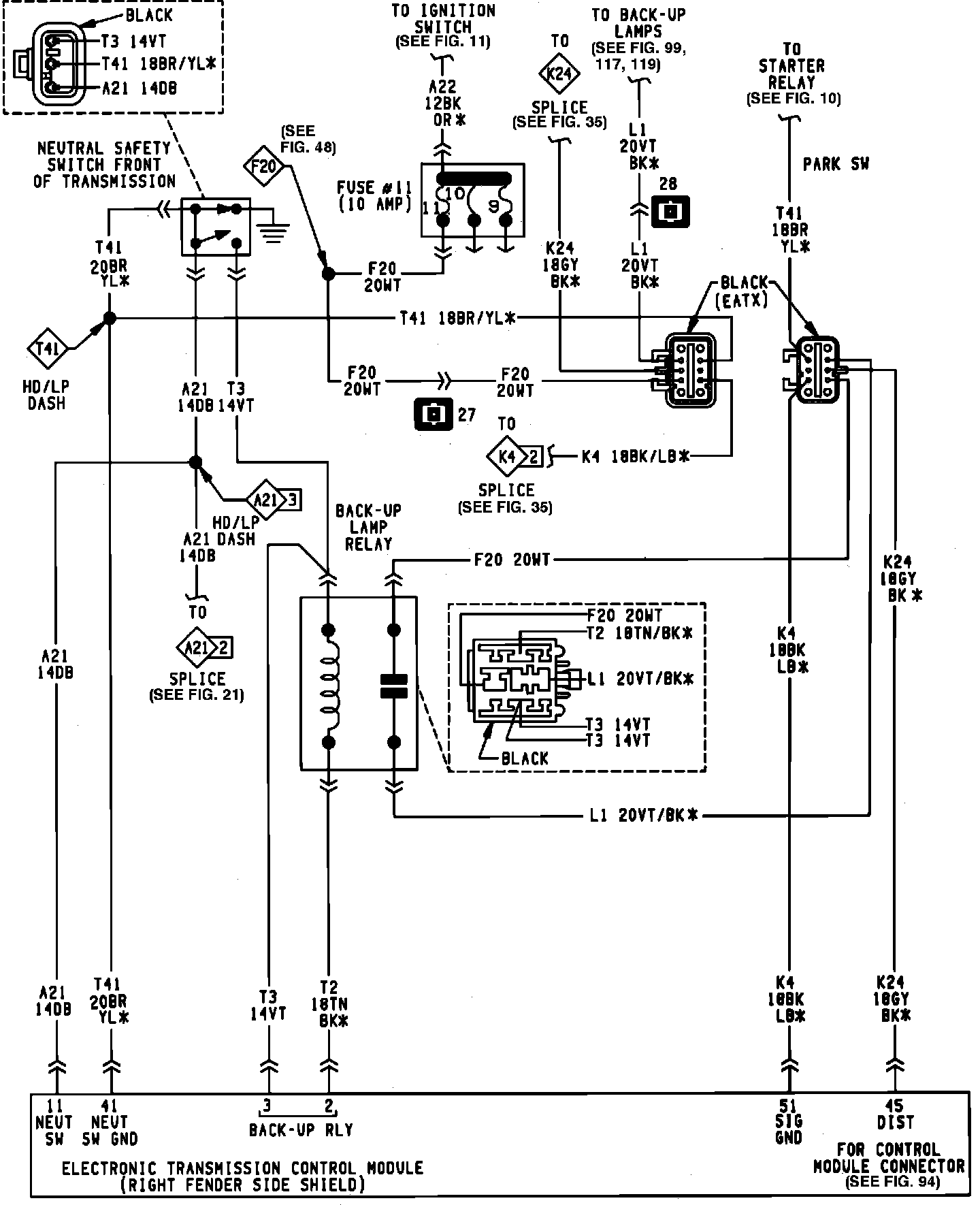

Electronic Transmission System:

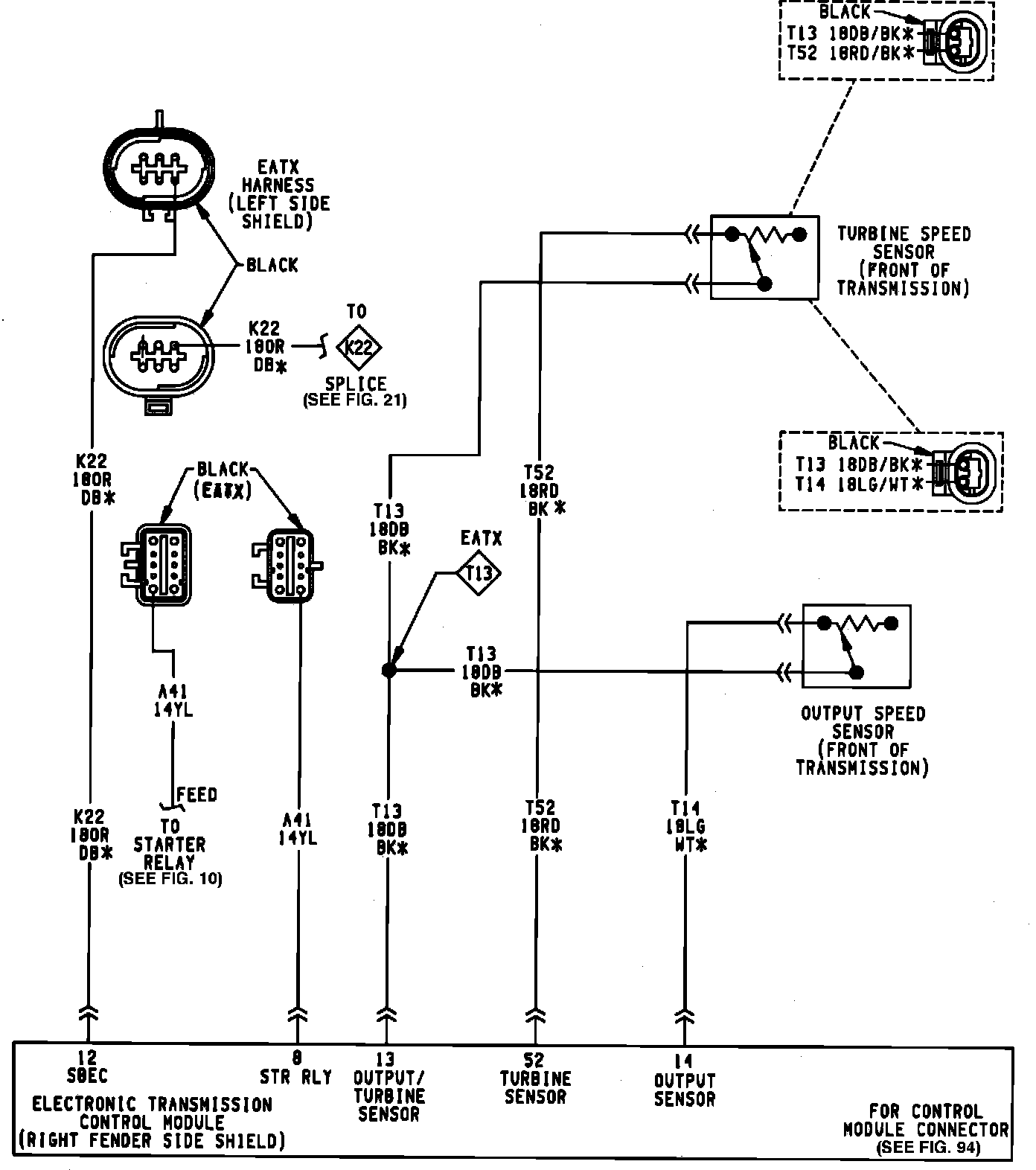

Electronic Transmission System:

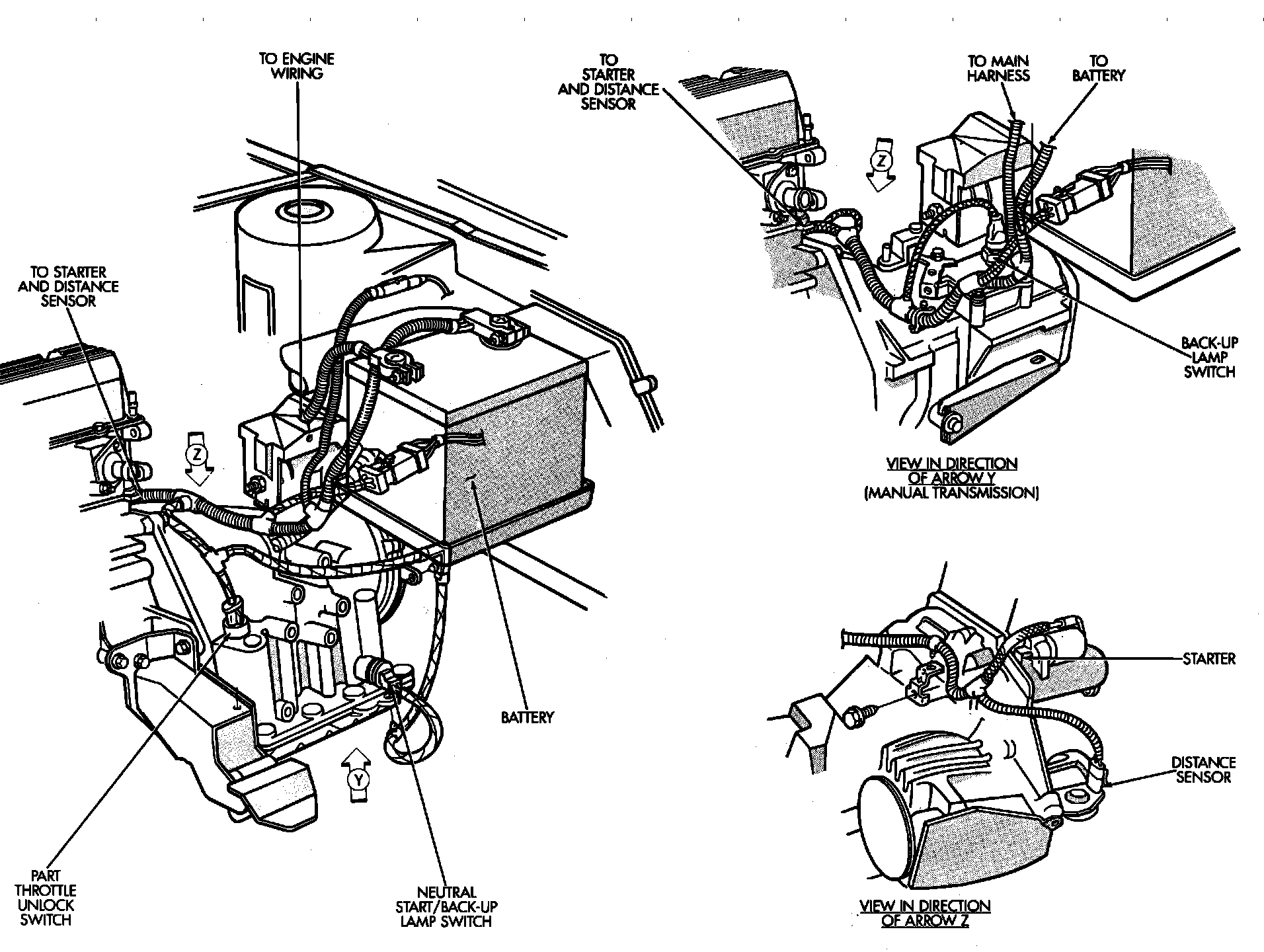

Electronic Transmission System:



Electronic Transmission System:



Electronic Transmission System:
