Home >> Plymouth >> 1992 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Part 1 of 3

Part 1 of 3

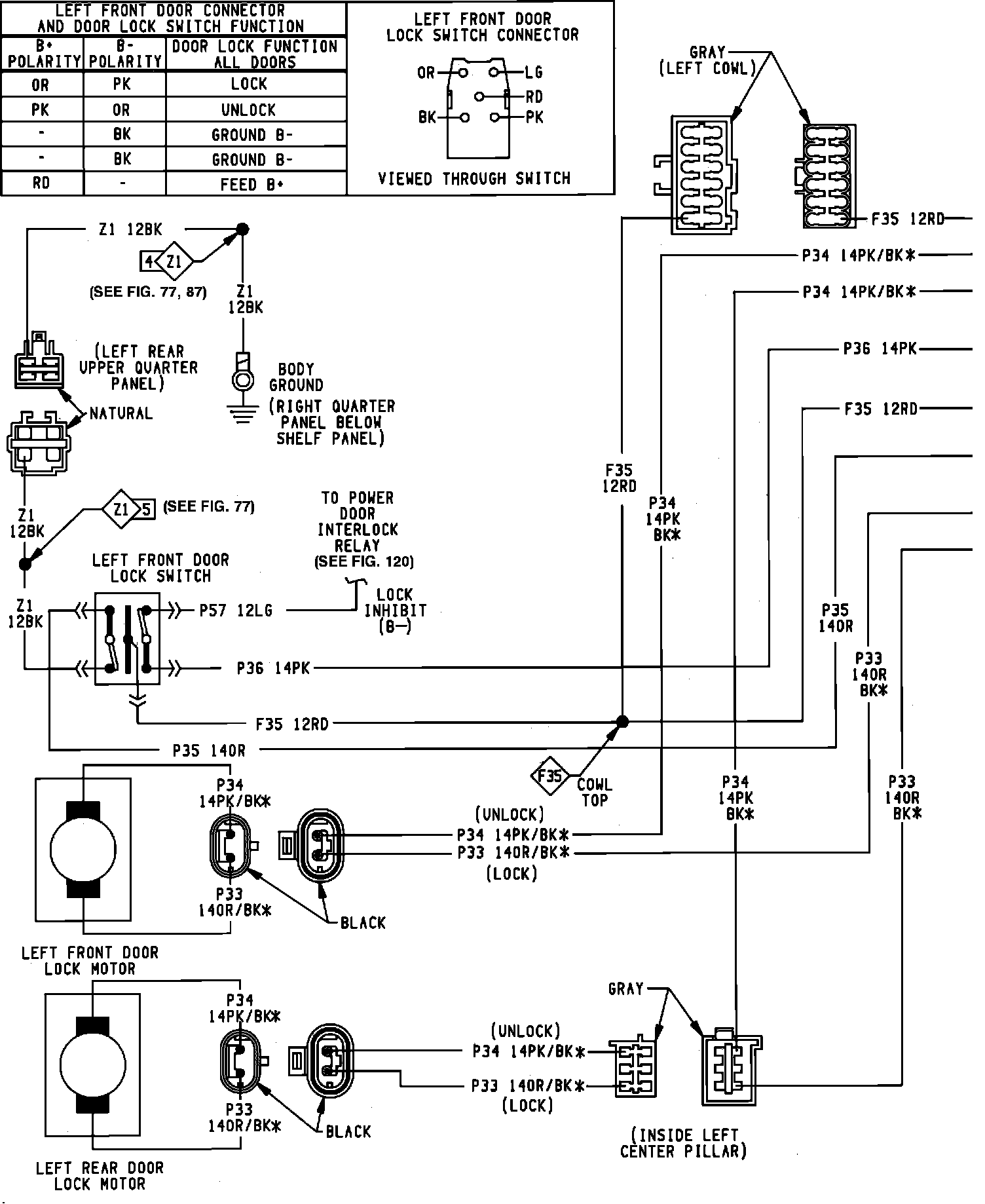

Power Door Lock System:
