Fog/Driving Lamp Switch

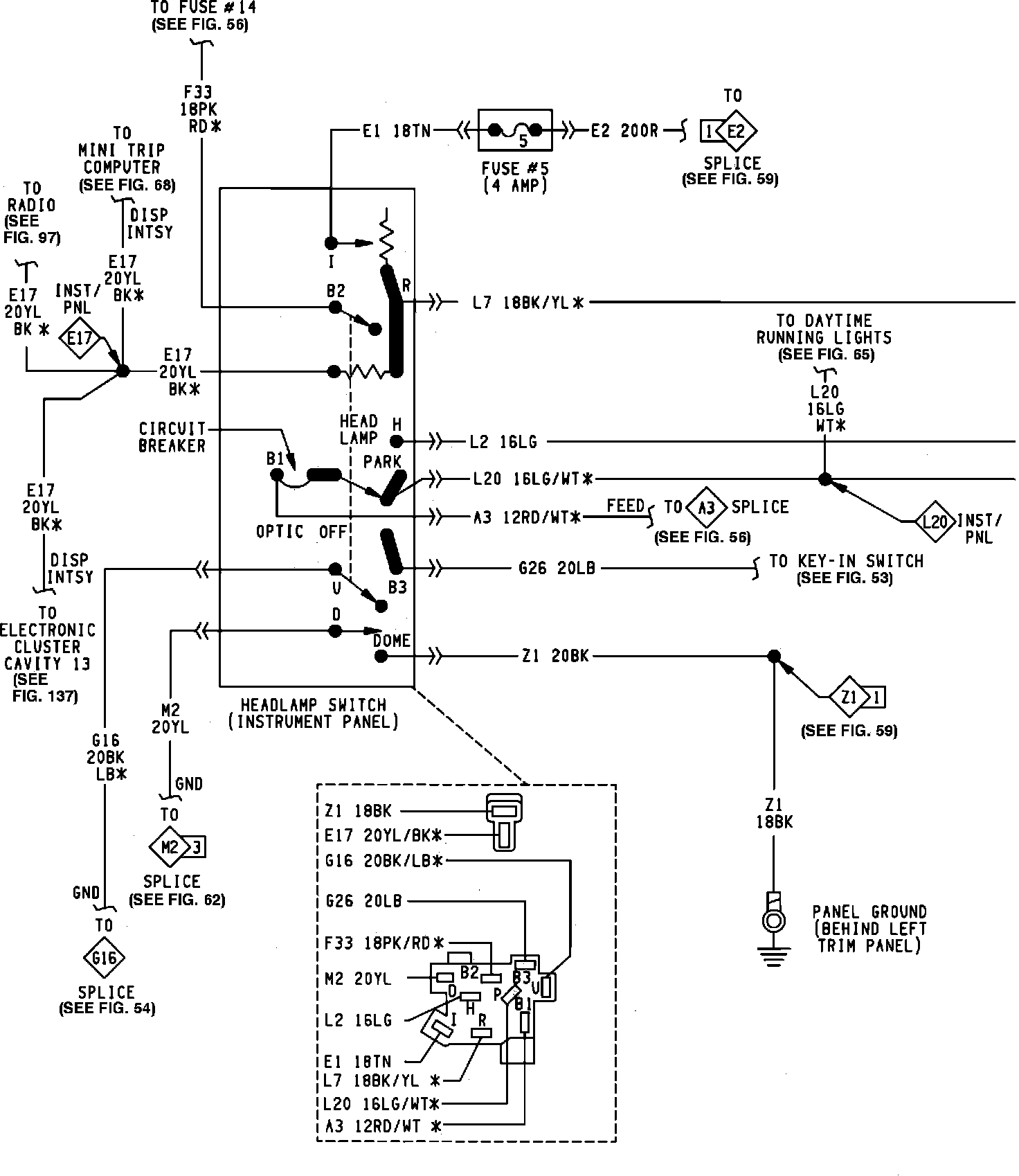

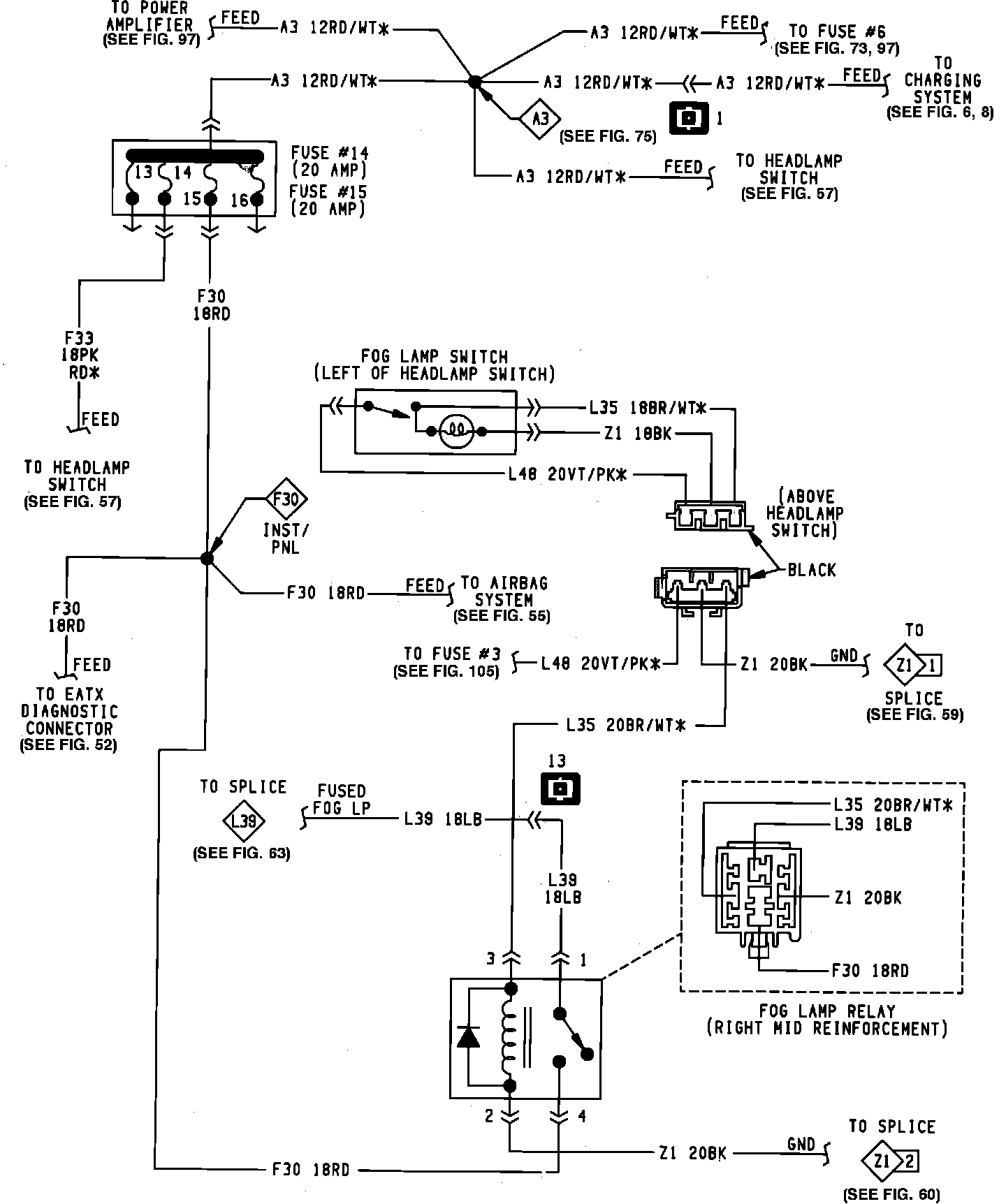

Headlamp And Fog Lamp Switch -- Part 1:



Headlamp And Fog Lamp Switch -- Part 2:



Headlamp And Fog Lamp Switch -- Part 3:
