Front Seat Assembly

REMOVAL STEPS
1. Seat anchor covers
2. Guide rind
3. Seat mounting bolts
4. Seat mounting nuts
5. Harness connector
6. Front seat assembly
7. Head restraint

NOTES: Reverse the removal procedures to reinstall


SERVICE POINTS OF INSTALLATION

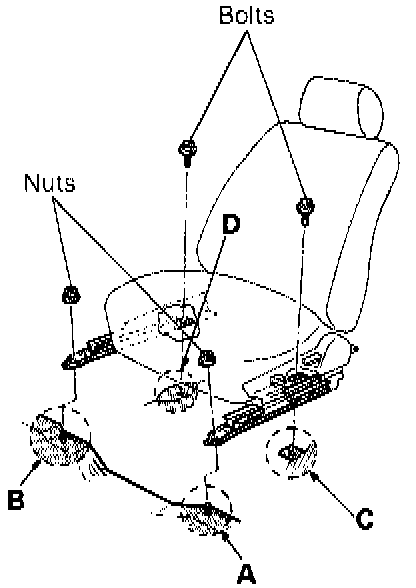

4. Installation Of Seat Mounting Nuts
After checking that the seat adjuster is locked at both sides, provisionally tighten (in the A,B,C and D sequence) the seat installation nuts and the seat installation bolts; then fully tighten at the specified torque.

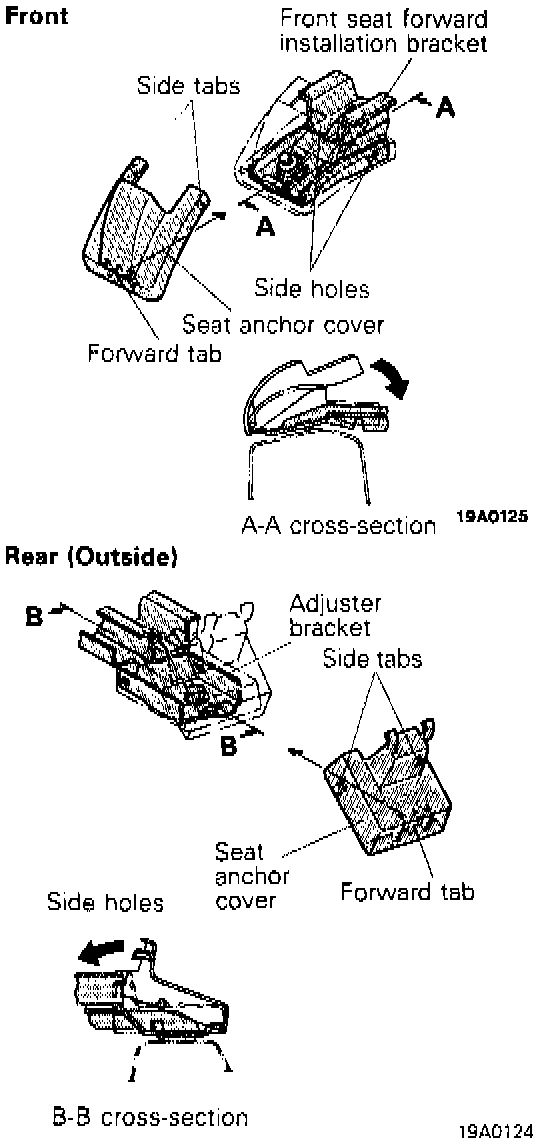

1. Installation Of Seat Anchor Covers
1. Securely install the front side seat anchor forward tab to the front seat forward installation bracket.
2. Turn the seat anchor cover in the direction indicated by the arrow, and install the tab at the side part to the hole in the bracket side part.
3. Securely install the rear side seat anchor cover (outer side) rearward tab to the front seat rearward installation bracket (outer side).
4. Turn the seat anchor cover in the direction indicated by the arrow and insert the side tabs into the holes in the front seat rearward installation bracket side part.
