Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1992
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Chart No. 11, Accelerator Switch Off Function Related Circuits
Chart No. 11, Accelerator Switch Off Function Related Circuits

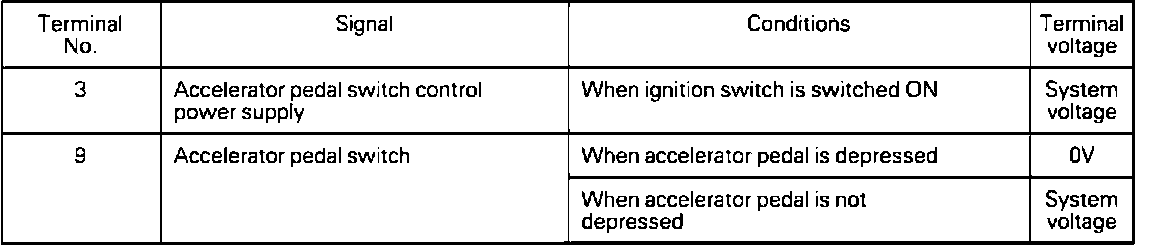

Fig. 55 Check Chart No. 11, Accelerator Switch Off Function Related Circuits:
