Chart No. 12, Overdrive Cancellation Function Related Circuits
Chart No. 12, Overdrive Cancellation Function Related Circuits

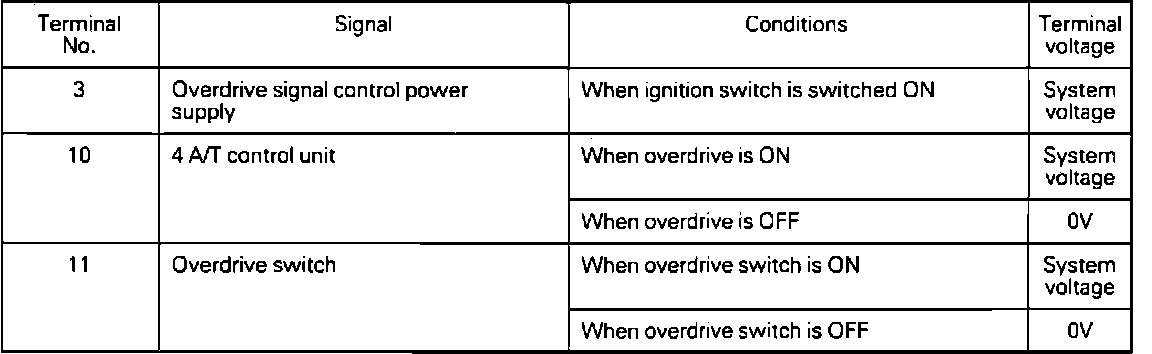

Fig. 56 Check Chart No. 12, Overdrive Cancellation Function Related Circuits:
