B Connectors - Engine and Transaxle Harness

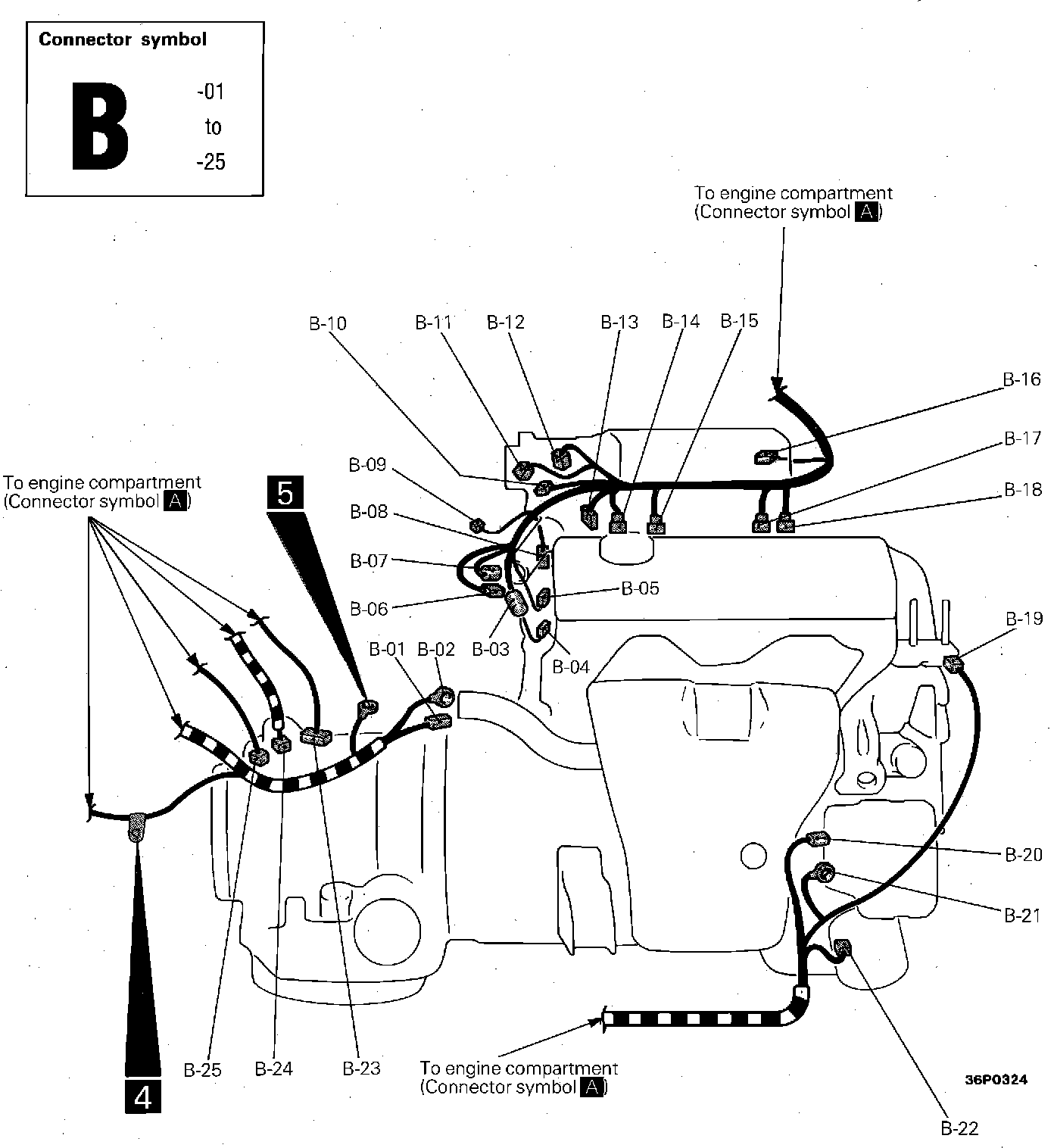

Connector Locations (Engine And Transaxle):

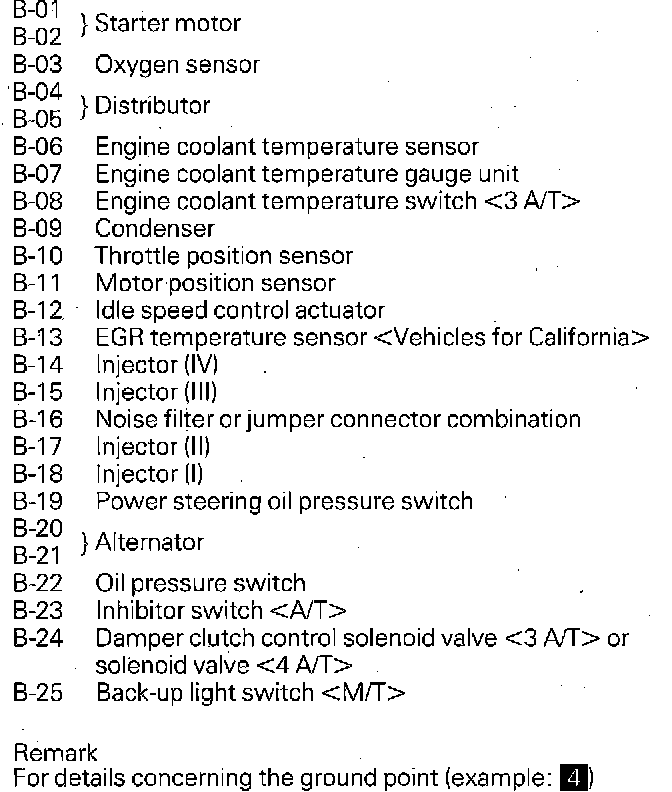

Connector Locations (Engine And Transaxle):
