E Connectors - Instrument Panel
E Connectors - Instrument Panel

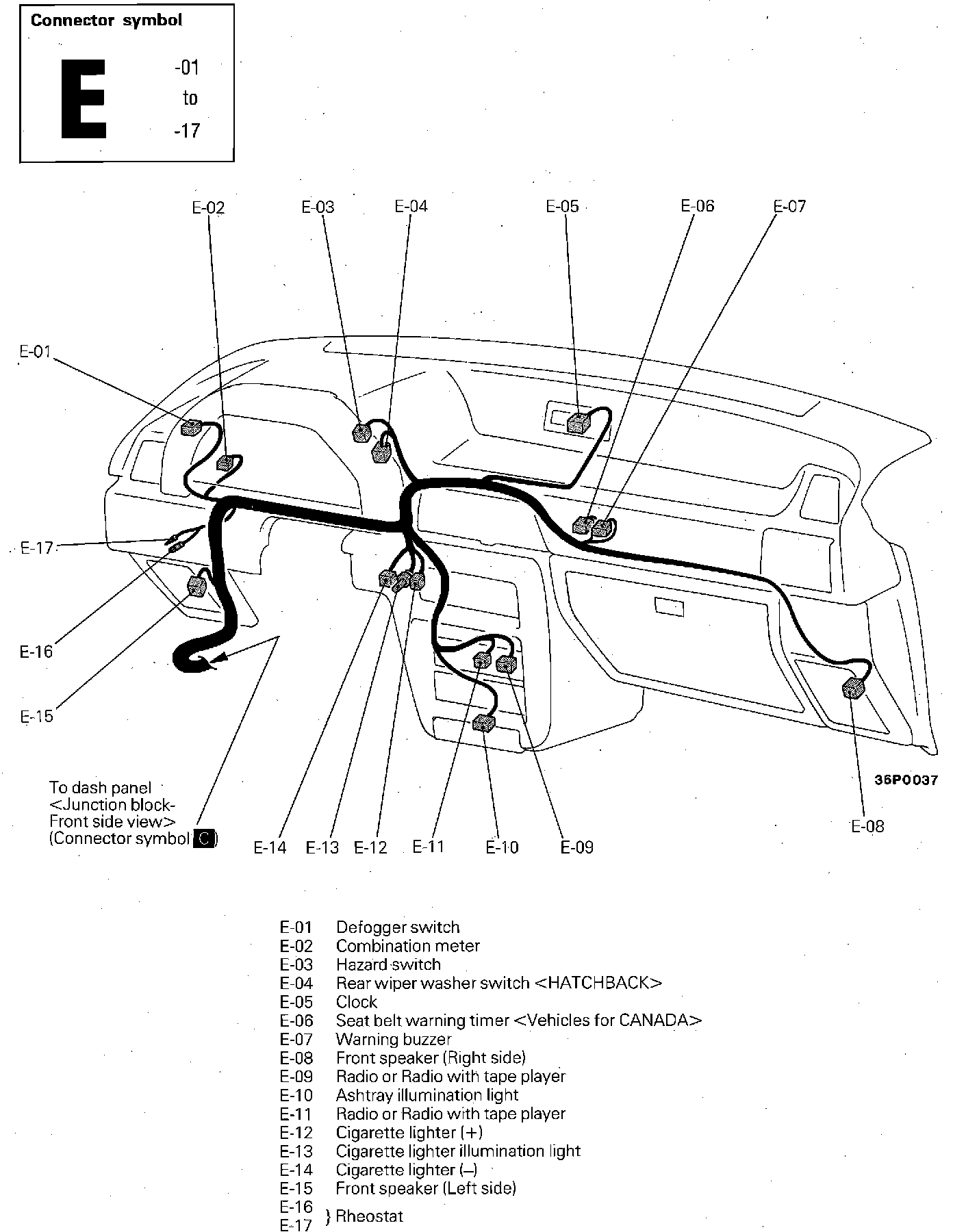

Connector Locations (Instrument Panel):
