Home >> Plymouth >> 1992 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Cargo Lamp

Cargo Lamp

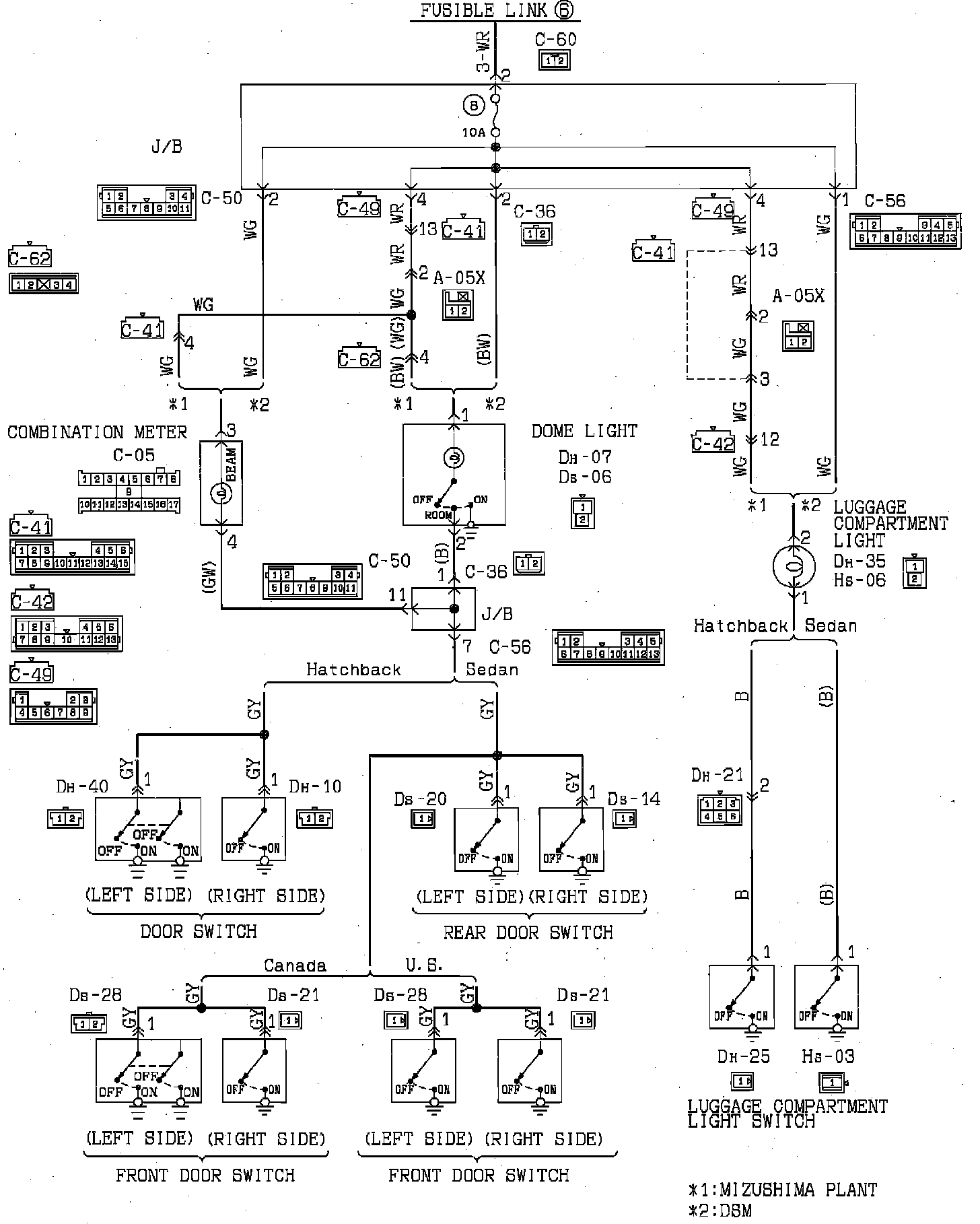

Dome And Luggage Compartment Lamps:
