System Diagram
System Diagram

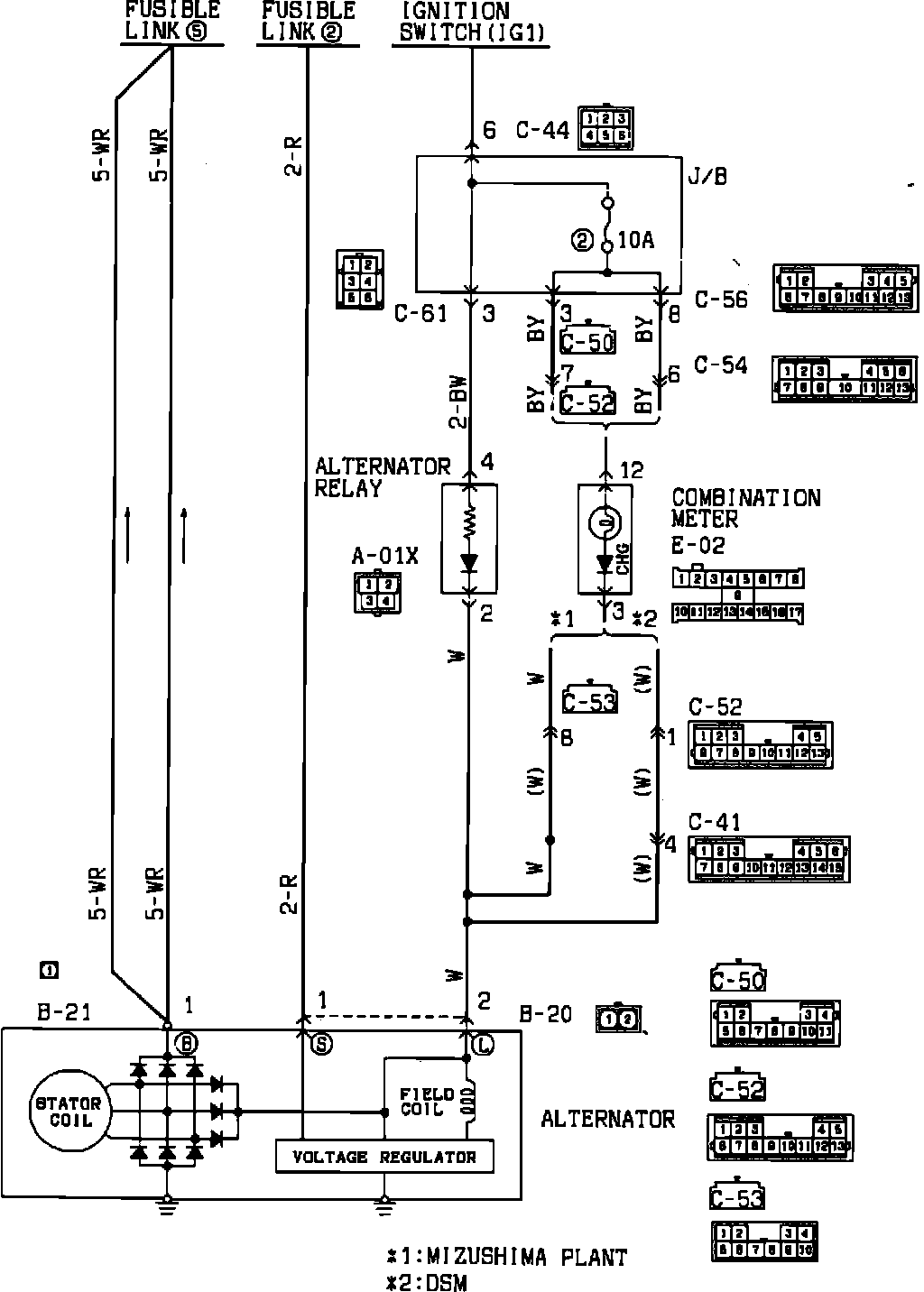

Fig. 4 Wiring Diagram Of Mitsubishi Charging System:

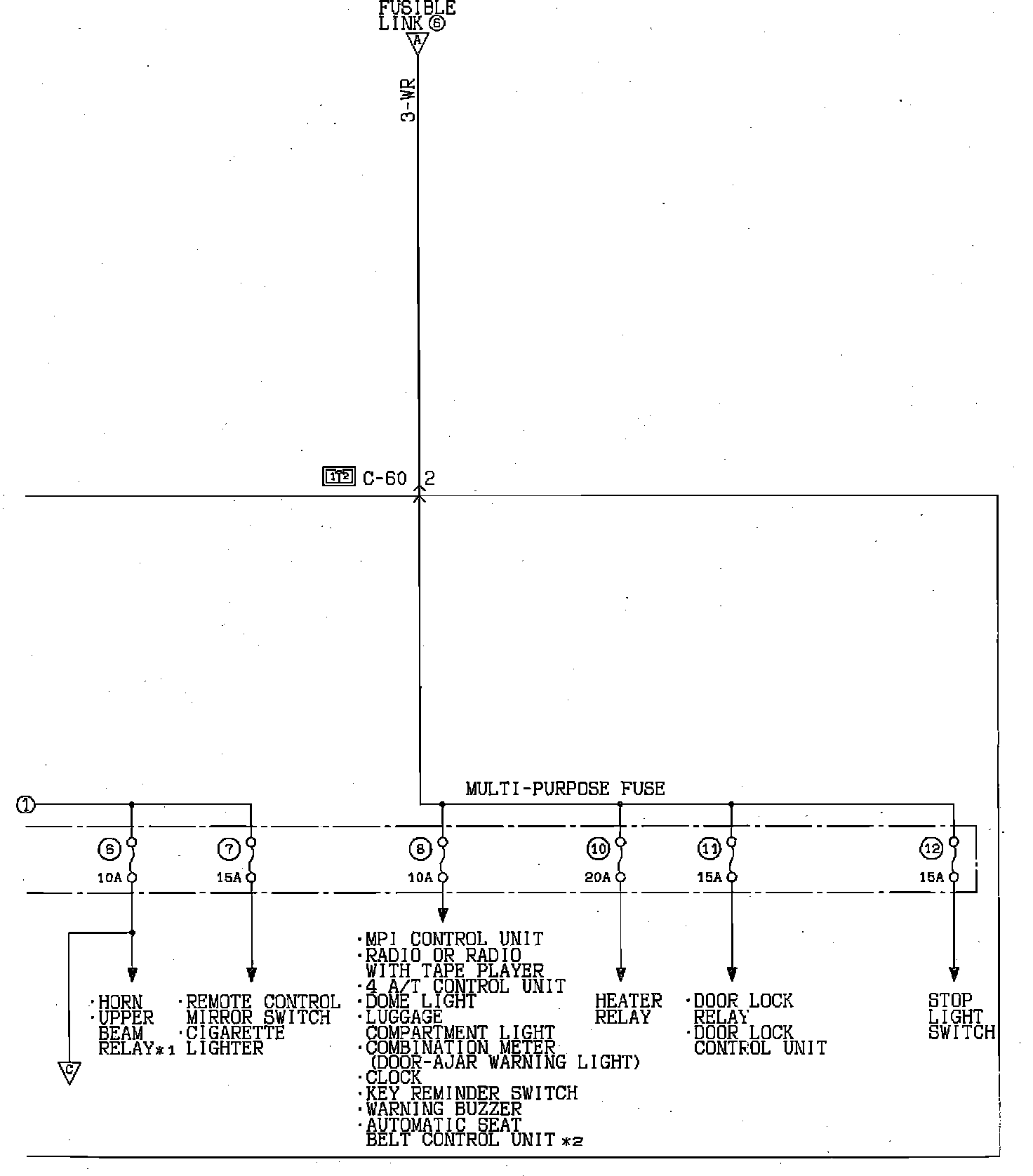

Power Distribution:
Power Distribution:
Power Distribution:
Power Distribution:
Charging System:
Starting System:
