Vehicles For Canada

PRE-REMOVAL OPERATION
- Removal of cowl side trims

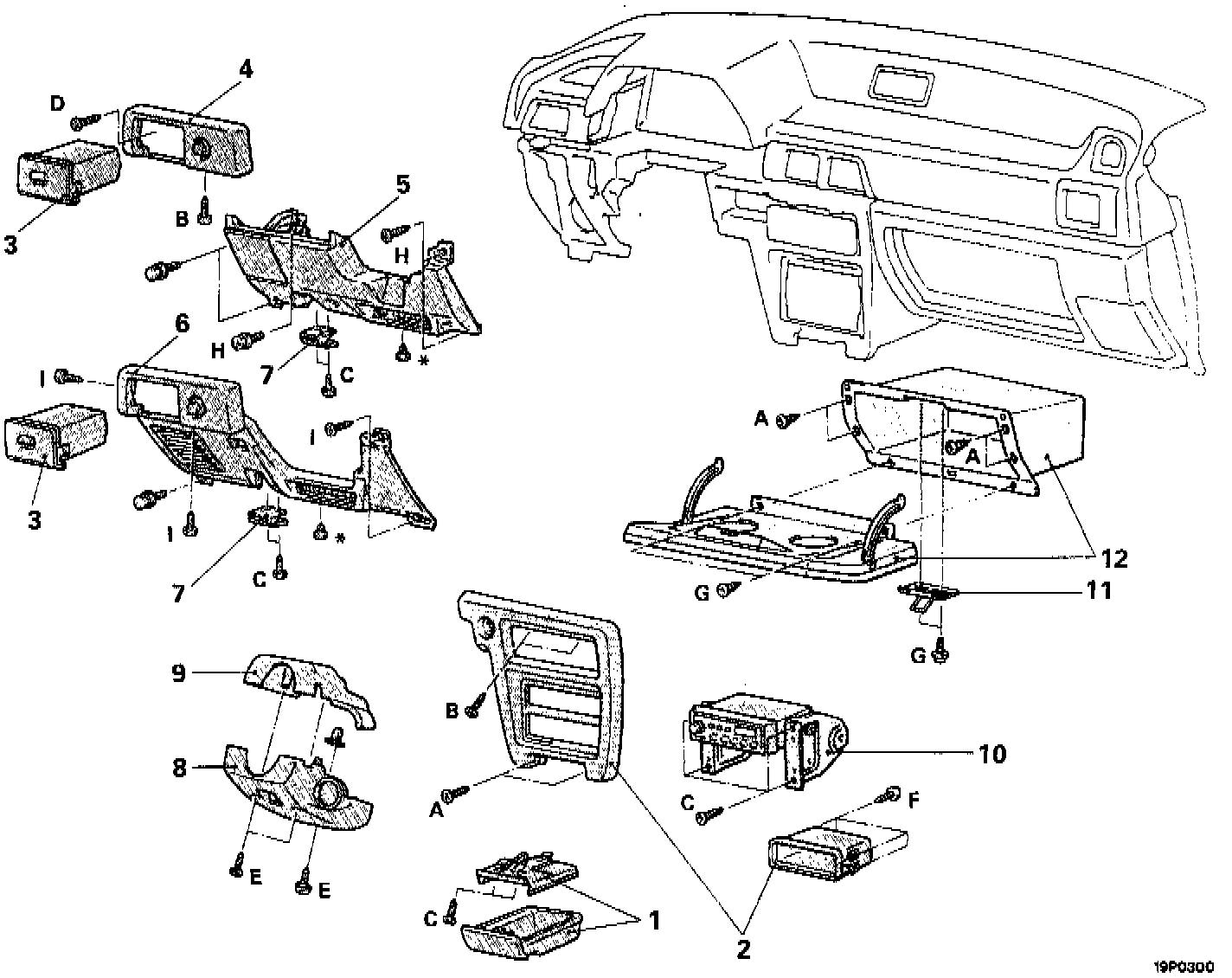

REMOVAL STEPS
1. Ashtray
2. Center panel
3. Sunglass pocket
4. Side panel assembly
5. Knee protector assembly (L.H.)
6. Lower panel assembly
7. Hood lock release handle
8. Column cover, lower
9. Column cover, upper
10. Radio
11. Striker
12. Glove box assembly

13. Instrument panel cover, lower
14. Heater control assembly installation screw
15. Meter bezel
16. Combination meter
17. Speedometer cable adapter
18. Combination meter wiring harness connector connections
19. Speaker garnish (R.H.)
20. Speaker (R.H.)
21. Side defroster grille
22. Clock or plug
23. Steering shaft mounting bolt and nut
24. Instrument panel mounting bolts
25. Instrument panel mounting bolts
26. Instrument panel assembly

NOTES:
1. Reverse the removal procedures to reinstall.
2. The * symbol indicates the trim clip.

SERVICE POINTS OF REMOVAL

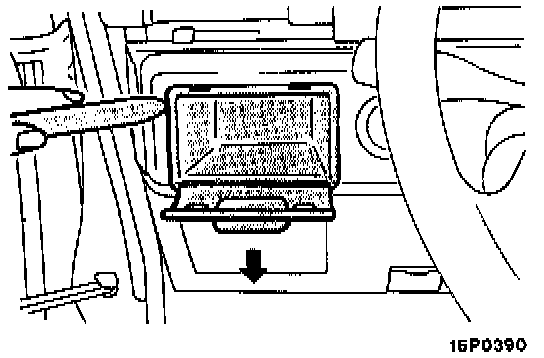

3. Removal Of Sunglass Pocket
Remove the sunglass pocket using a plastic trim tool.

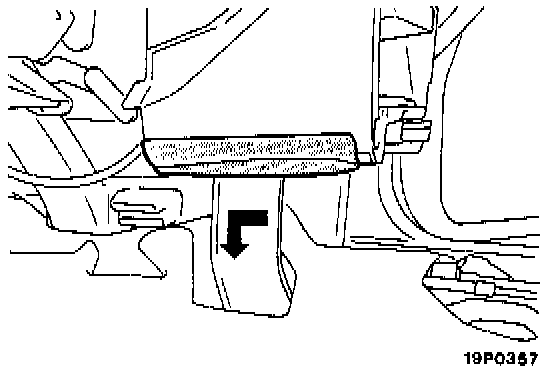

13. Removal Of Instrument Panel Cover, Lower
Remove the lower instrument cover moving it forward.

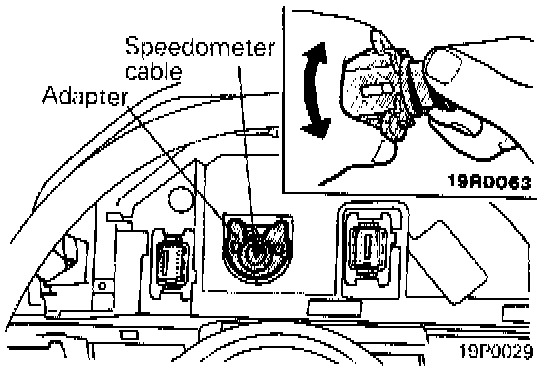

17. Removal Of Speedometer Cable Adapter
1. Disconnect the speedometer cable at the transaxle end of the cable.
2. Pull the speedometer cable slightly toward the vehicle interior, release the lock by turning the adapter to the left or right, and then remove the adapter.

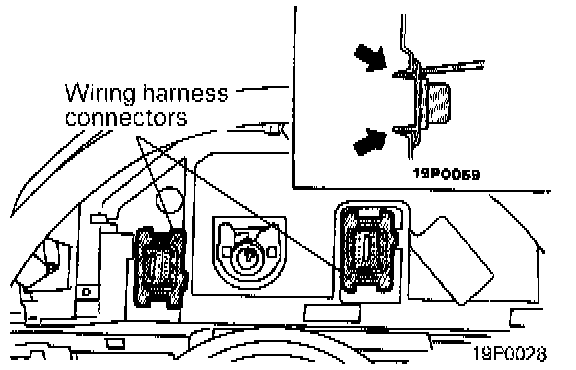

18. Disconnection Of Combination Meter Wiring Harness Connectors
Insert a flat-tip (-) screwdriver and open the tab of the connector, and then remove the harness connectors.

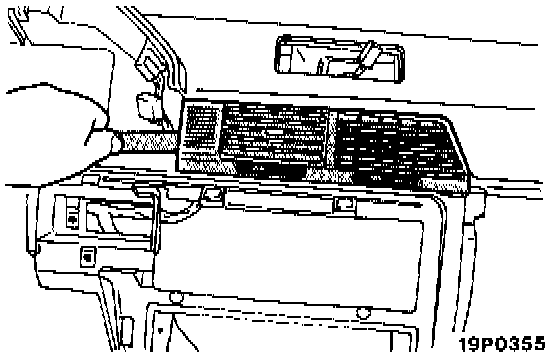

19. Removal Of Speaker Garnish (R.H.)
Remove the speaker garnish (R.H.) using a plastic trim tool.

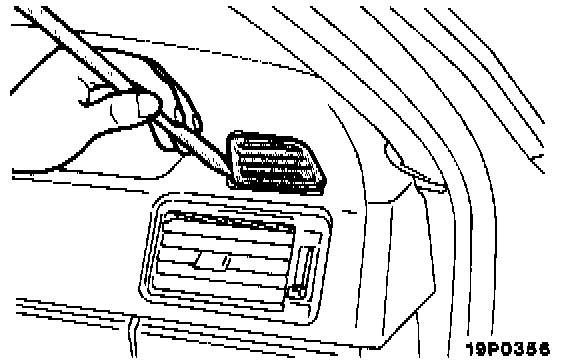

21. Removal Of Side Defroster Grilles
Remove the side defroster grilles using a plastic trim tool.

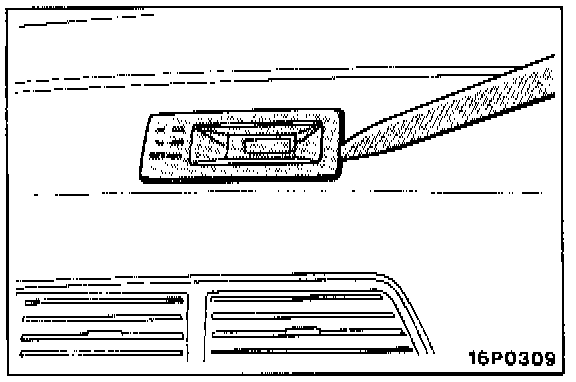

22. Removal Of Clock Or Plug
Using a plastic trim tool, remove the clock (or the plug); for the clock, disconnect the wiring harness connector.

DISASSEMBLY AND REASSEMBLY

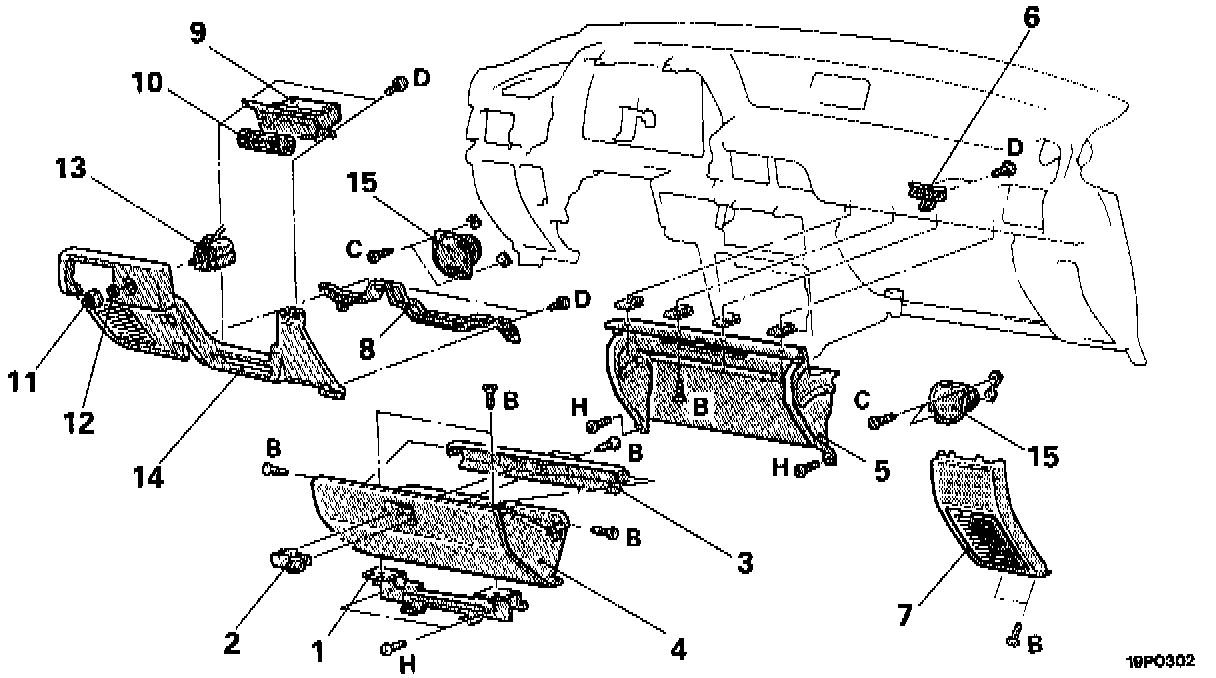

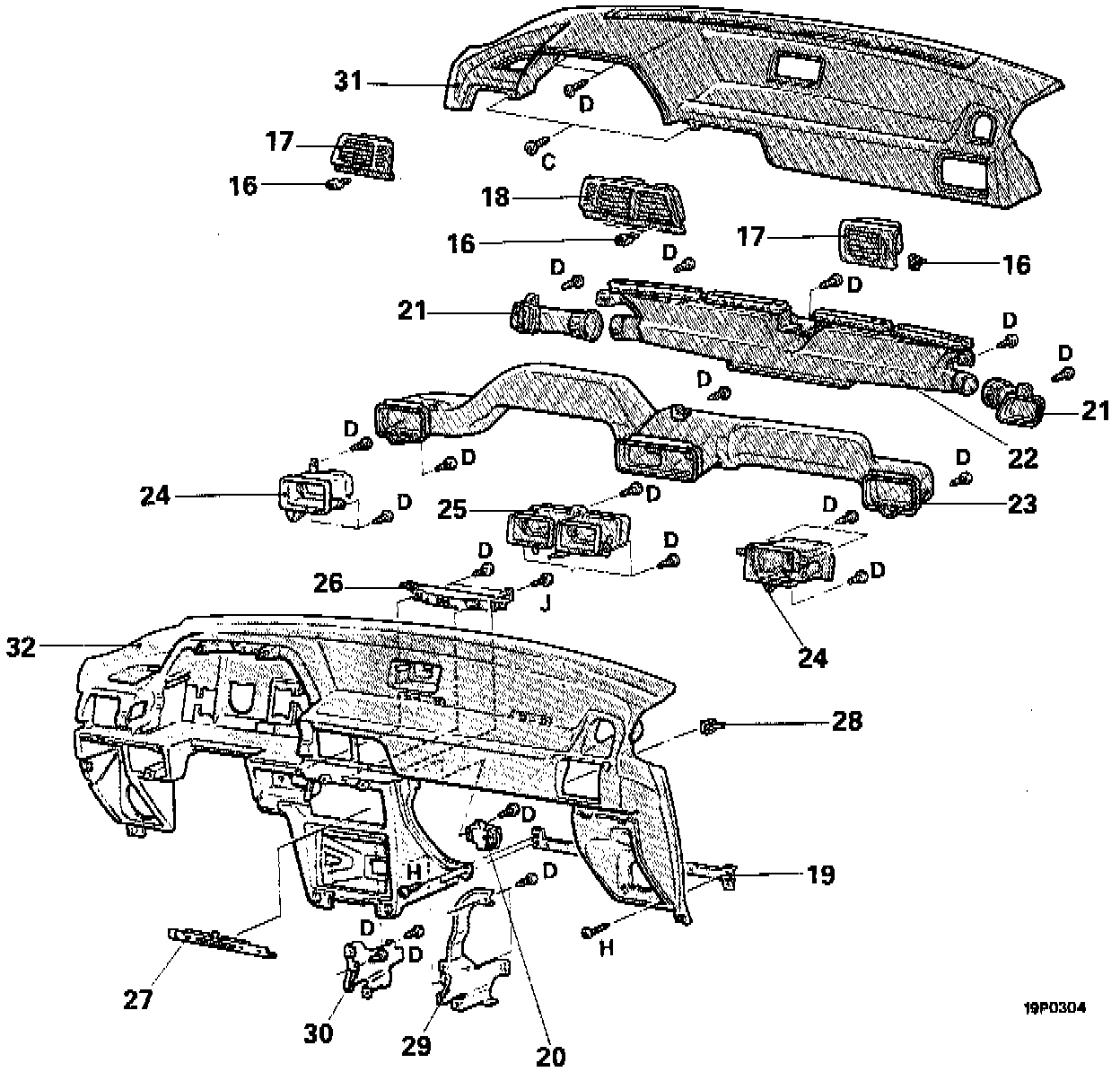

Disassembly steps
1. Hinge plate
2. Glove box lock
3. Glove box cover
4. Glove box
5. Cross pipe cover
6. Glove box striker
7. Corner panel
8. Lower frame
9. Holder
10. Lap shower grille
11. Knob
12. Ring nut
13. Rheostat
14. Lower panel
15. Speaker

16. Knob
17. Side air outlet
18. Center air outlet
19. Glove box frame
20. Buzzer
21. Side defroster duct
22. Defroster nozzle
23. Distribution duct
24. Side duct
25. Center duct
26. Center frame
27. Center plate
28. Stopper
29. Instrument panel reinforcement (R.H.)
30. Instrument panel reinforcement (L.H.)
31. Instrument panel pad
32. Instrument panel

NOTE: Reverse the disassembly procedures to reassemble


SERVICE POINTS OF DISASSEMBLY

17. Removal Of Side Air Outlet
Remove the side air outlet using a plastic trim tool.

18. Removal Of Center Air Outlet
Remove the center air outlet using a plastic trim tool.

31. Removal Of Instrument Panel Pad
1. Remove the instrument panel wiring harness from the instrument panel.

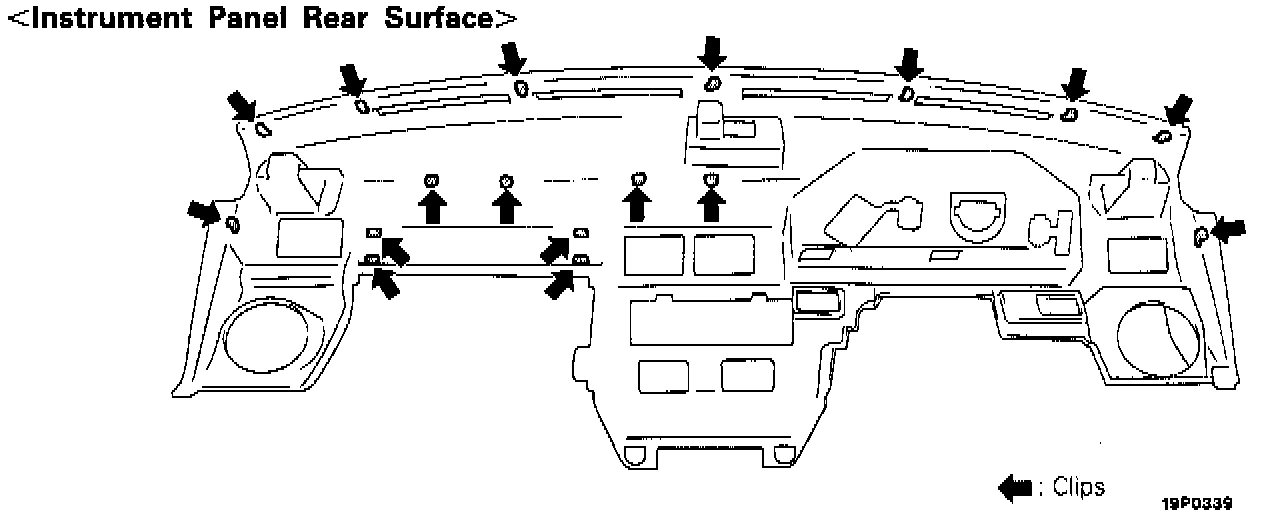

2. Remove the mounting screws and nuts, and raise and twist the clips to remove the instrument panel from the instrument pad.

SERVICE POINT OF REASSEMBLY

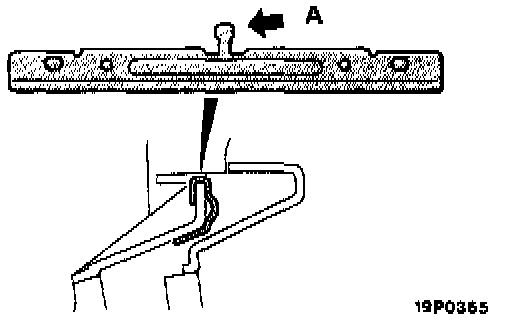

27. Installation Of Center Plate
Bend the section marked A of the center plate and secure the center plate onto the instrument panel.
