Home >> Plymouth >> 1992 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lights

Without Daytime Running Lights

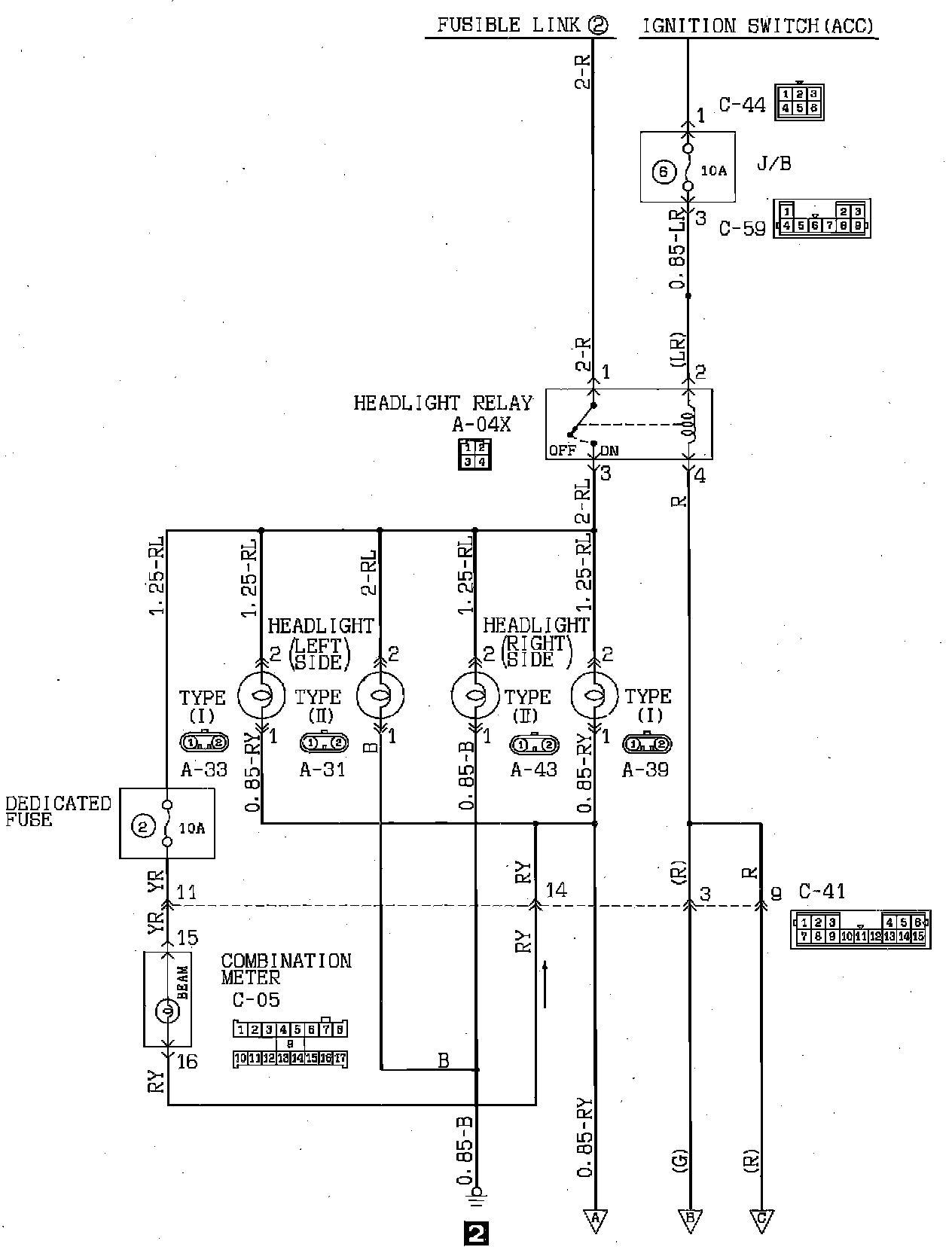

Headlights (USA):

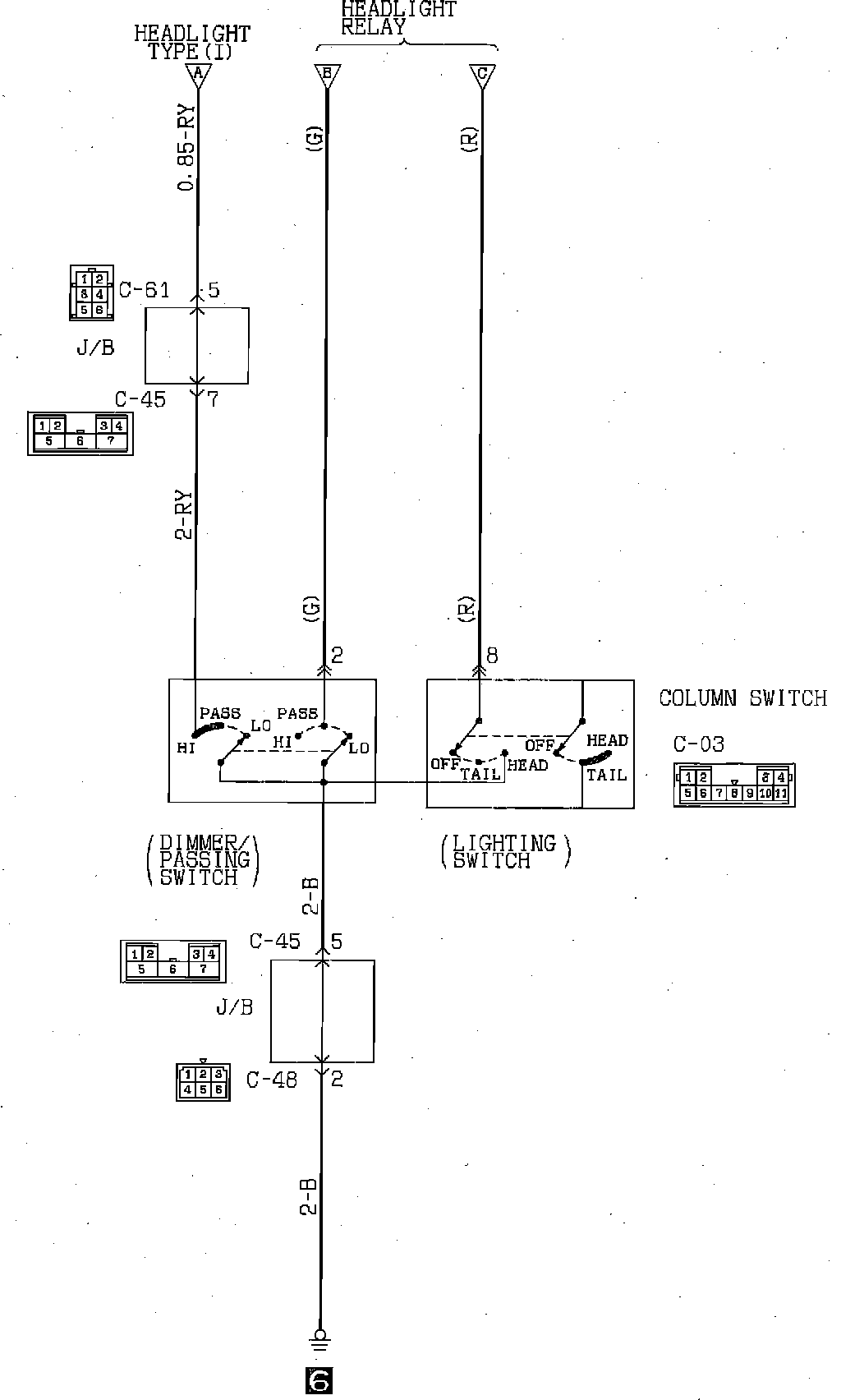

Headlights (USA):
