Fuel Pump: Service and Repair

High Pressure Elecric Fuel Pump:

REMOVAL
Fuel tank removal is required to service the fuel pump. For these procedures SEE FUEL TANK REPLACEMENT.

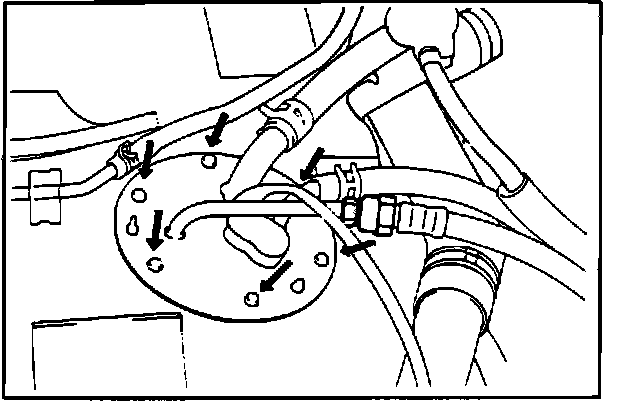

Fuel Pump Mounting Screws:

After fuel tank removal, remove the fuel pump installation screws, then remove the pump from the fuel tank.

INSTALLATION

Fuel Pump Positioning Projections:

1. Install the gasket, taking care to properly align it with the three positioning projections.
2. As the fuel pump is re-installed, align the three positioning projections with the holes in the fuel pump. Care should be taken at this time to insure that the gasket is properly seated.

Torque value:
2 - 3 ft.lbs. (1.4 - 2.2 Nm)

3. Install the fuel tank, SEE FUEL TANK REPLACEMENT.
