Electrical Diagrams

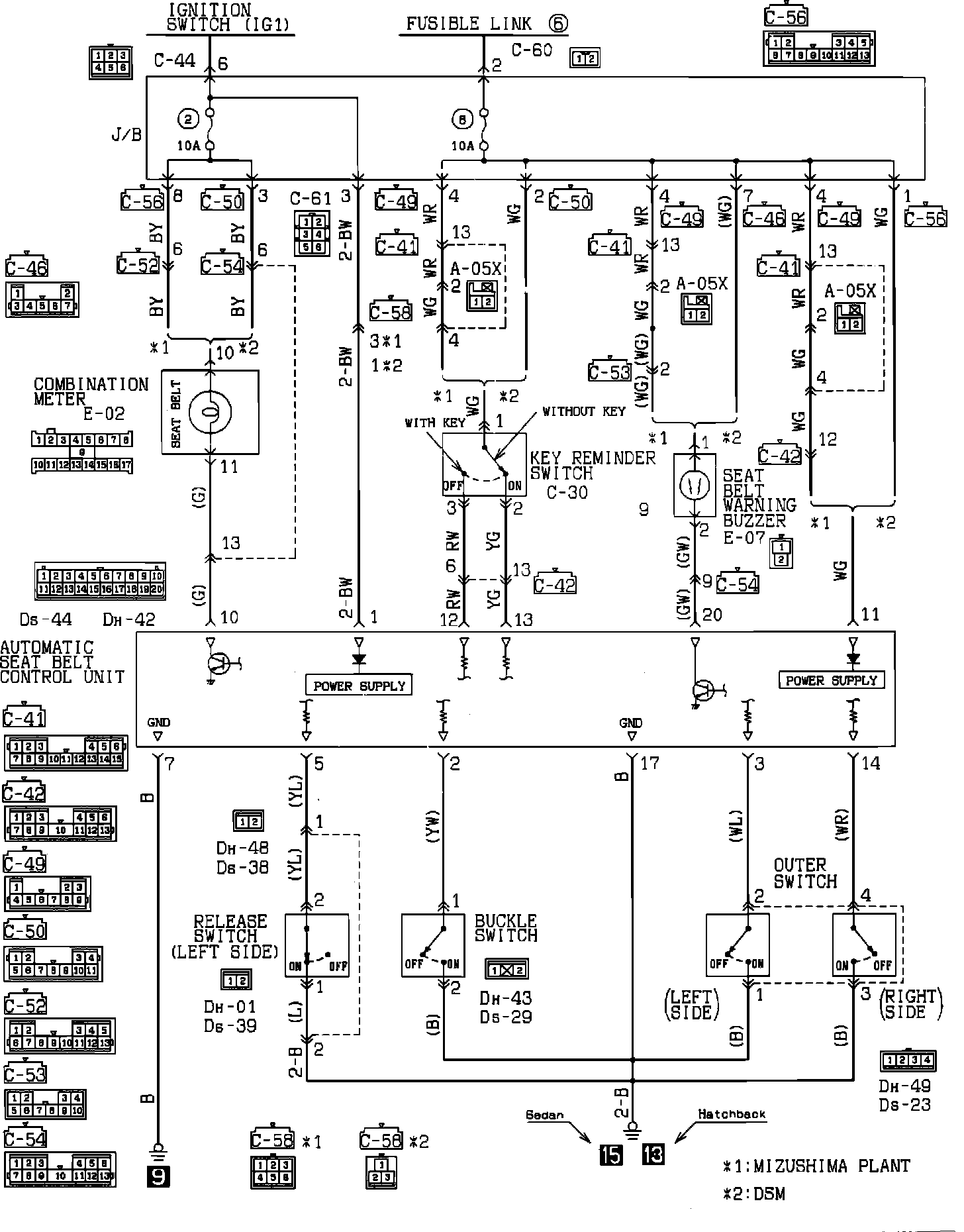

Automatic Seat Belt Circuit-US Vehicles (part 1 Of 2):

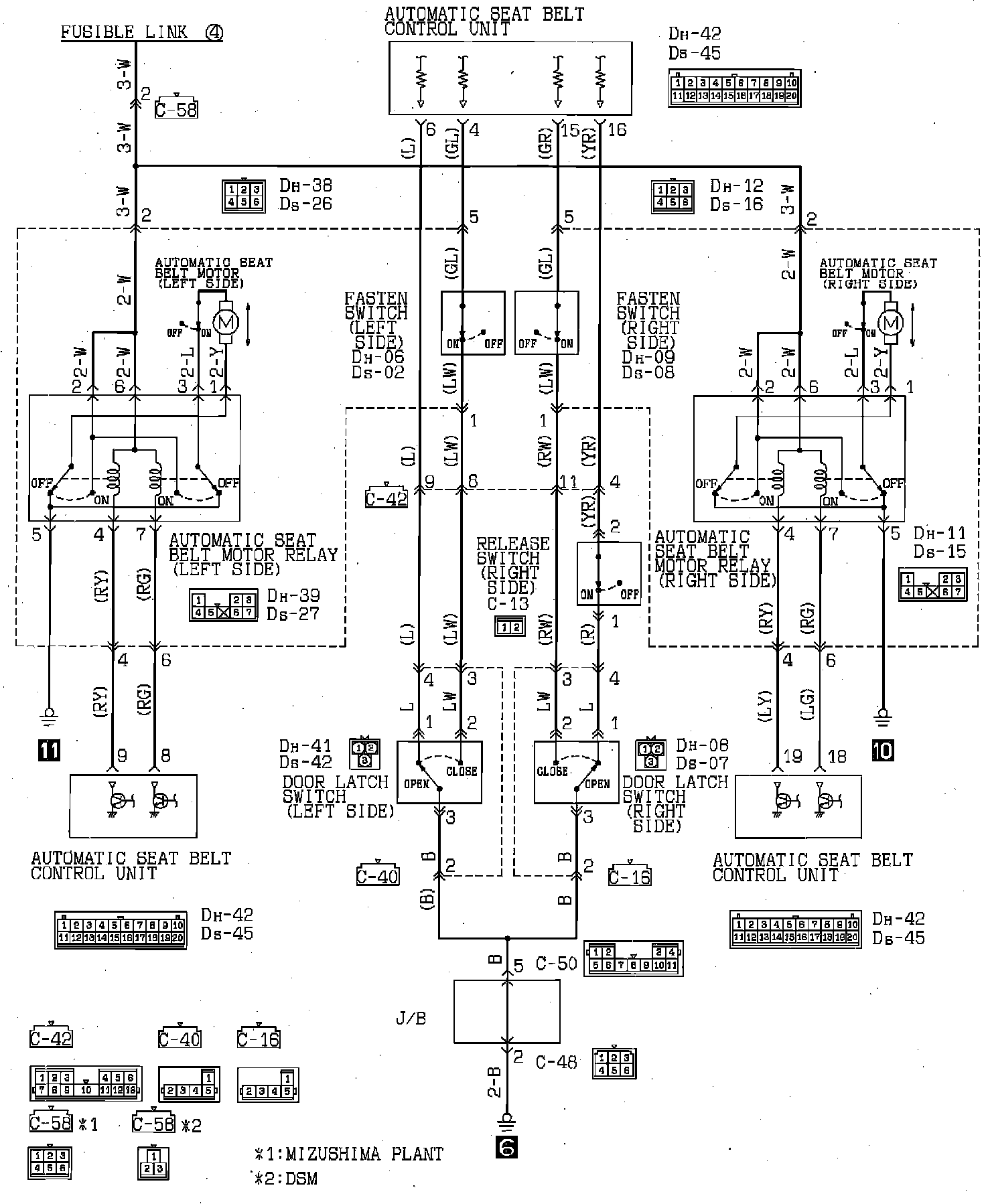

Automatic Seatbelt Circuit-US Vehicles (part 2 Of 2):
Automatic Seat Belt (USA):
Automatic Seat Belt (USA):
