Cruise Control - Troubleshooting Chart Correction
NO.: 14-02-92GROUP: Fuel
DATE: Feb. 10, 1992
SUBJECT:
Service Manual Revision - Troubleshooting Chart Correction
MODELS:
1991-1992 (BD) Laser
DISCUSSION:
The Auto-Cruise Control System - Troubleshooting Chart in the 1991 and 1992 Laser/Talon Service Manuals is incorrect. The chart is shown on the following pages.
Manual Part No. Page No.
1991 Laser/Talon 81-270-1550 (Vol. 1) 14-118 (Step 8)
Service Manual
1992 Laser/Talon 81-270-2500 (Vol. 1) 14-130 (Step 8)
Service Manual

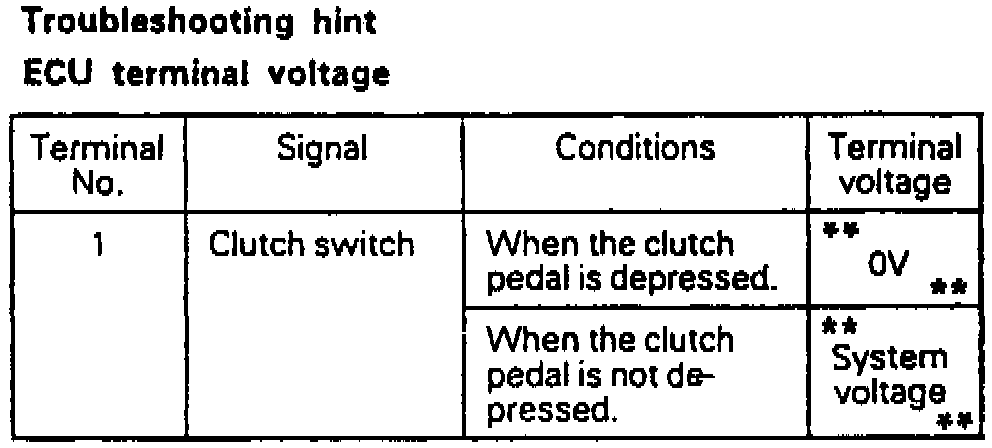

The corrections are printed in red and highlighted with asterisks (**) in the illustration and should be noted in the listed manuals.
POLICY: Information only.
