Laser FWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Computers and Control Systems
>>
Federal Models
Federal Models

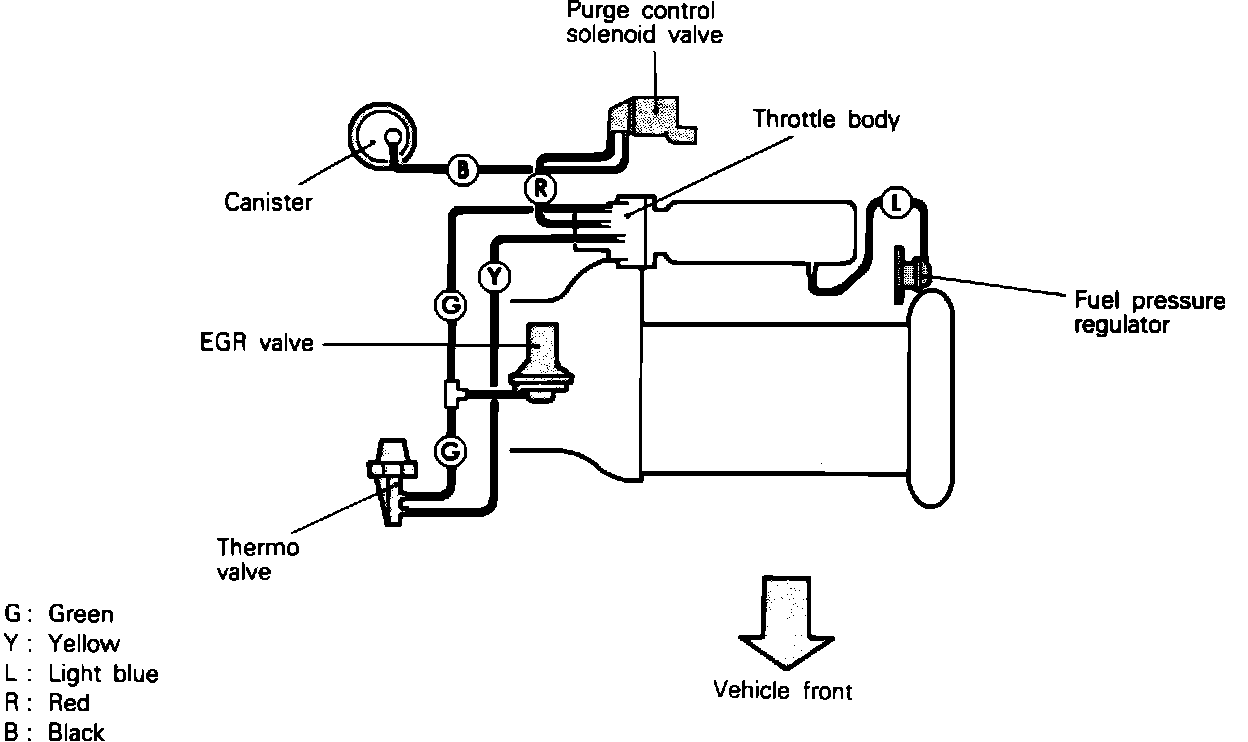

Vacuum Hose Diagram:
