Dimmer Switch

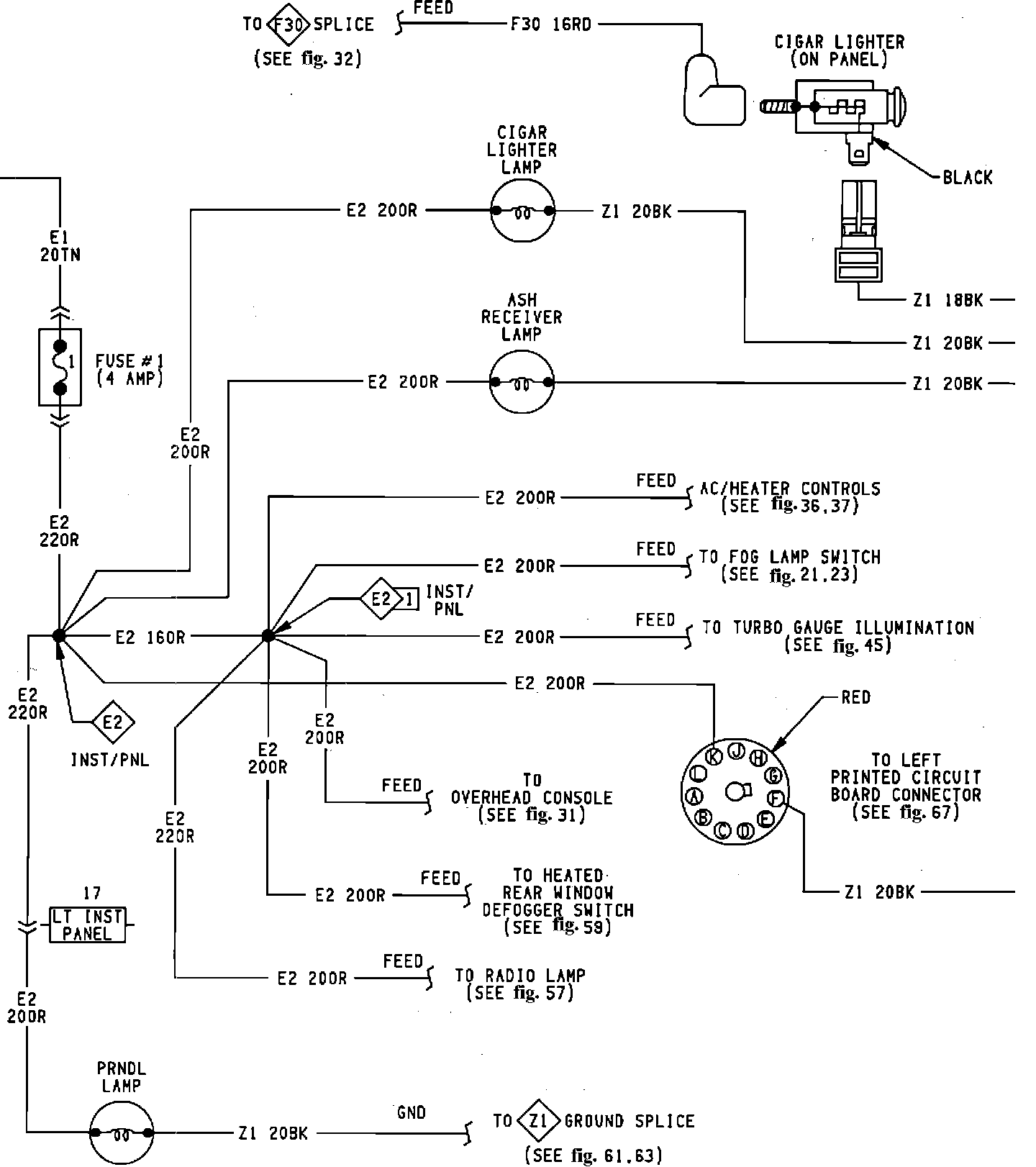

Headlamp Switch Controlled Interior Lighting:

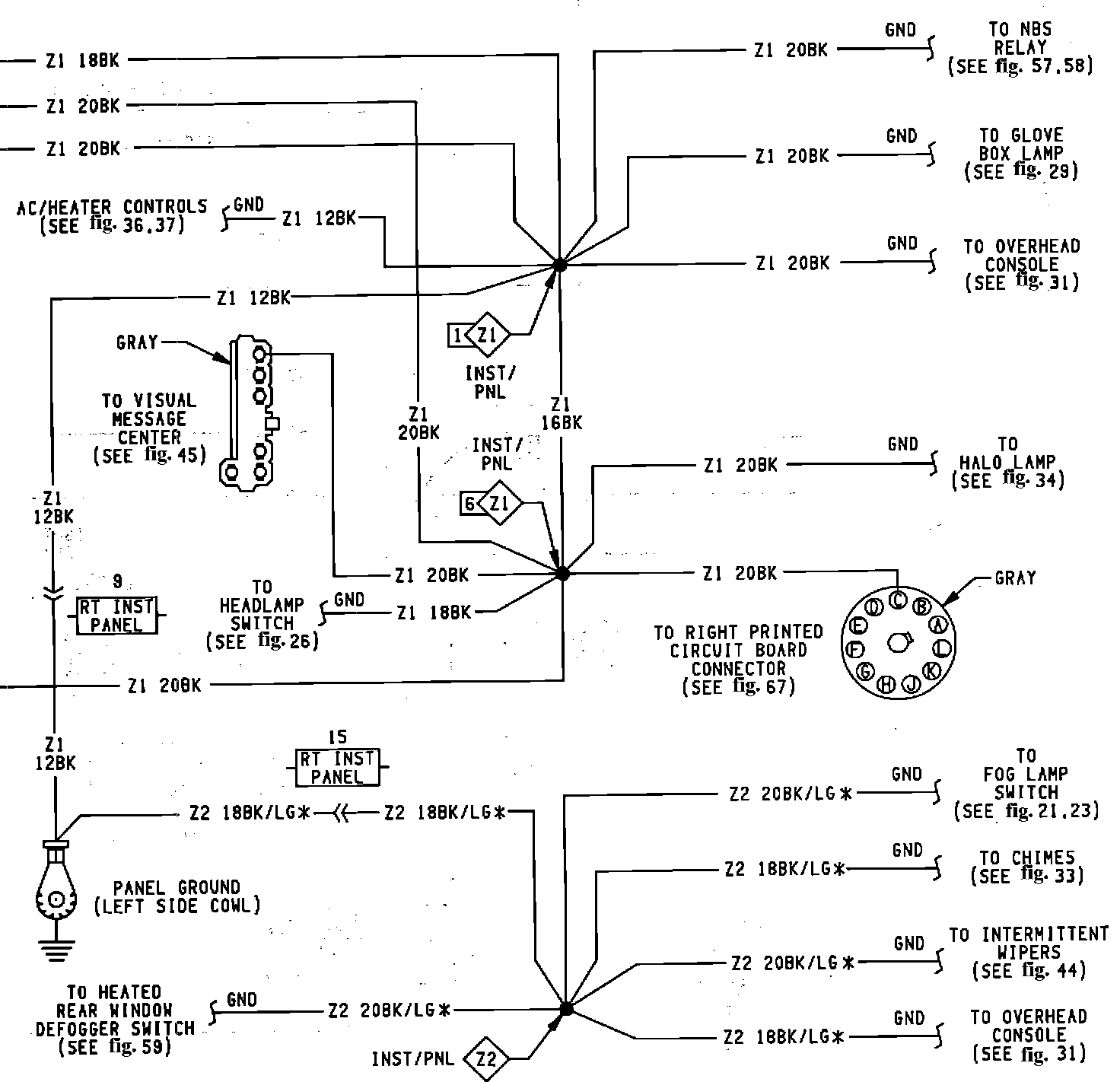

Headlamp Switch Controlled Interior Lighting:
