Without Daytime Running Lights

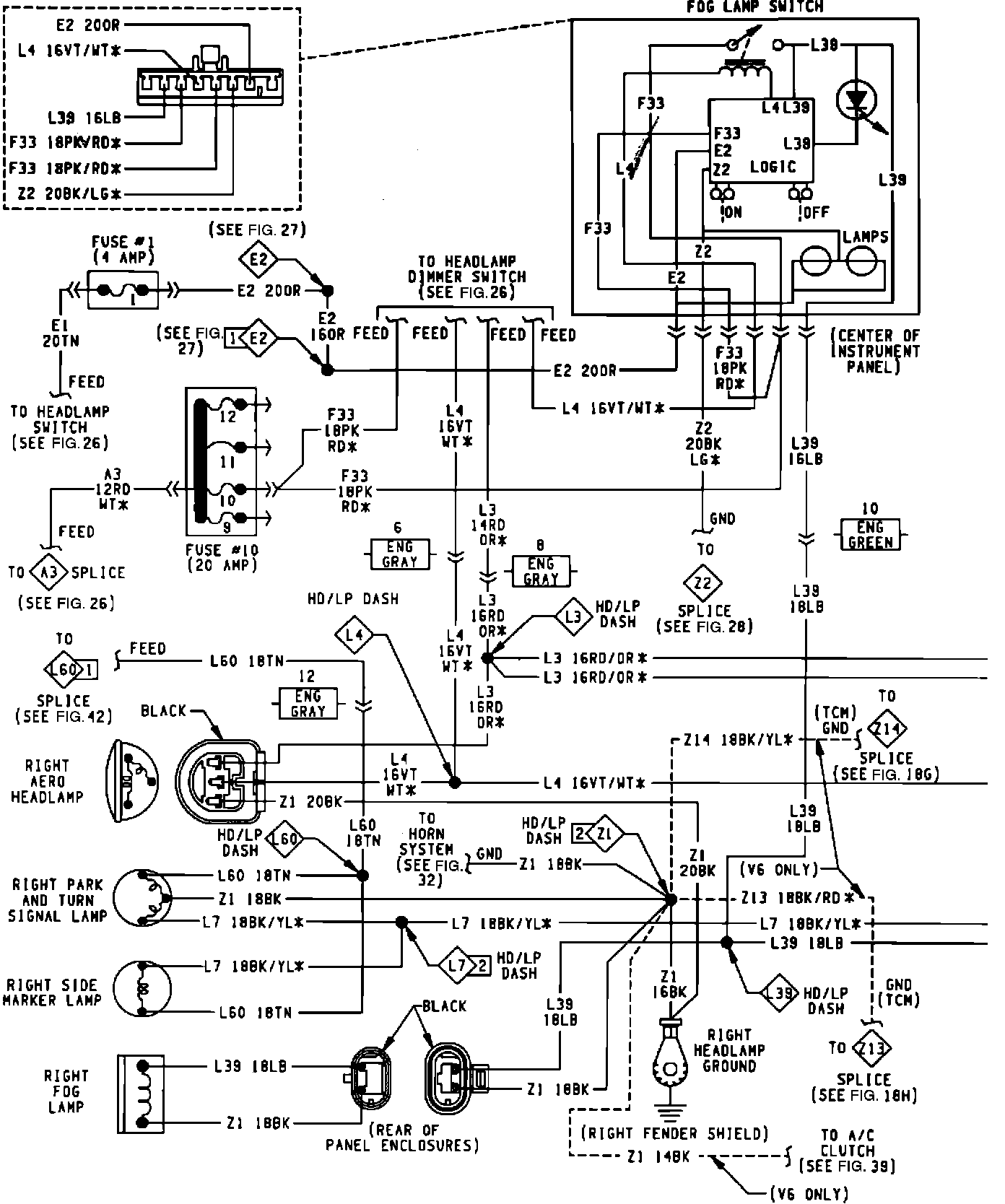

Front End Lighting Without Daytime Running Lamps:



Front End Lighting:
