Home >> Plymouth >> 1992 >> Sundance Duster L4-153 2.5L VIN K FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Marker Lamp

Marker Lamp

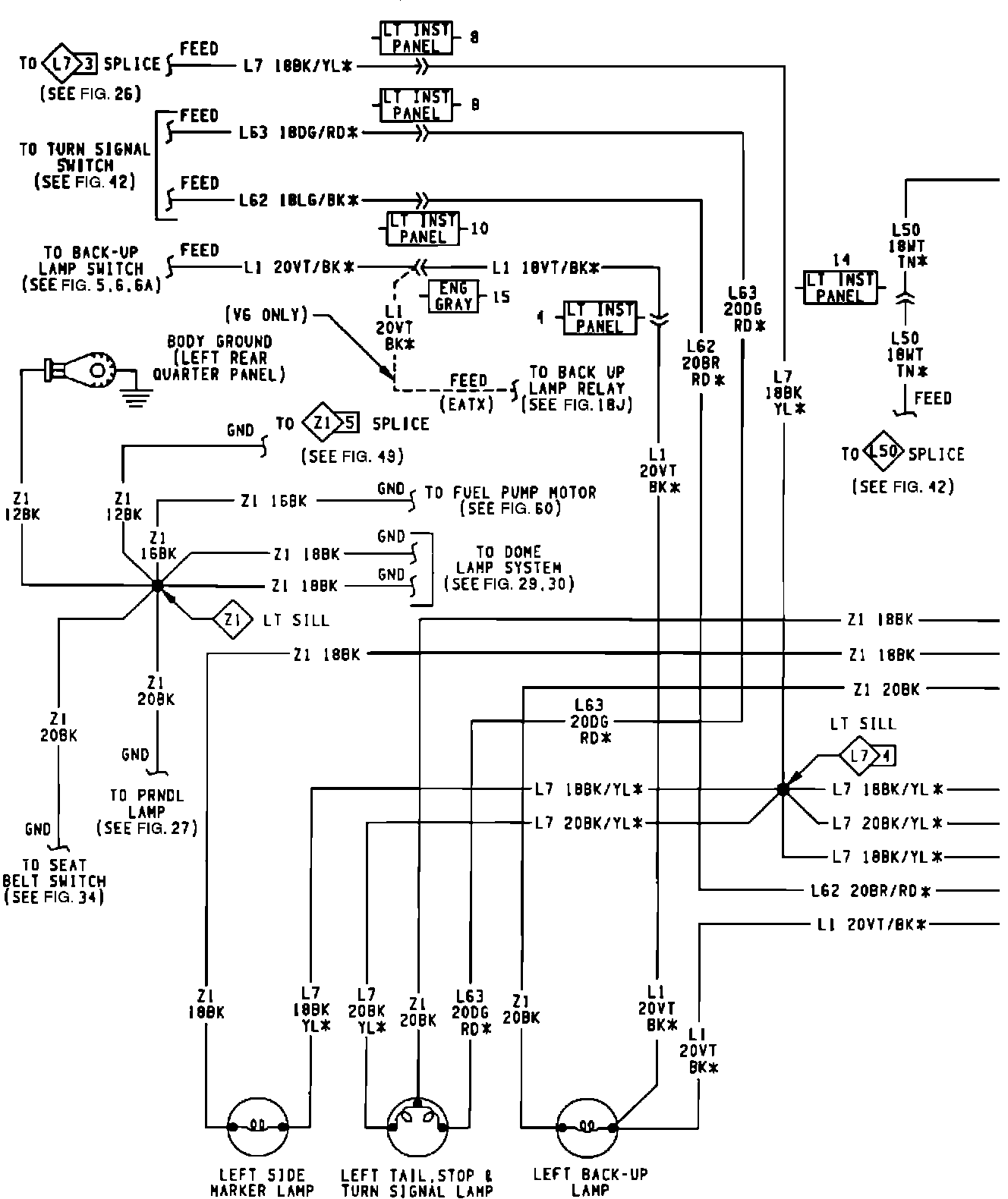

Rear Lighting Except Convertible:

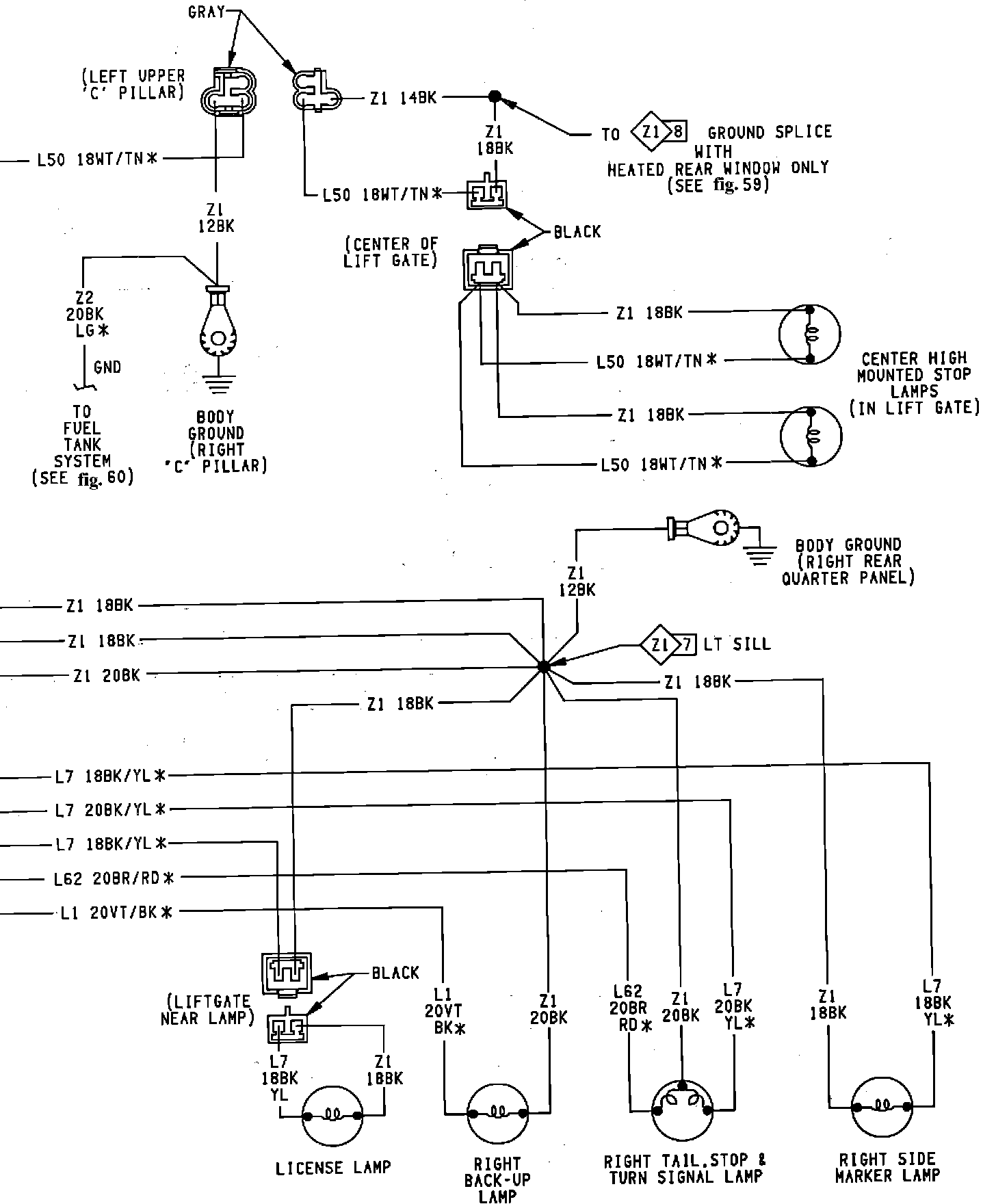

Rear Lighting Except Convertible:
