Home >> Plymouth >> 1992 >> Sundance L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> 4 Door

4 Door

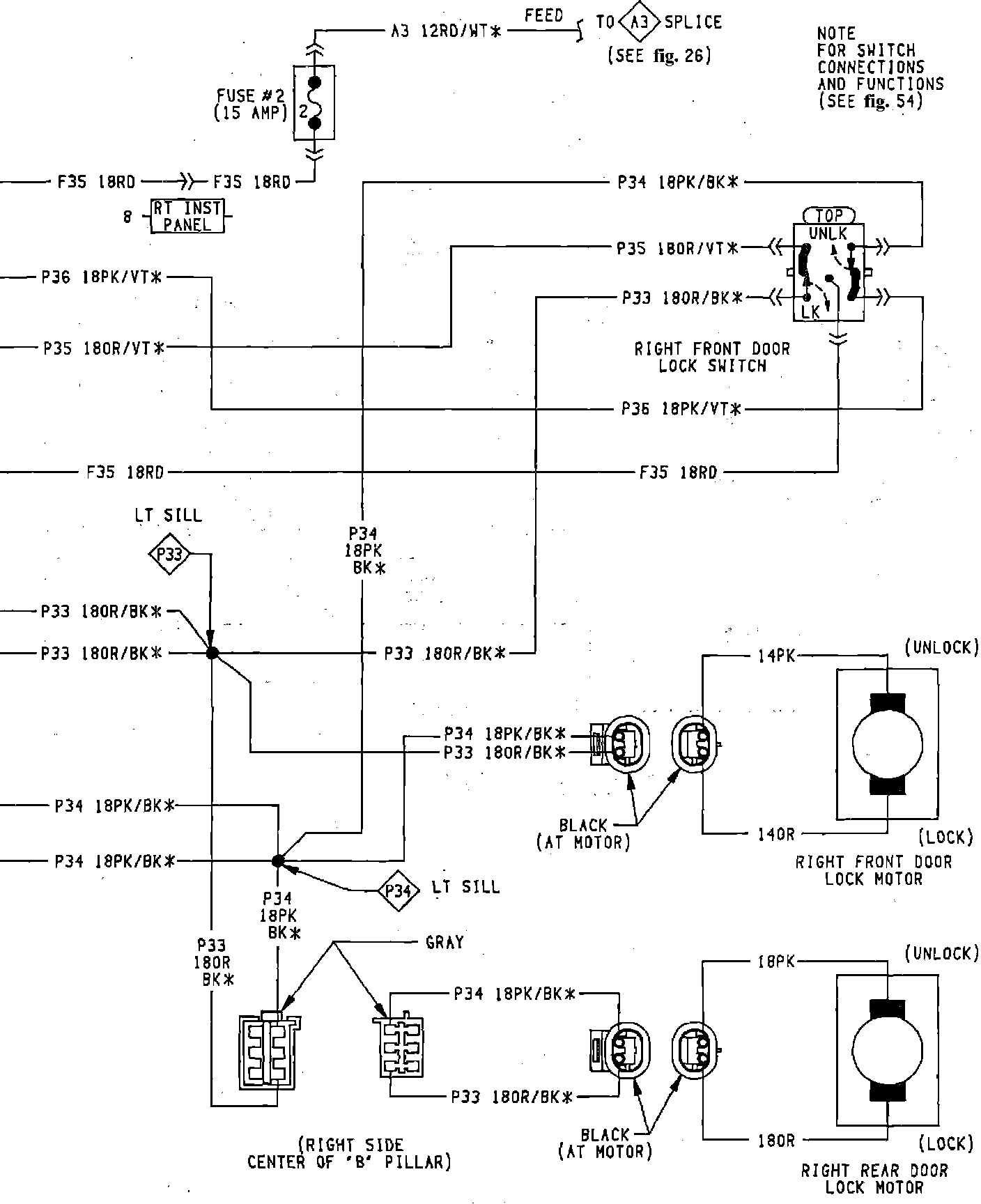

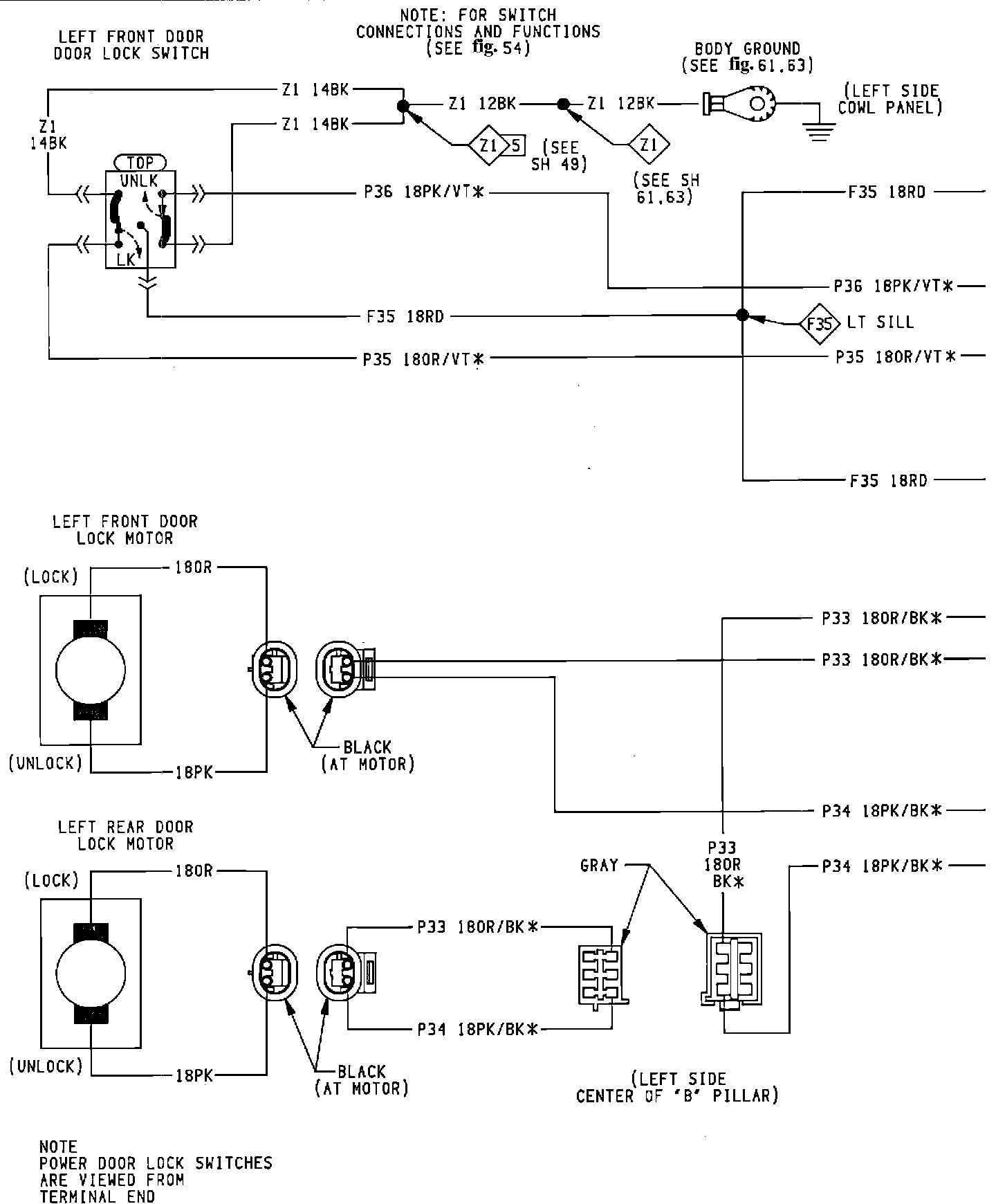

4 Door Power Lock System:

4 Door Power Lock System:
