NF-3A Checking Fuel Pressure

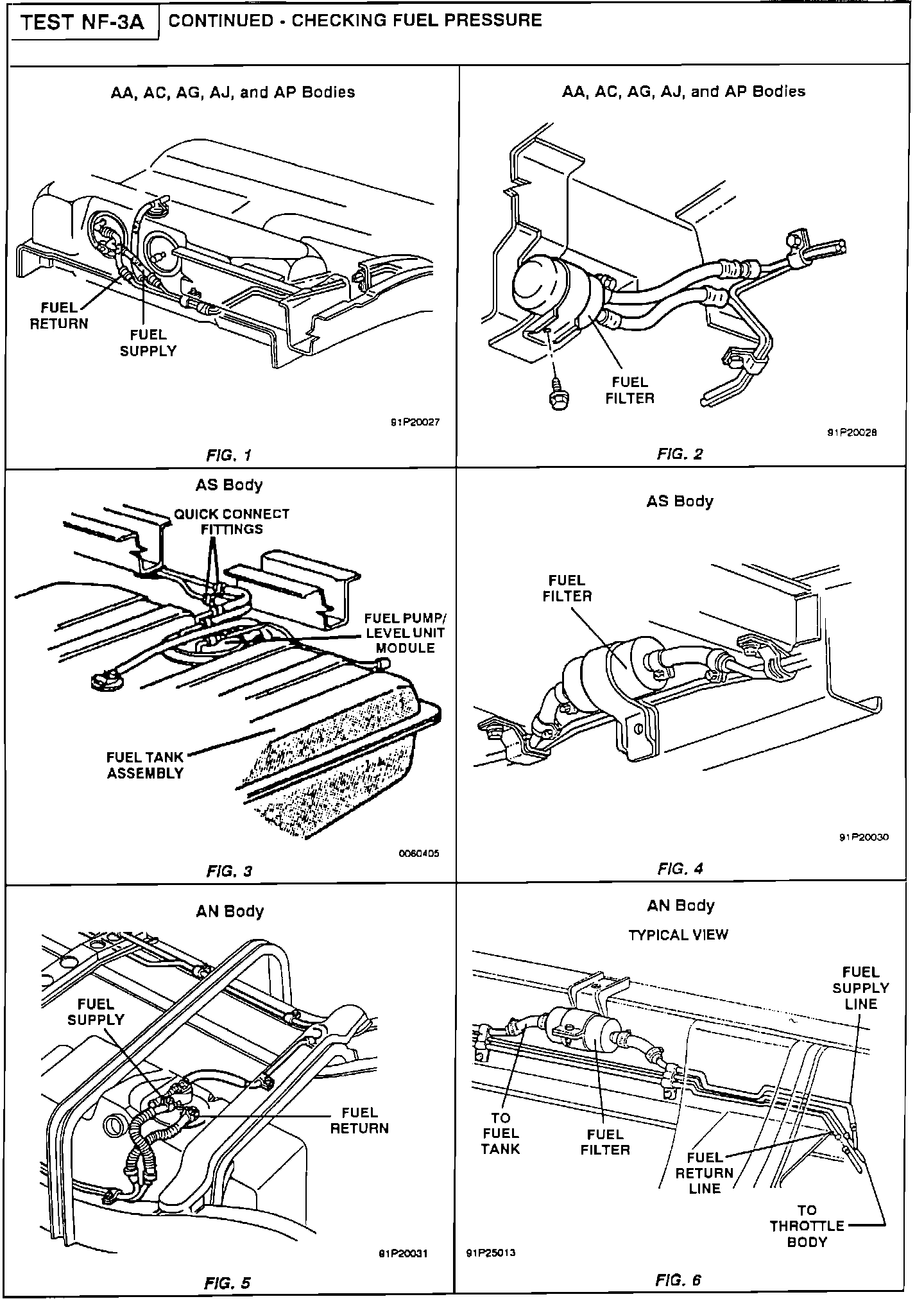

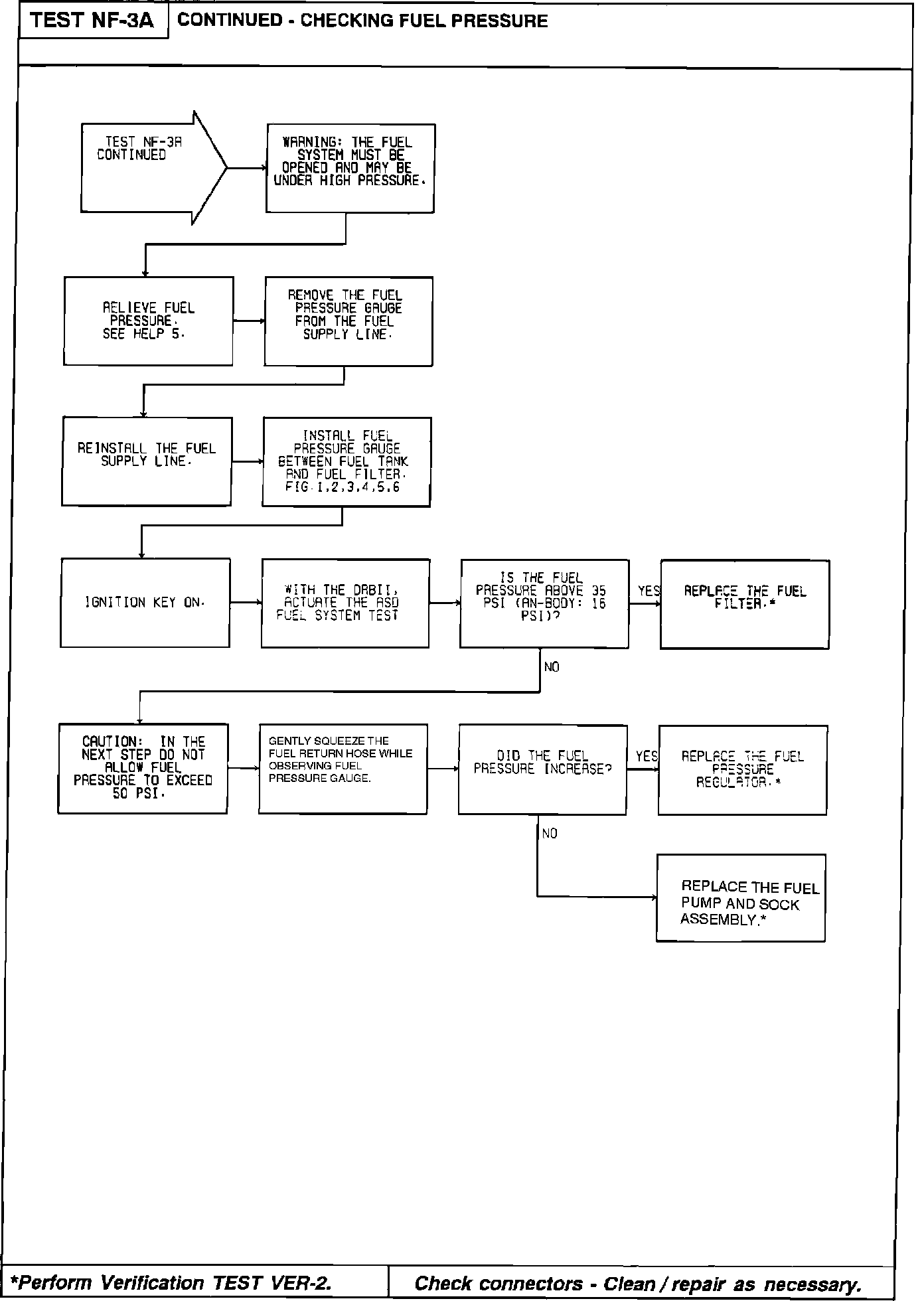

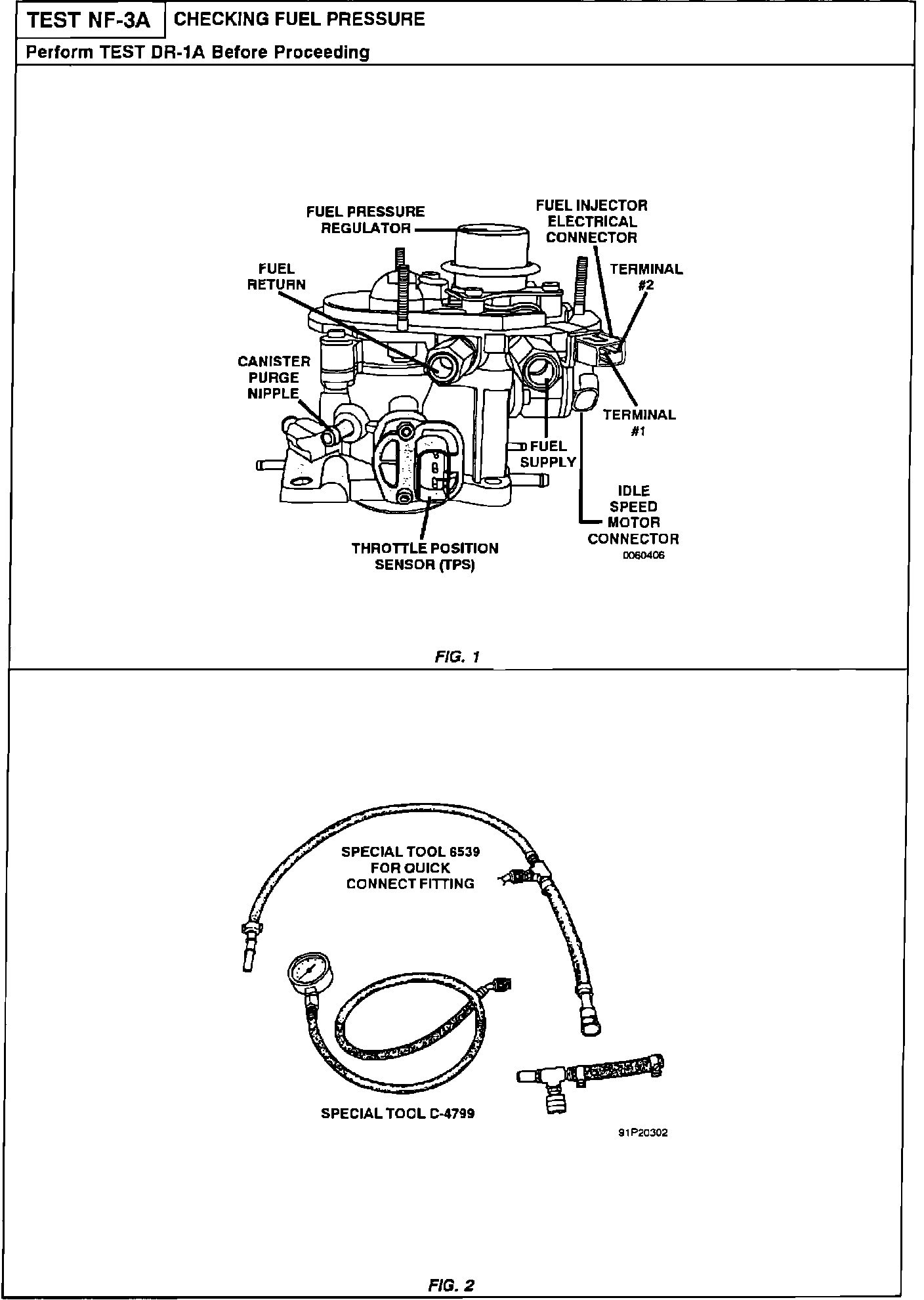

Test NF-3A Checking Fuel Pressure:



Test NF-3A Checking Fuel Pressure:



Test NF-3A Checking Fuel Pressure:



Test NF-3A Checking Fuel Pressure:
