Home >> Plymouth >> 1992 >> Sundance L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Exterior Lighting Module >> With Daytime Running Lights

With Daytime Running Lights

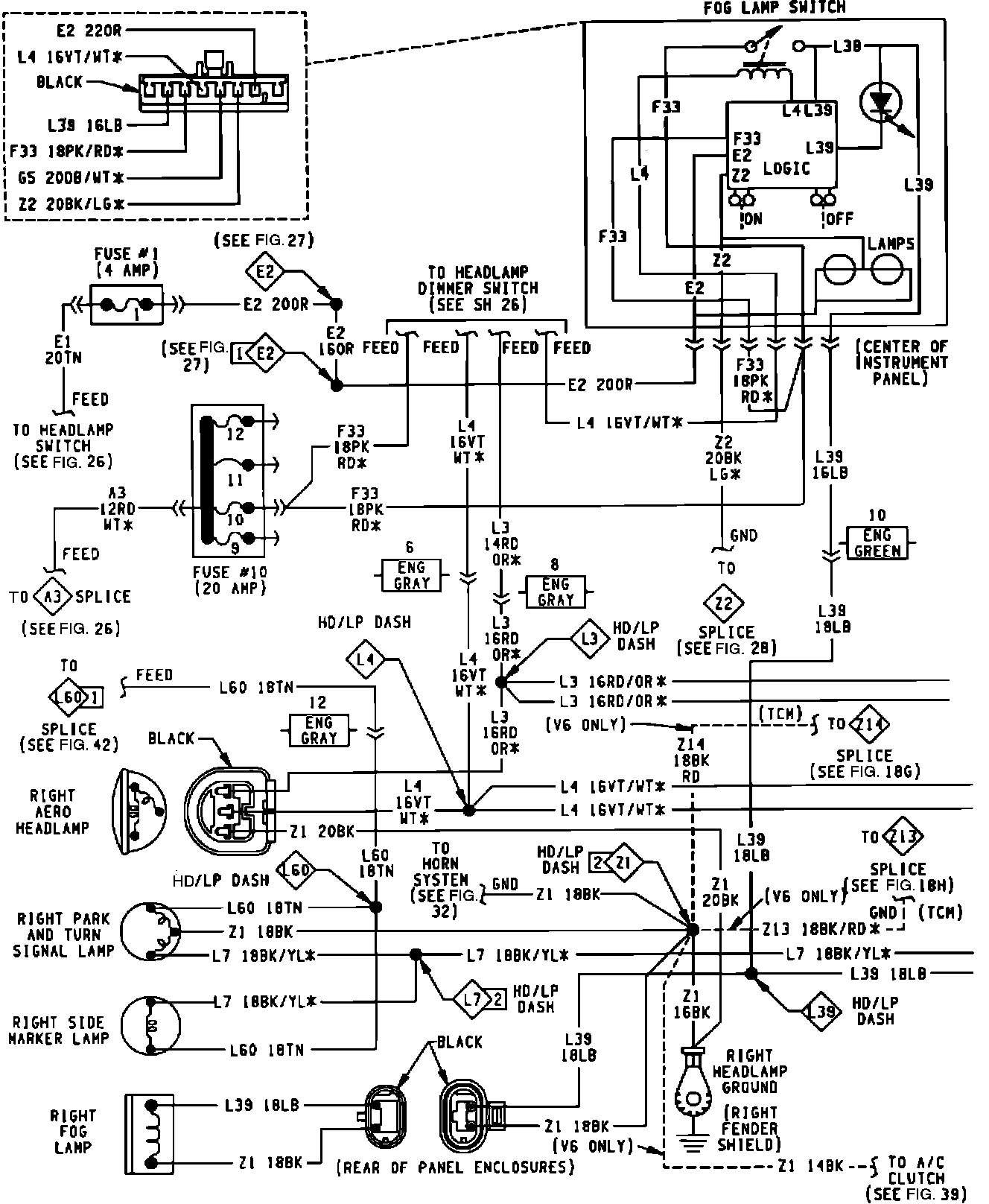

Front End Lighting With Daytime Running Lamps:
