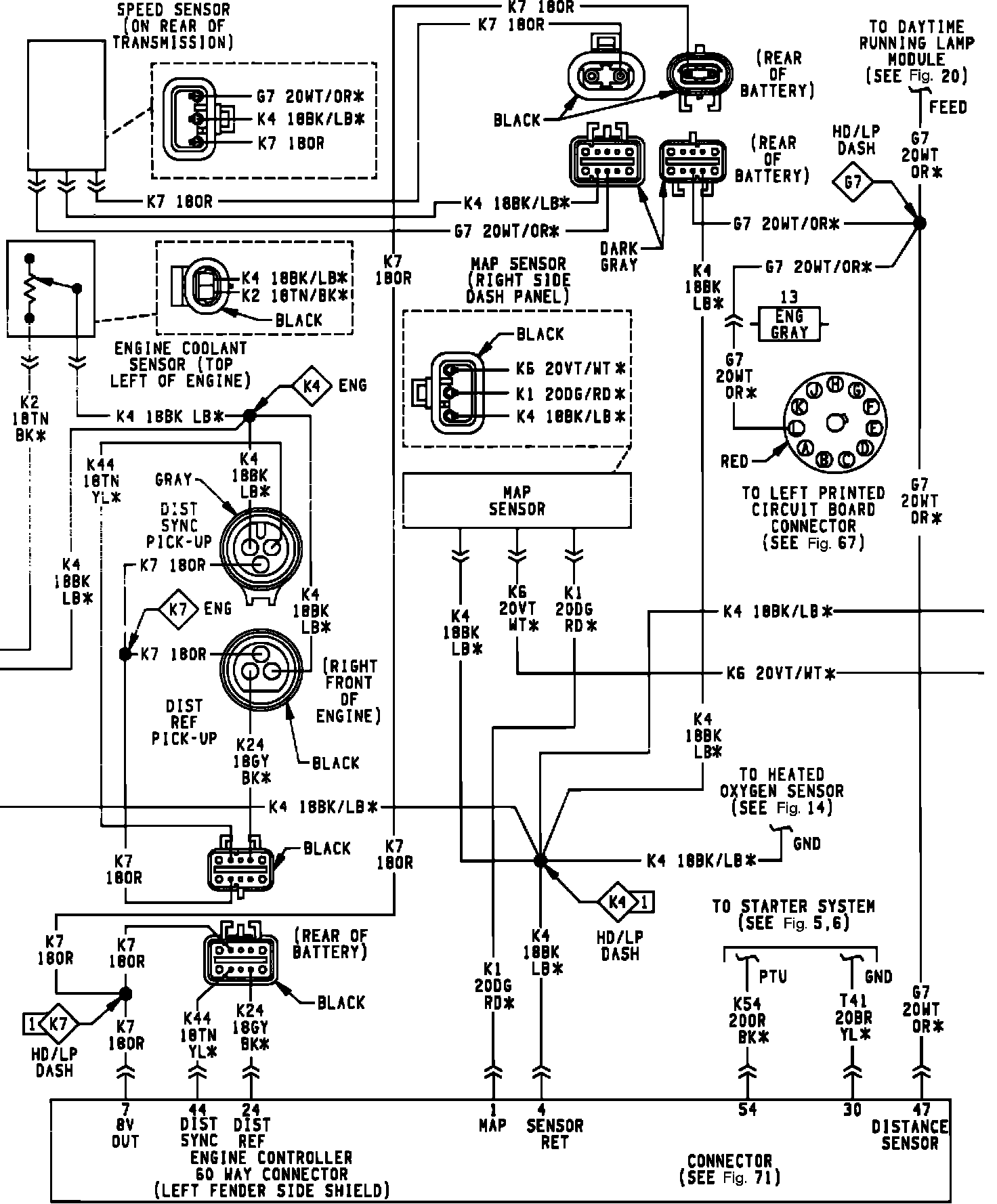

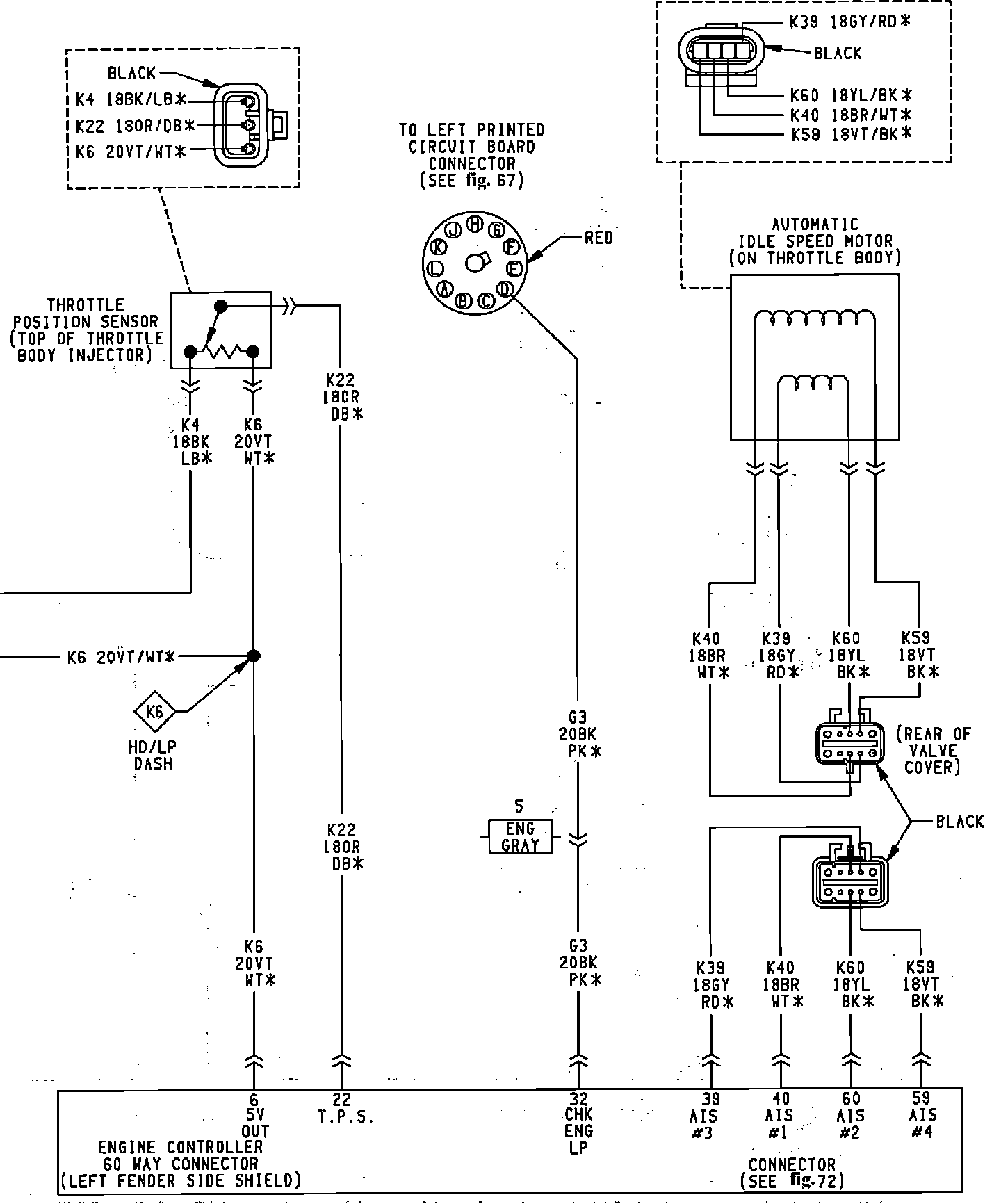

Fuel Injection And Ignition System Wiring Diagram (4 Of 5):

Fuel Injection And Ignition System Wiring Diagram (4 Of 5):

Electronic Fuel Injection System:
