Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1993
>>
Colt L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
With Automatic Transmission
With Automatic Transmission

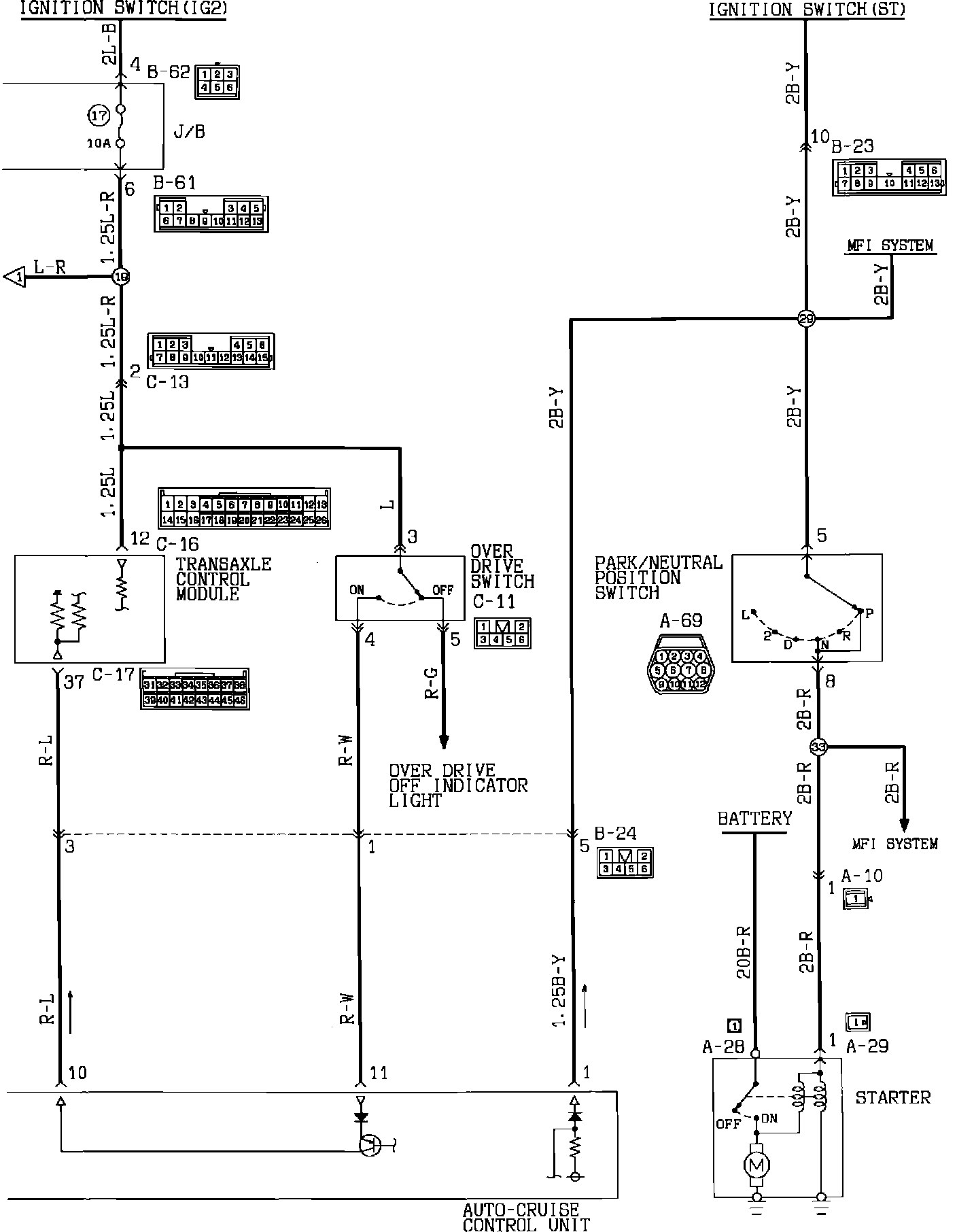

Auto-cruise Control Circuit:

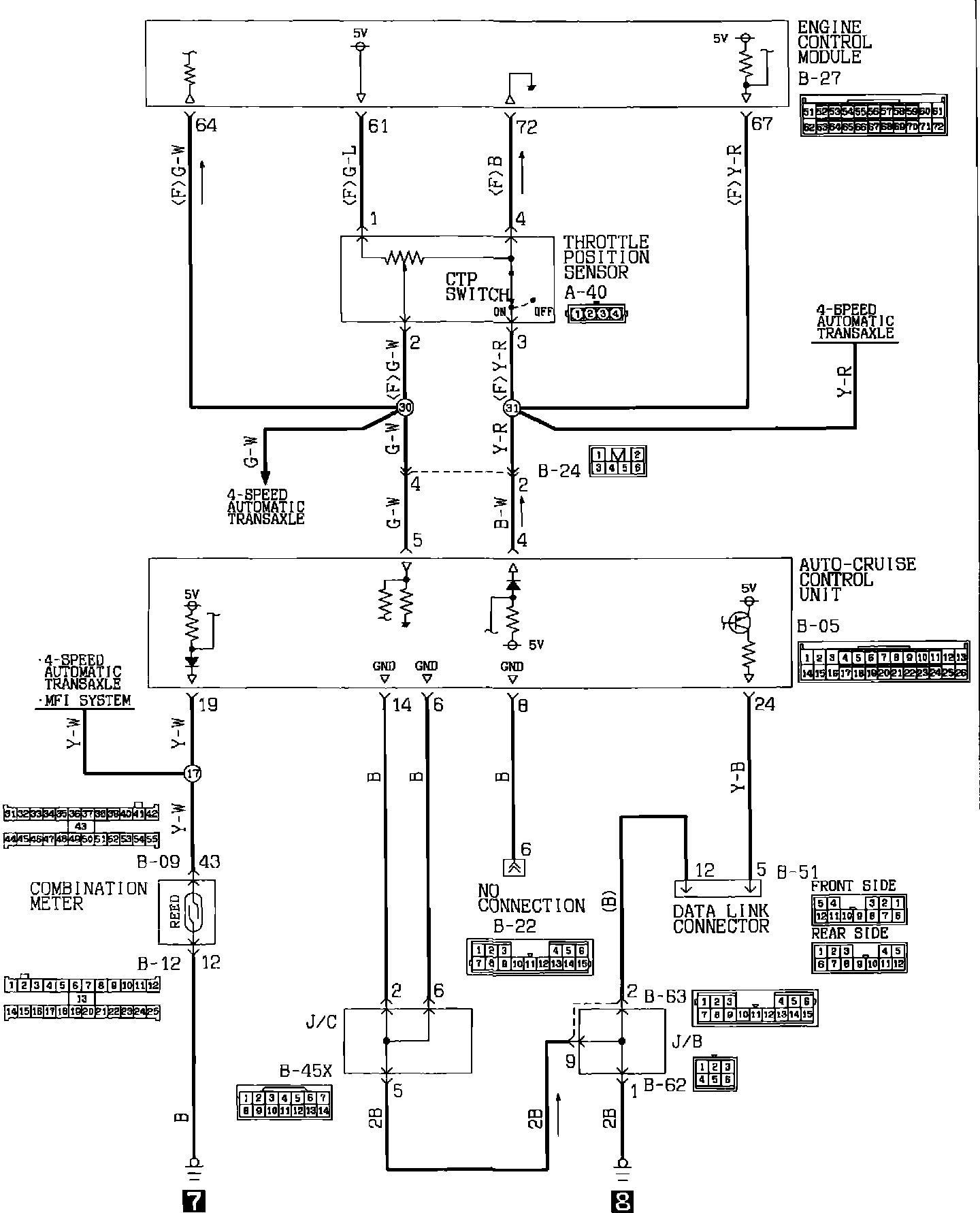

Auto-cruise Control Circuit:

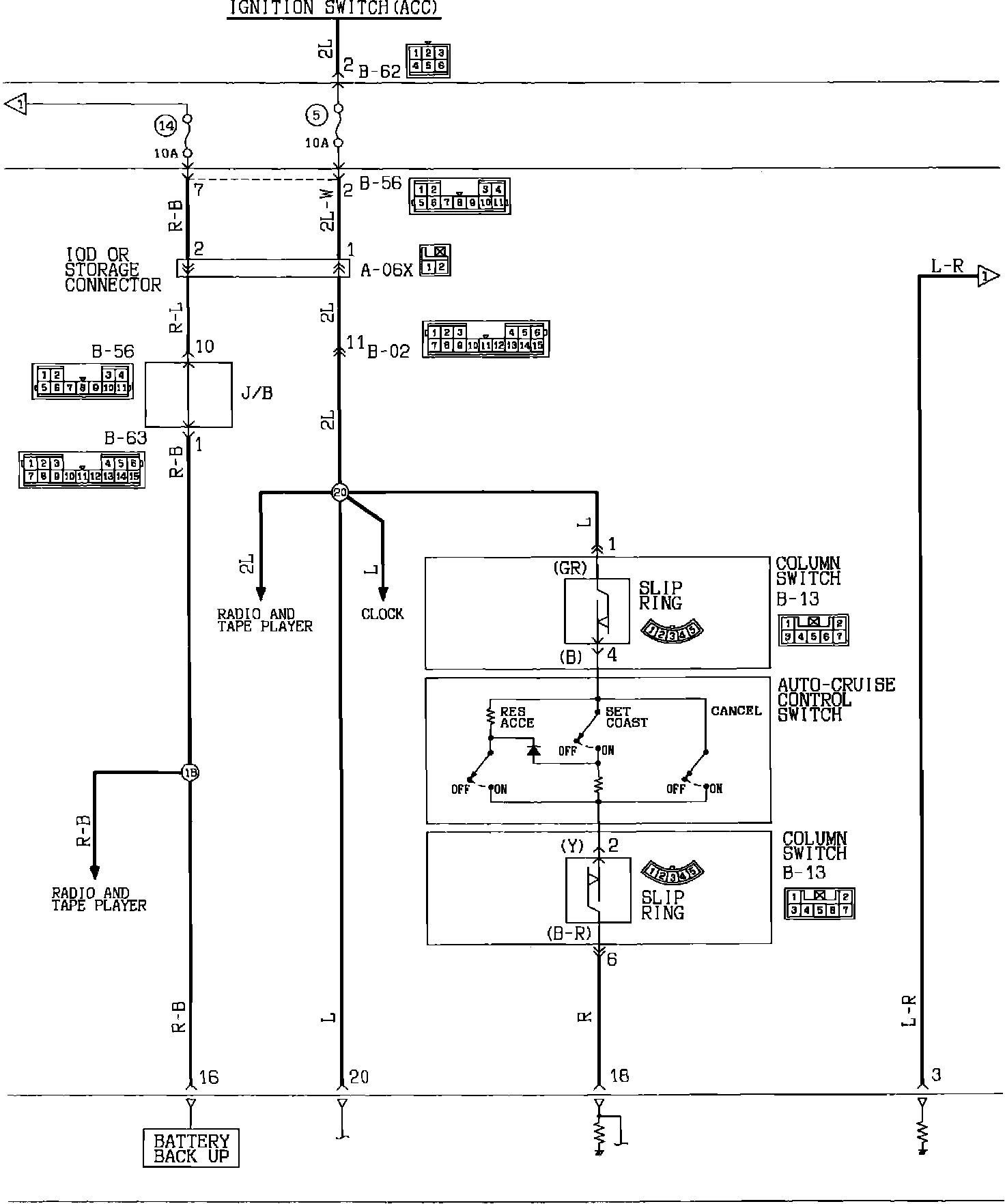

Auto-cruise Control Circuit:

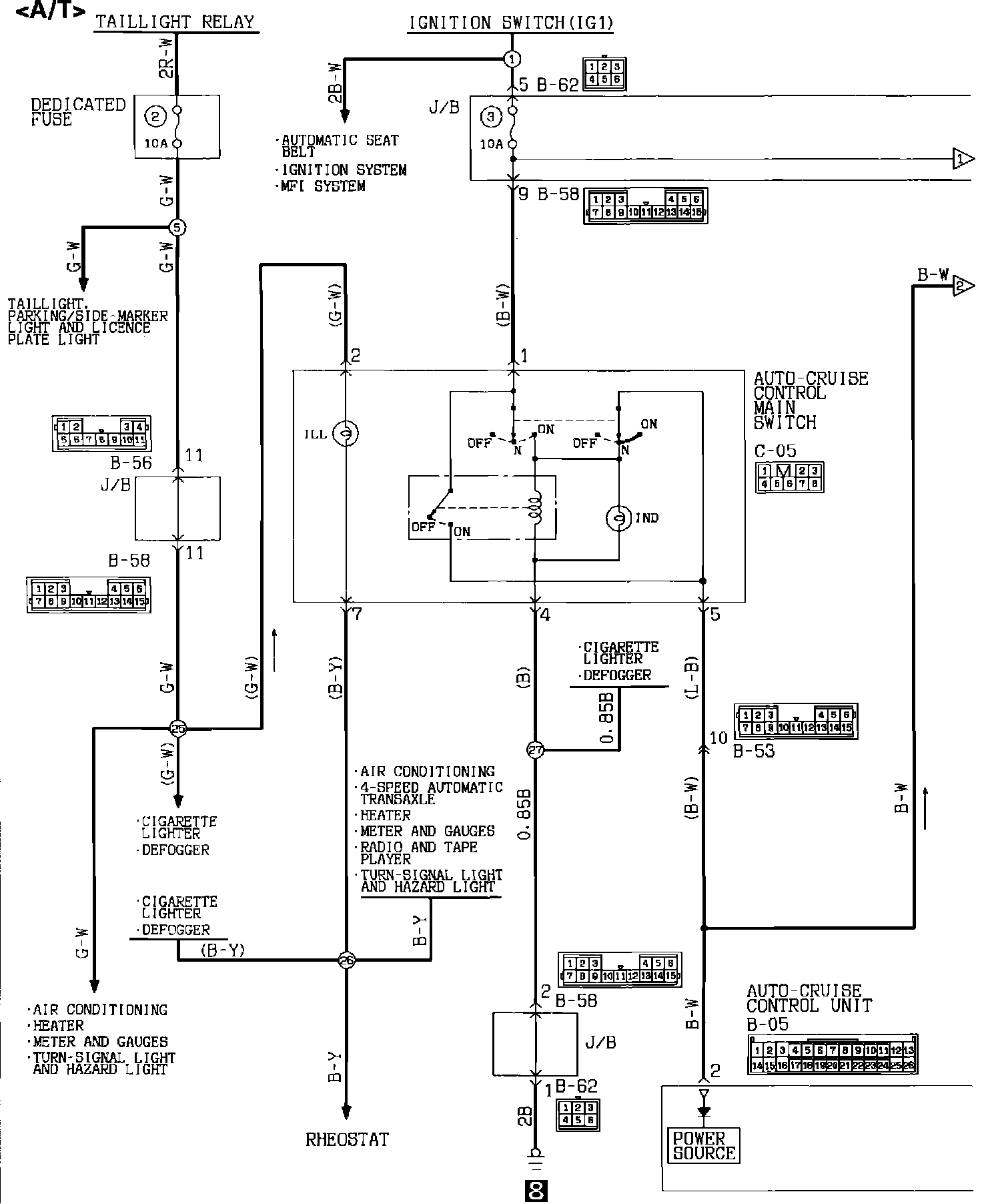

Auto-cruise Control Circuit:

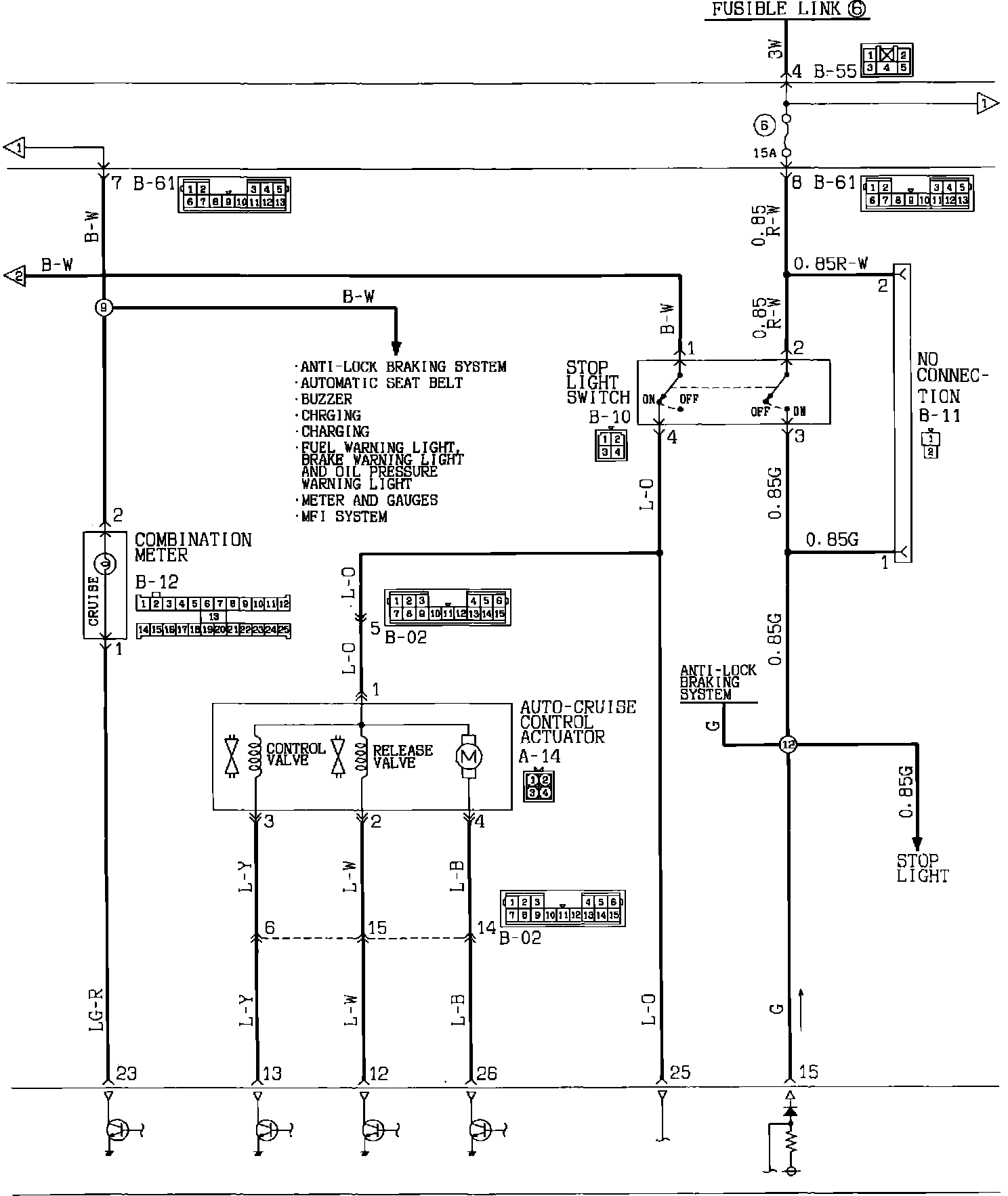

Auto-cruise Control Circuit:
