A Connectors - Engine Compartment Harness
>>

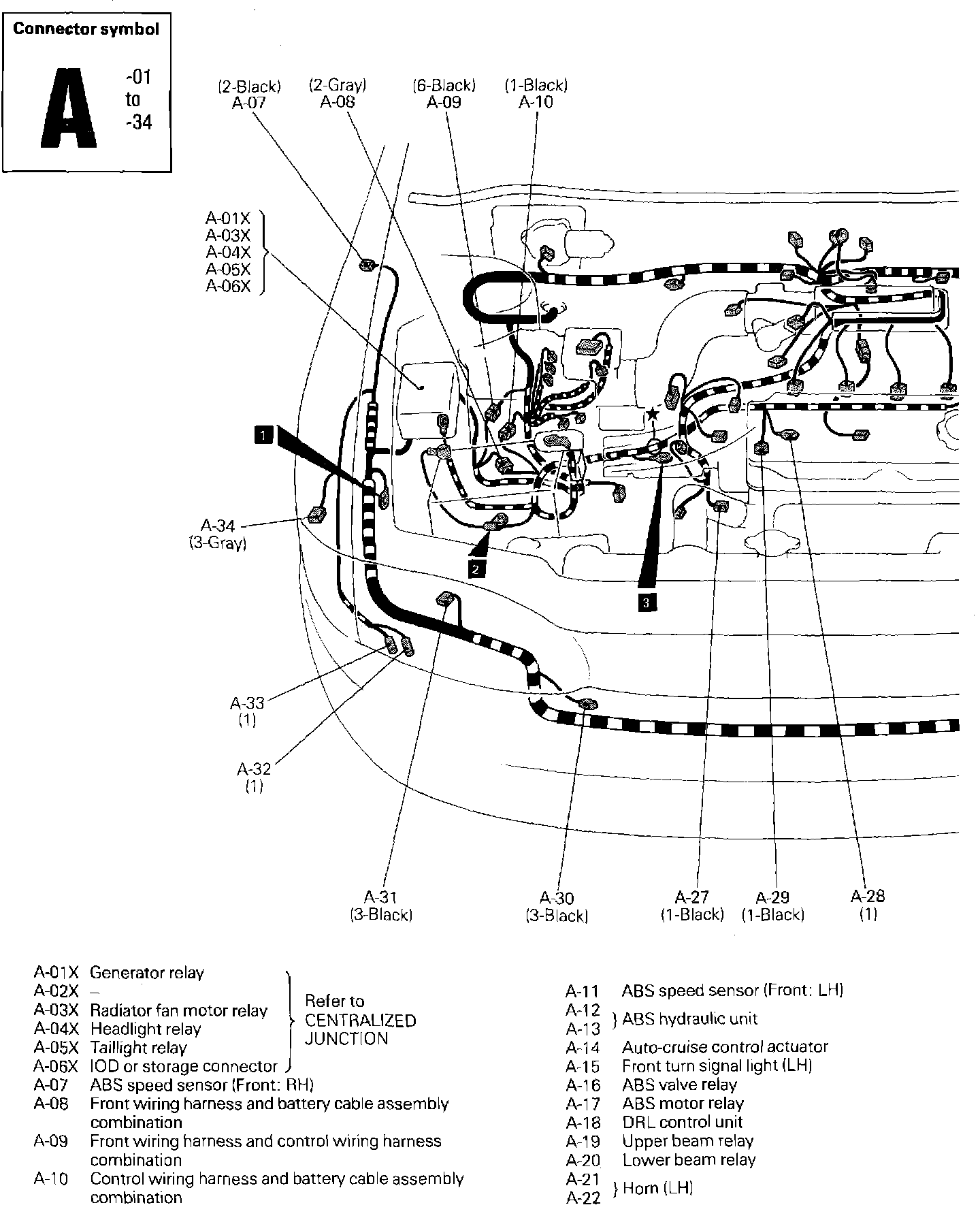

A-01 Thru A-34 (Engine Compartment)
A-01 Thru A-34 (Engine Compartment)
Engine Compartment Connectors:
Engine Compartment Connectors:
