Home >> Plymouth >> 1993 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> E Connectors - Door Harness >> 4 Door Model

4 Door Model

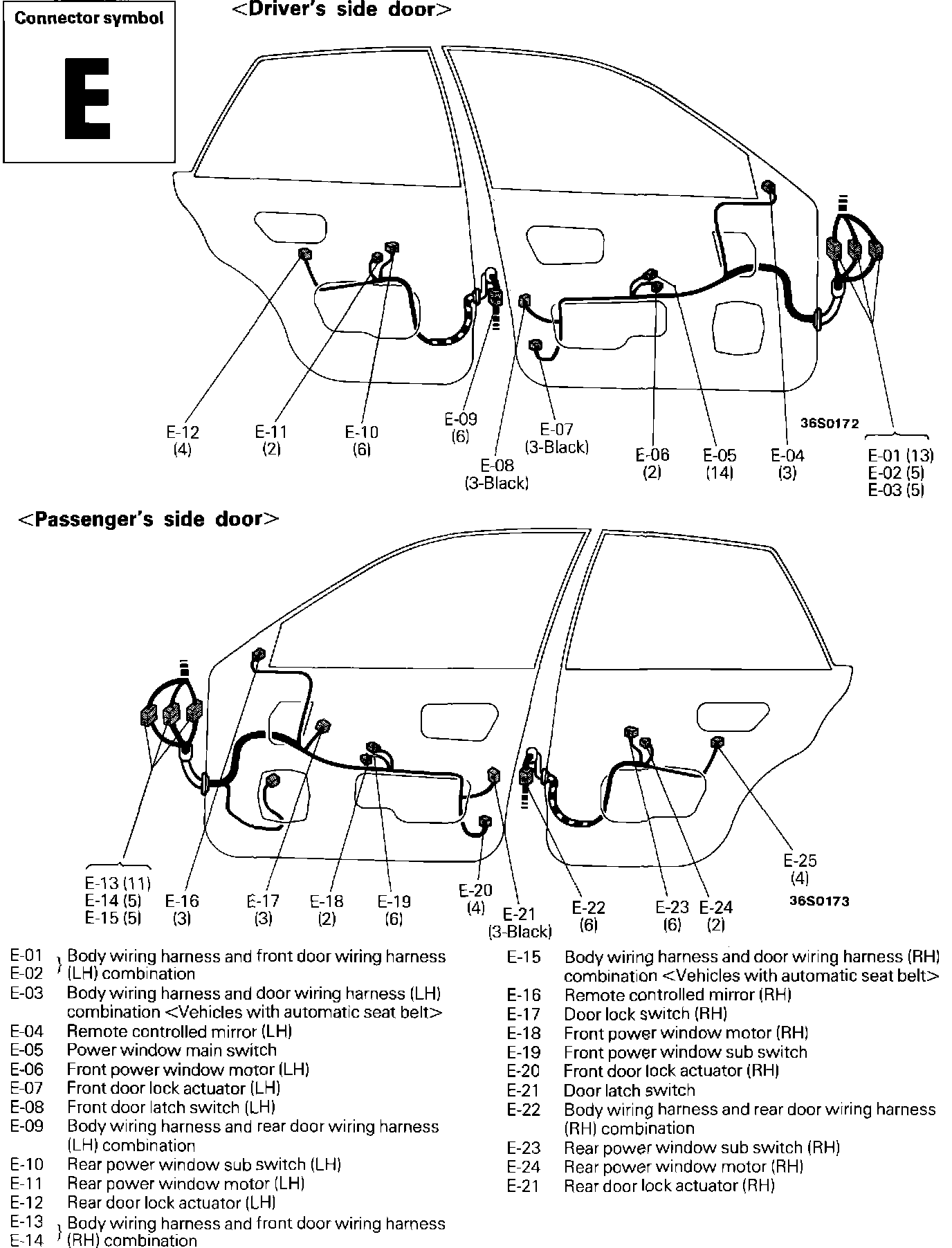

Door Connectors:
