Home >> Plymouth >> 1993 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Lamp >> 4-Door Models For CANADA

4-Door Models For CANADA

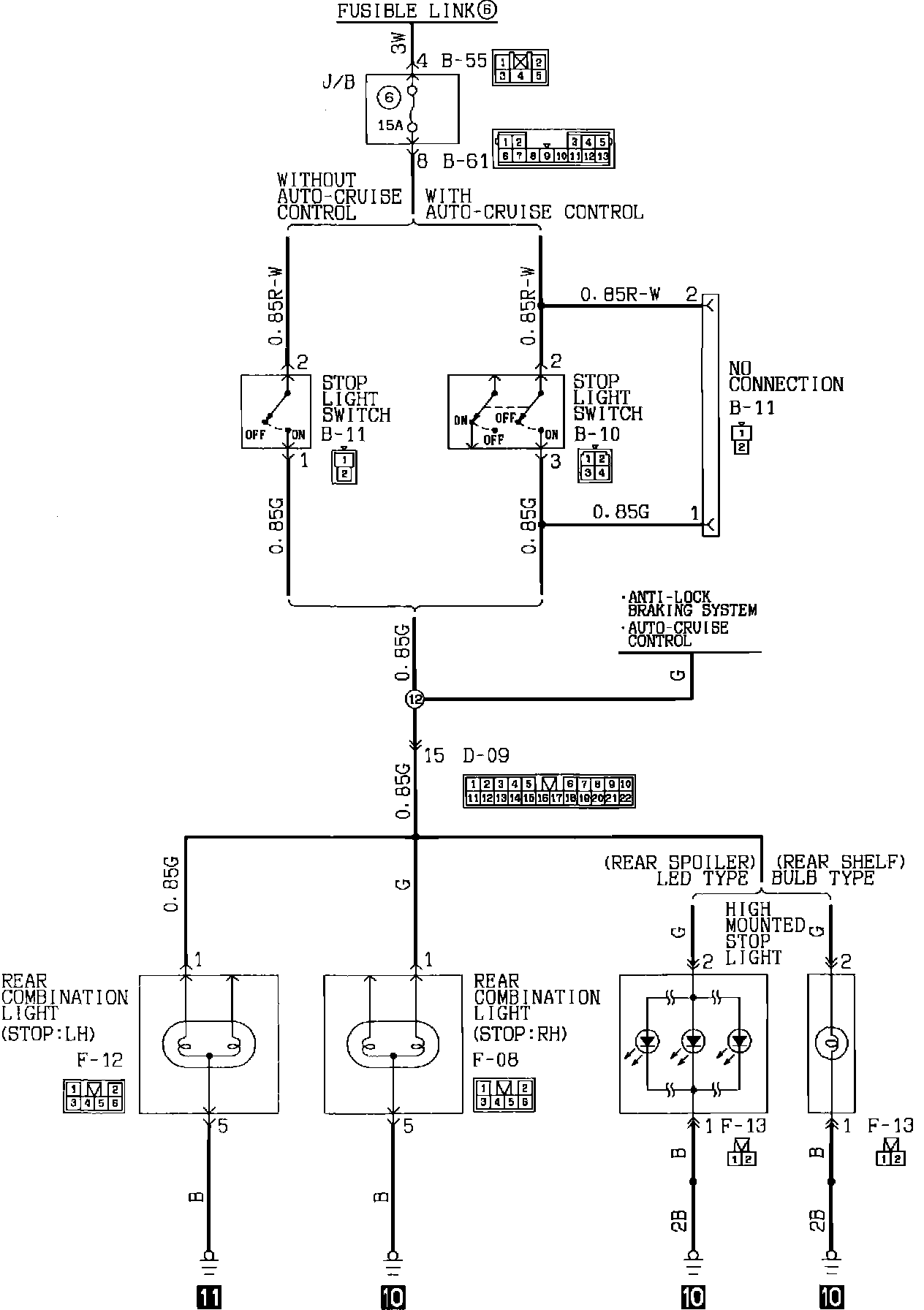

Stop Light Circuit:
