Home >> Plymouth >> 1993 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Light Switch >> 2 Door Models

2 Door Models

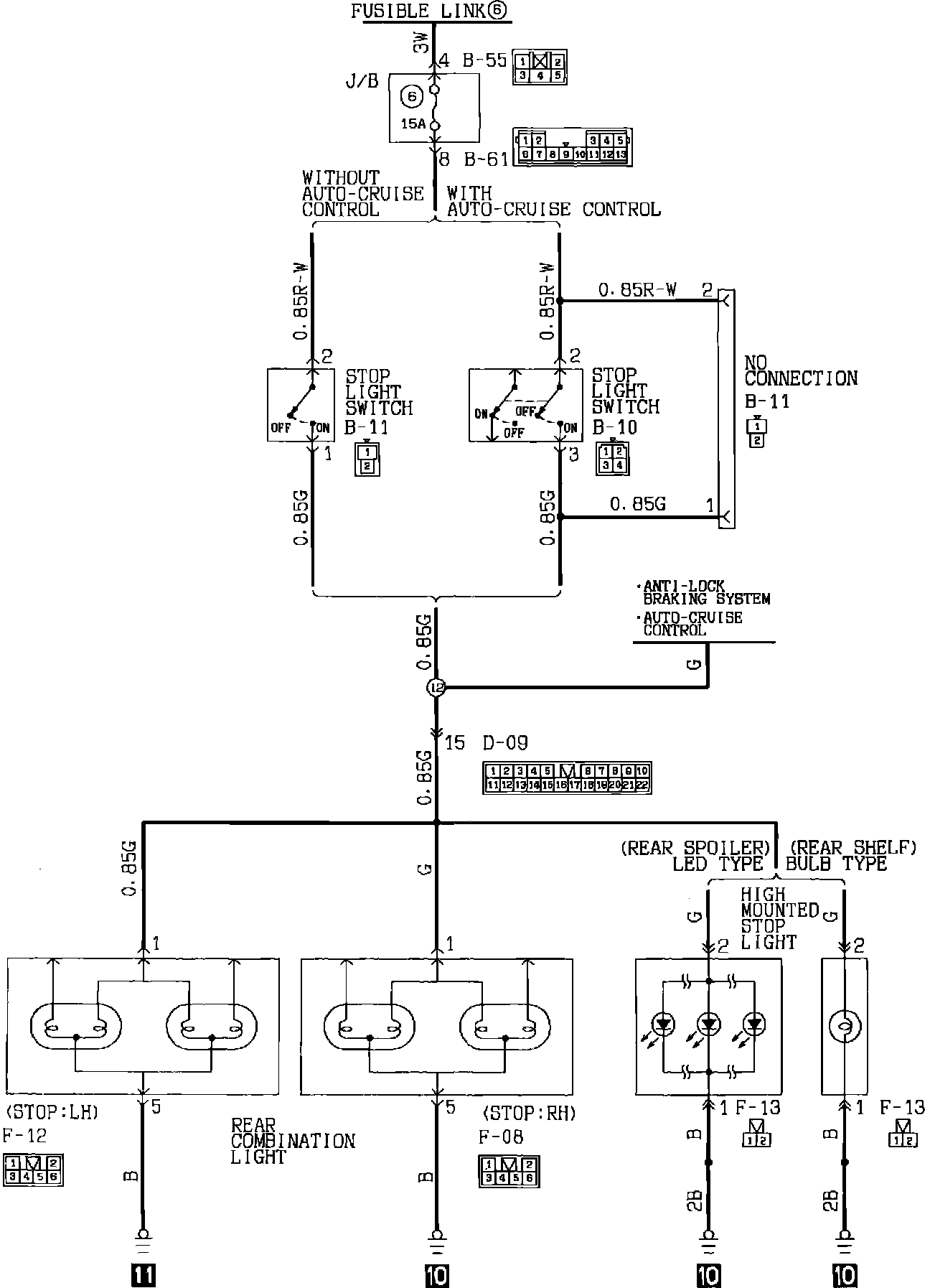

Stop Light Circuit:
