Instrument Cluster / Carrier

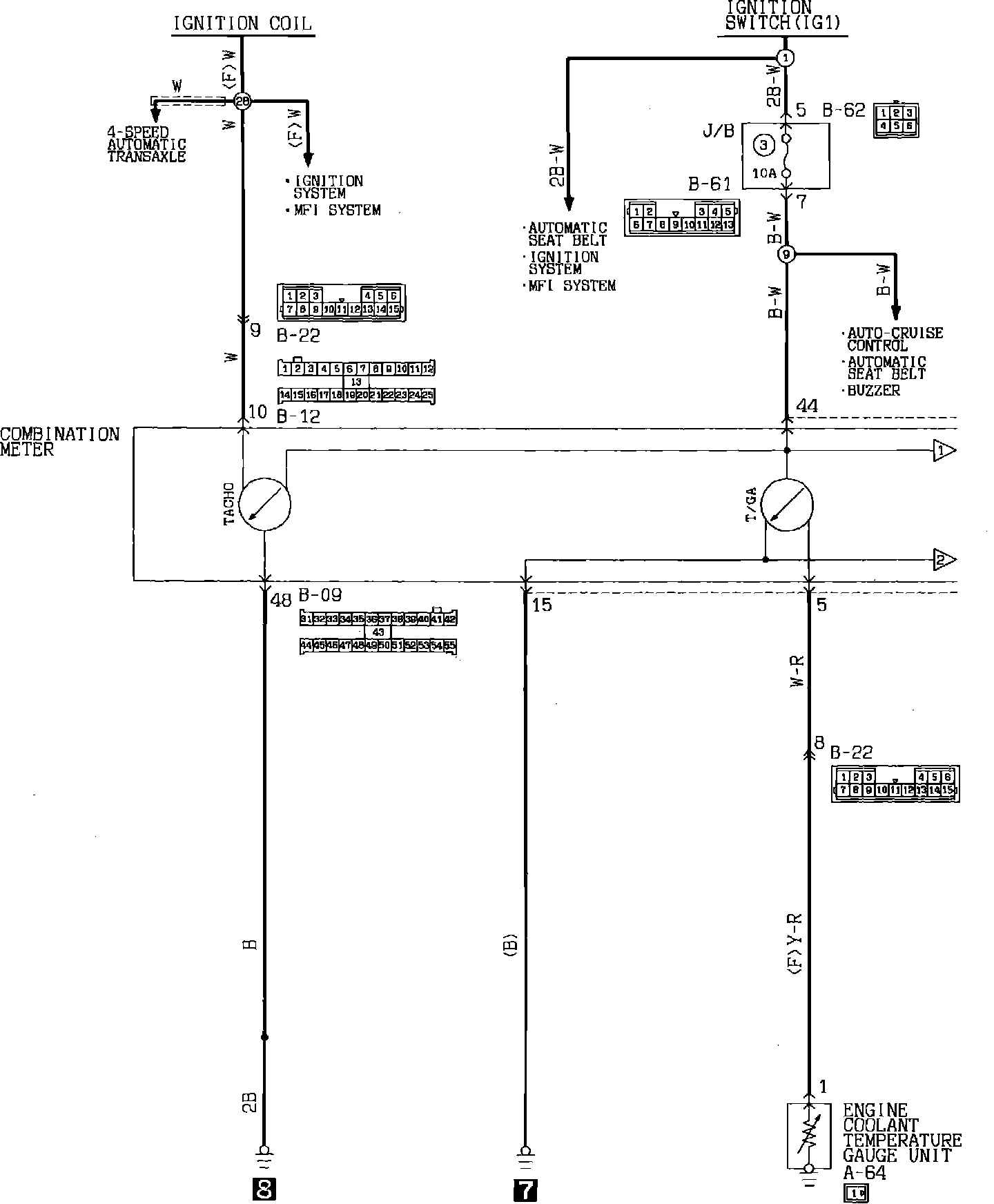

Meters And Gauges Circuit Diagram:

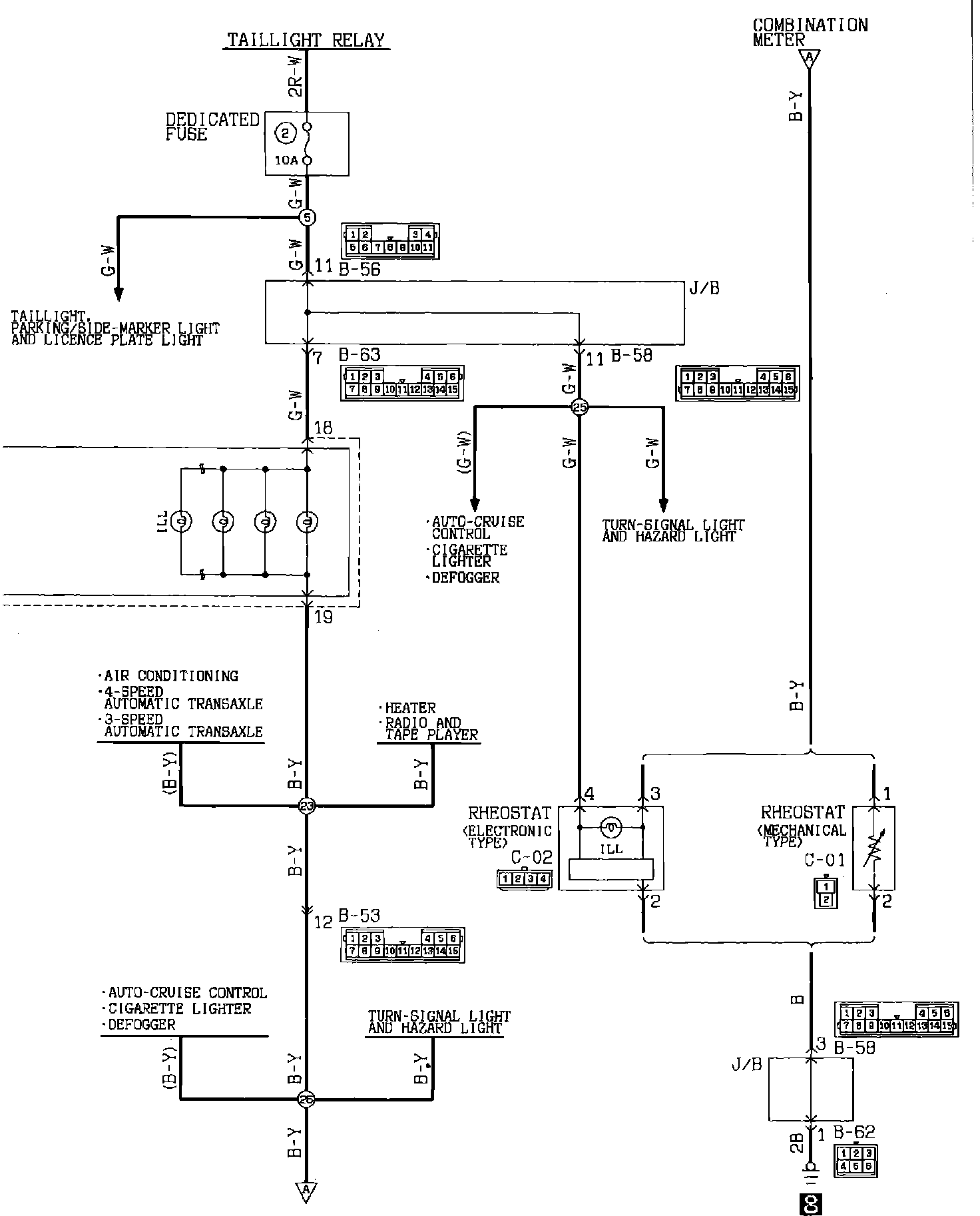

Meters And Gauges Circuit Diagram:

Meters And Gauges Circuit Diagram:
