Marker Lamp
>>
2 Door Models
2 Door Models

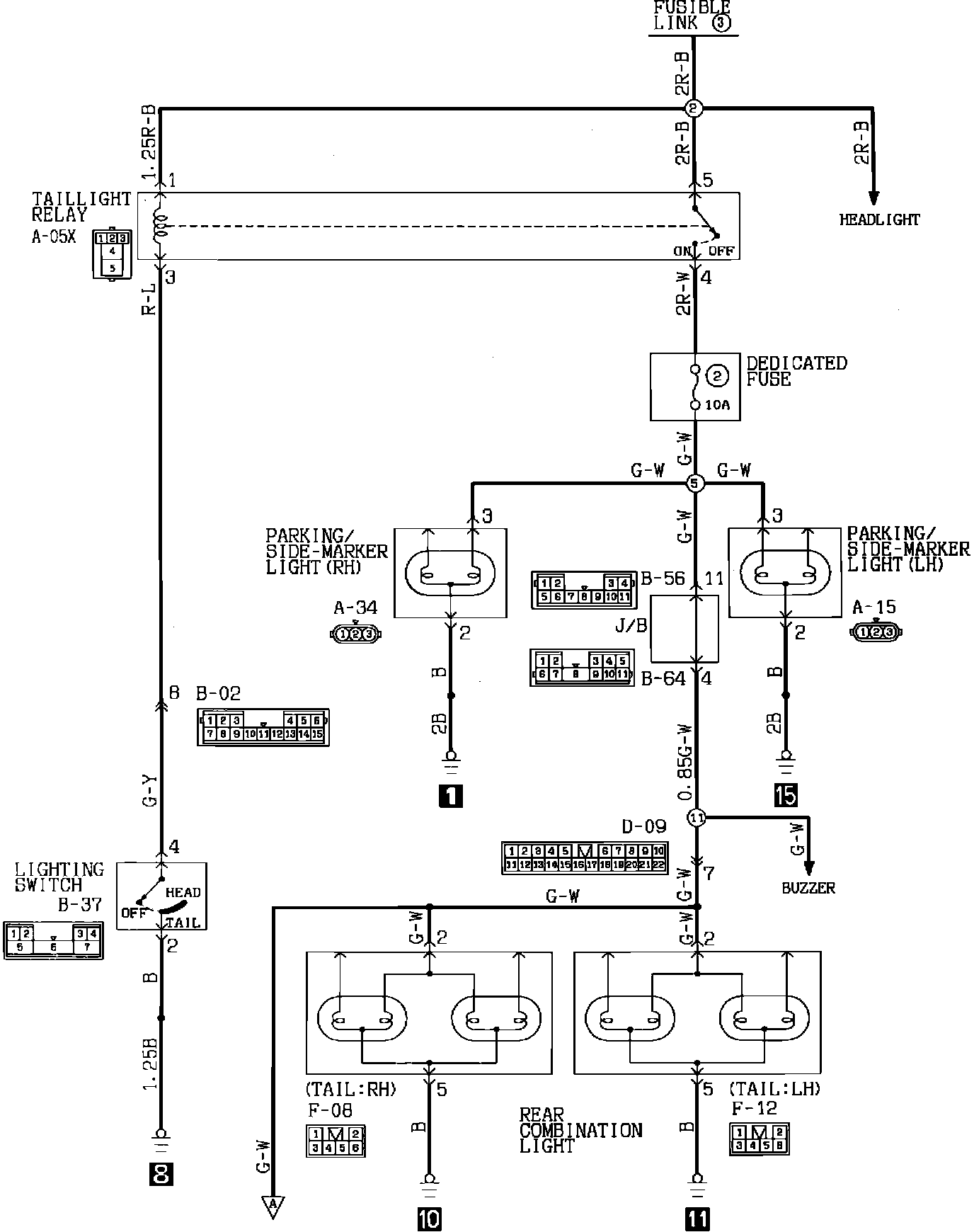

Parking And Side Marker Lamps Circuit:

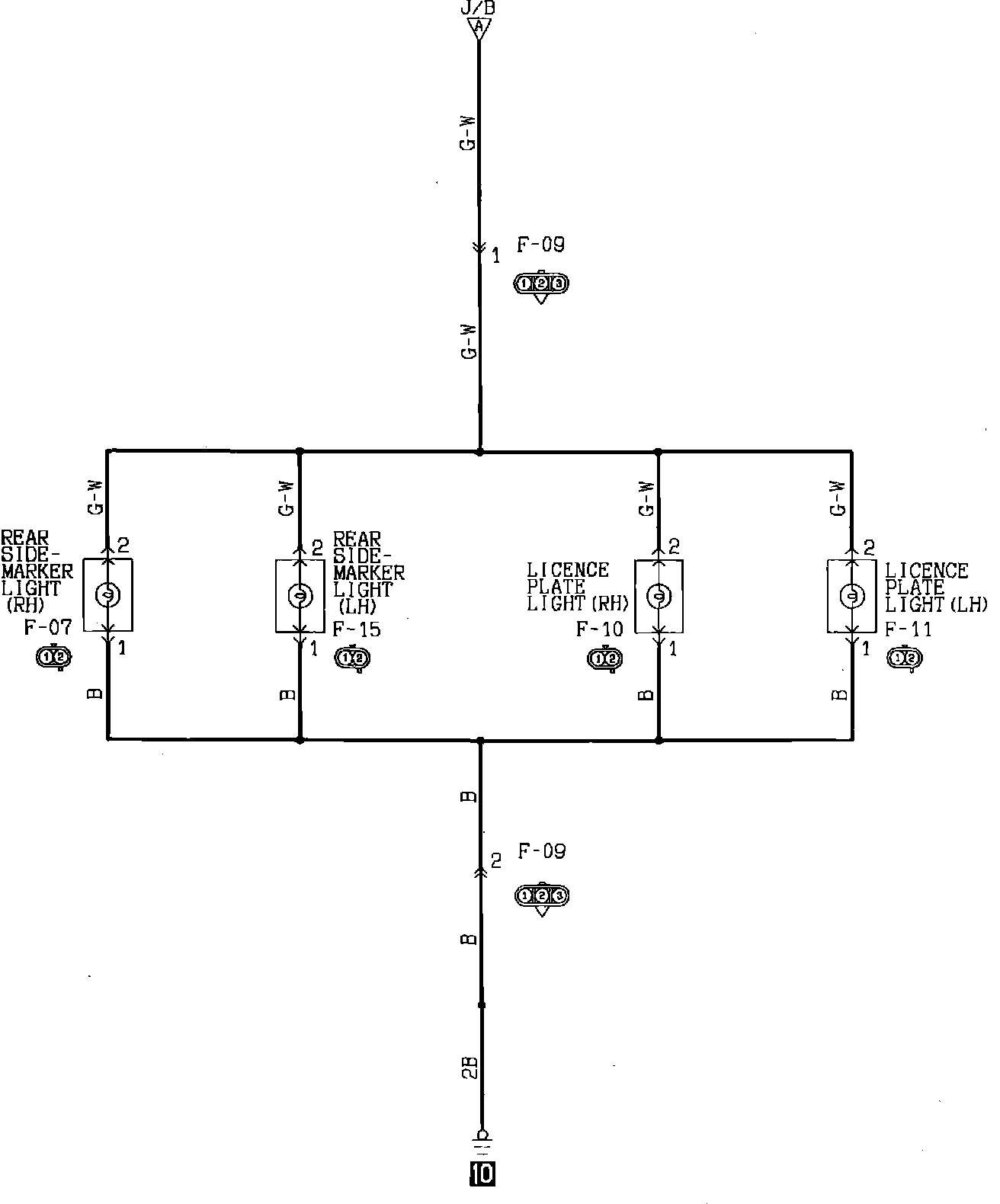

Side Marker And License Plate Lamps Circuit:
