4-Door Models For CANADA

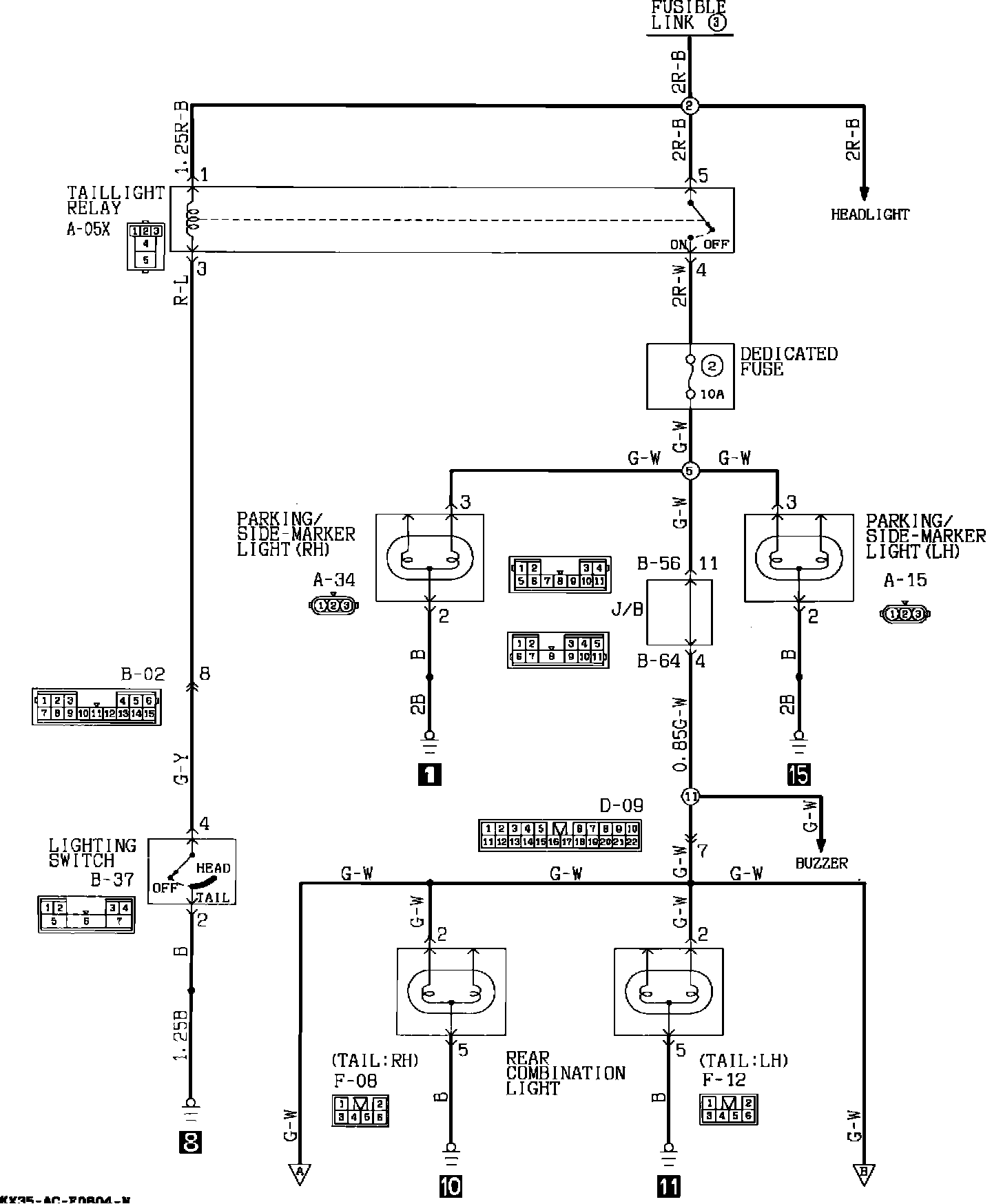

Parking And Side Marker Lamps Circuit:



Side Marker And License Plate Lamps Circuit:
