Home >> Plymouth >> 1993 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Management

Engine Management

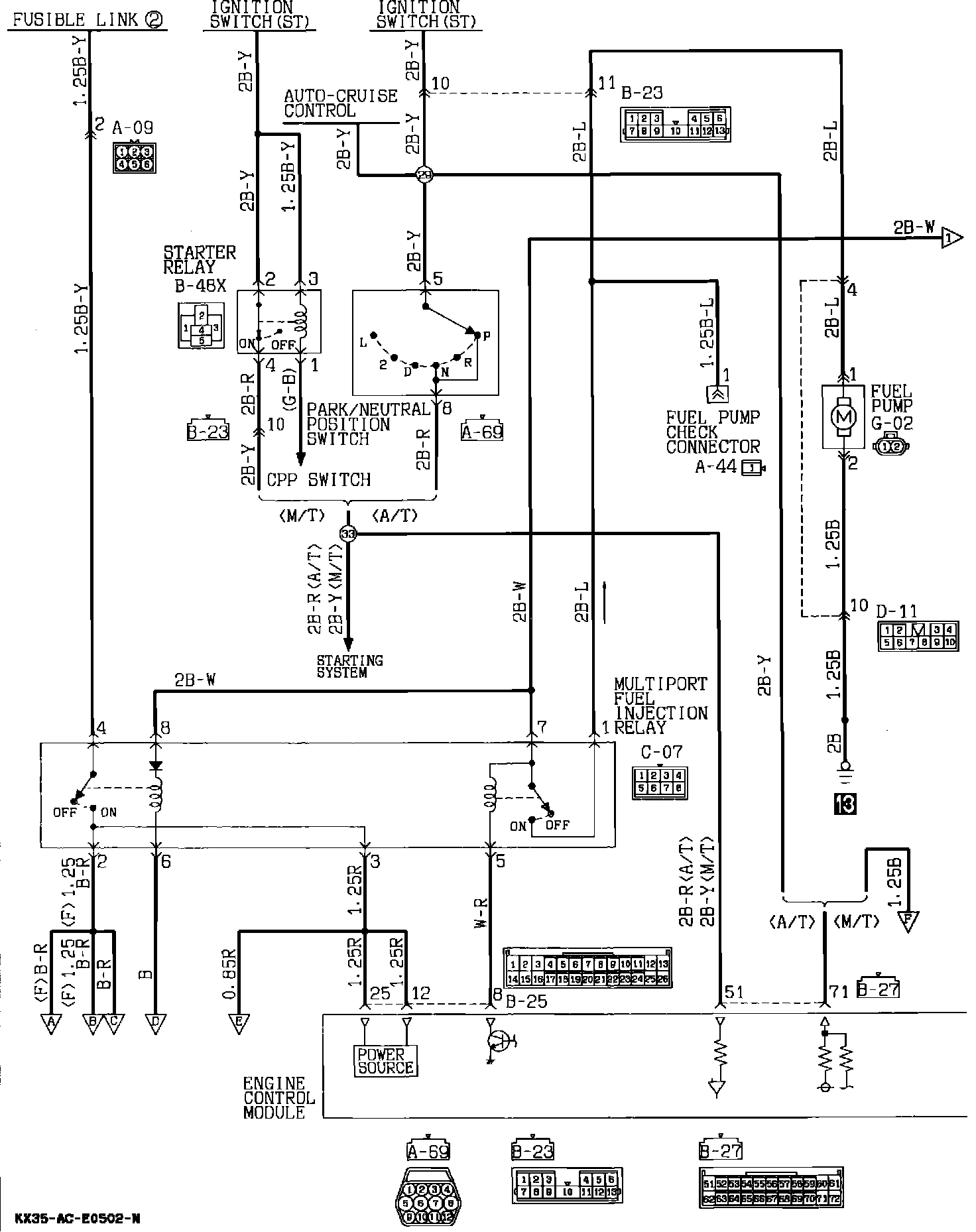

MFI Circuit:
