Electrical Diagrams

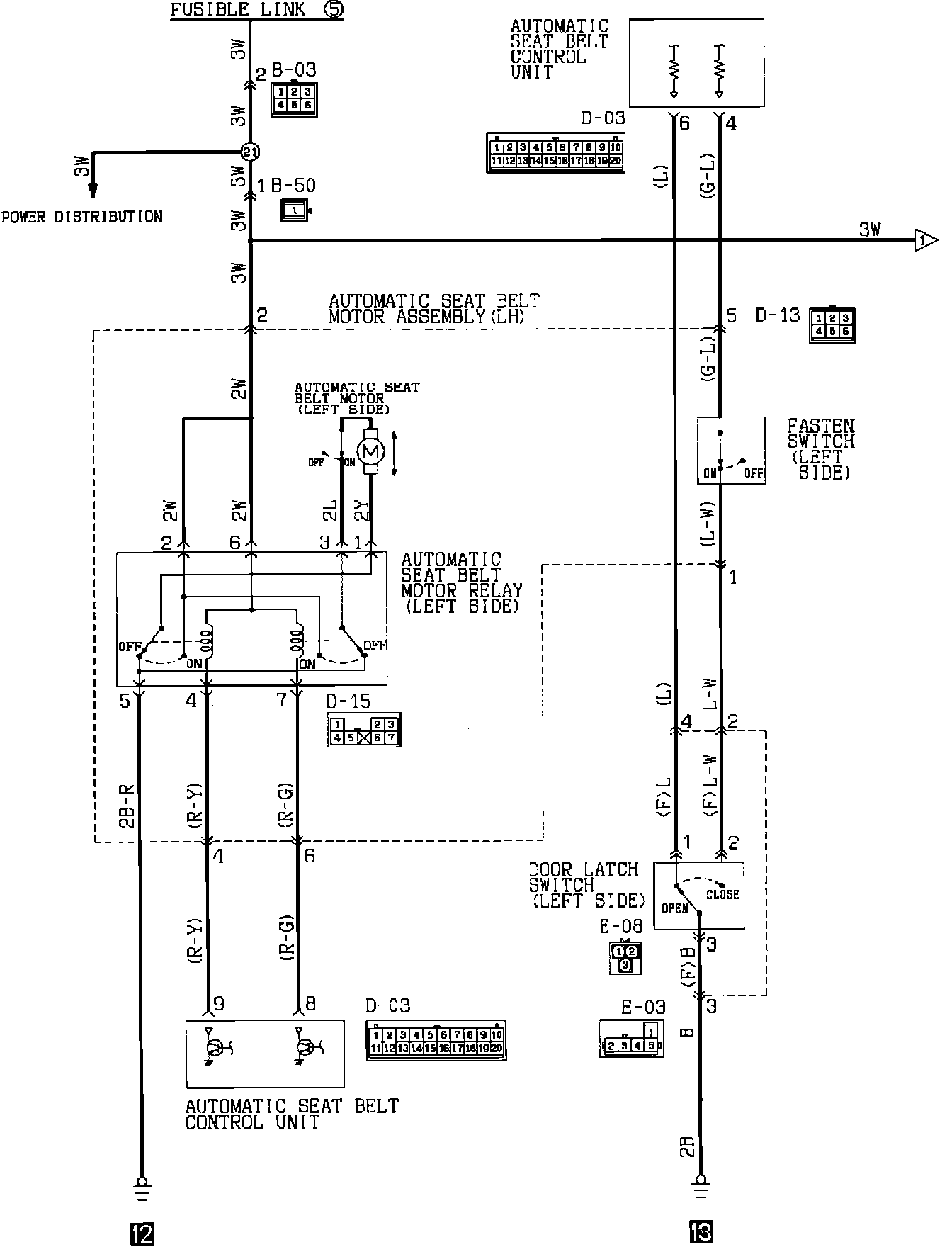

Automatic Seat Belt Circuit (Part 1 Of 3):

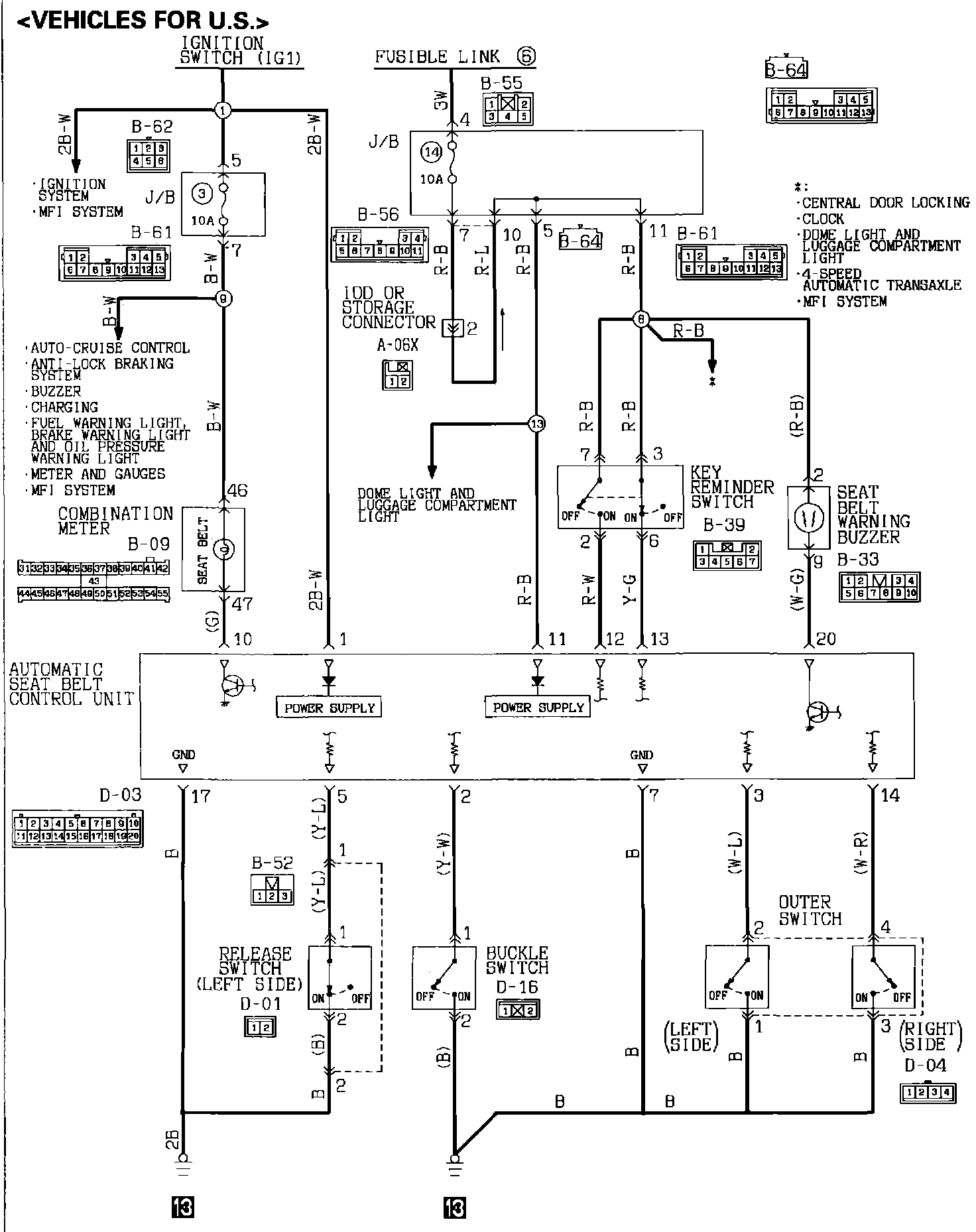

Automatic Seat Belt Circuit (Part 2 Of 3):

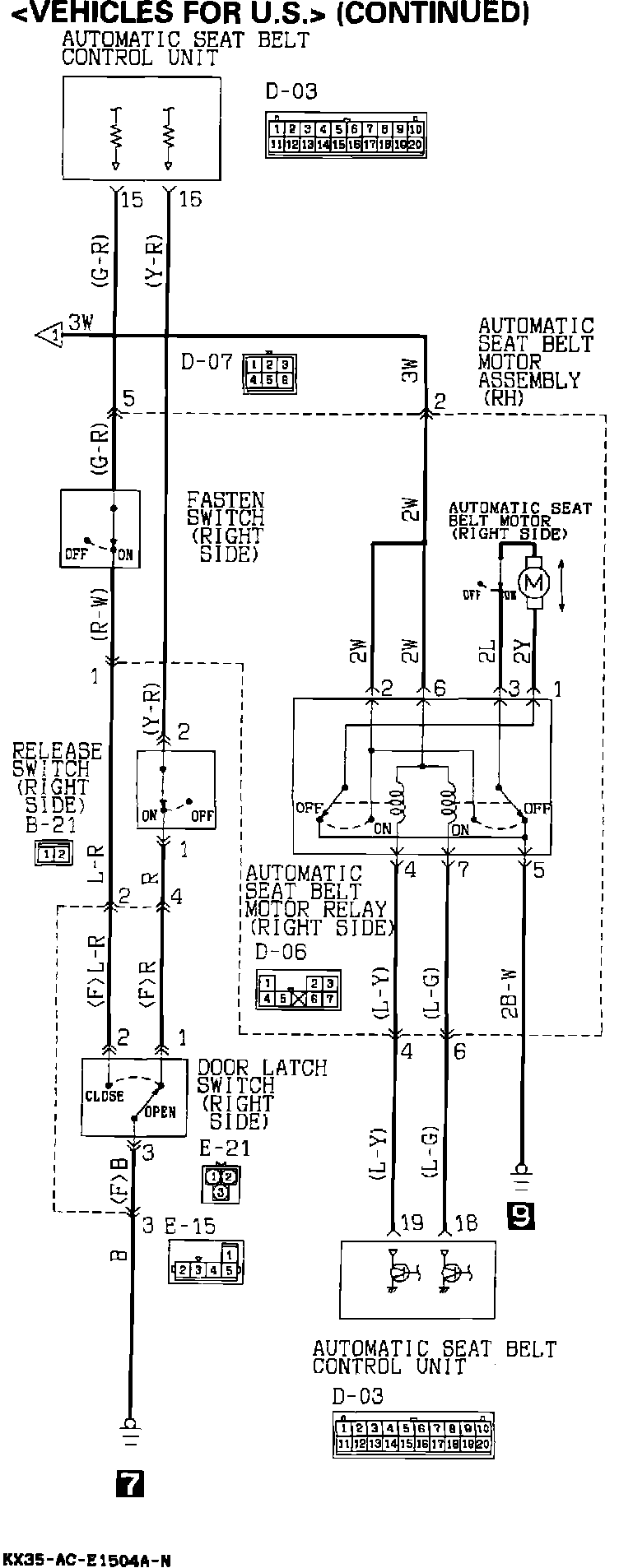

Automatic Seat Belt Circuit (Part 3 Of 3):

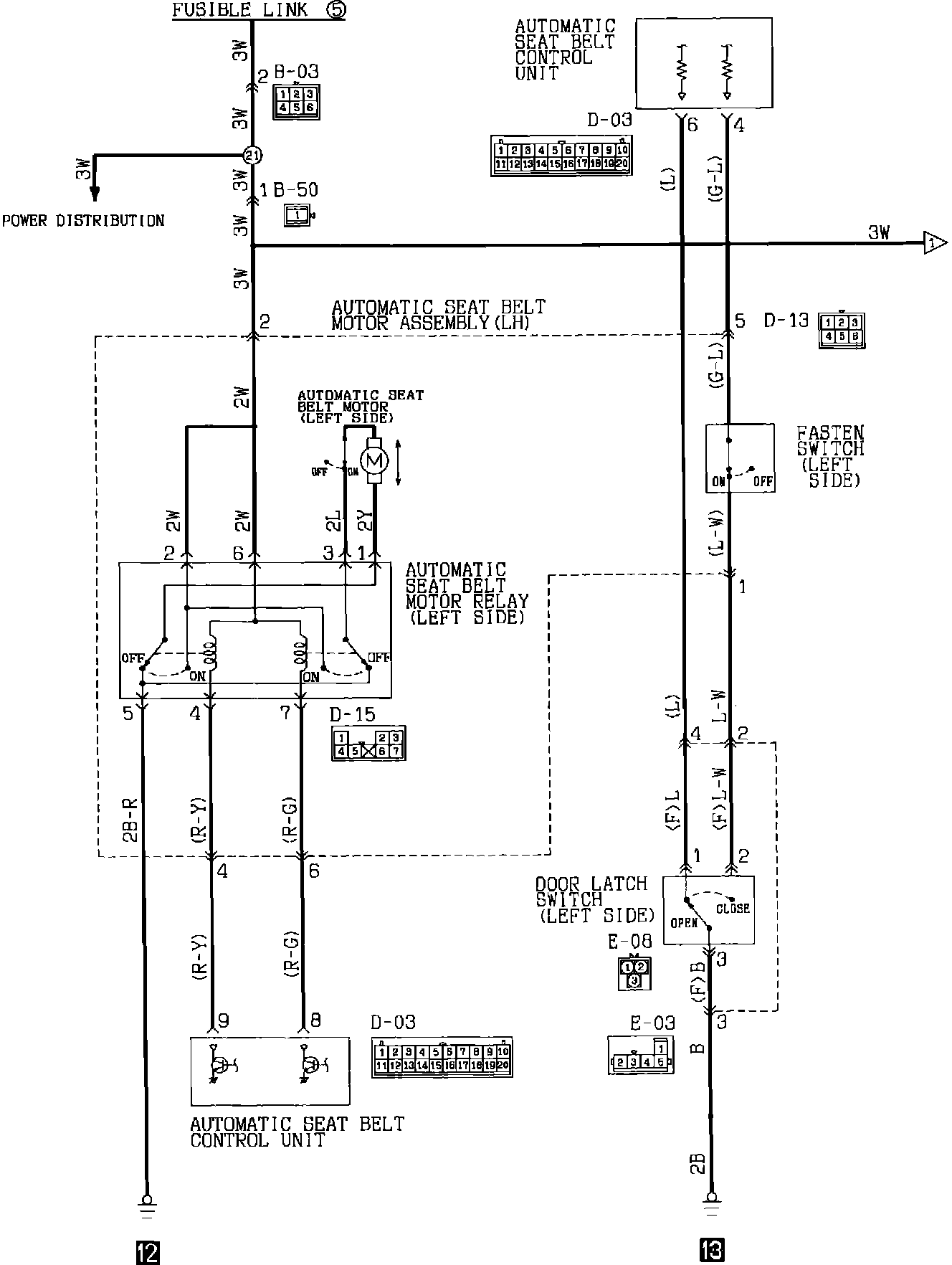

Automatic Seat Belt Circuit:

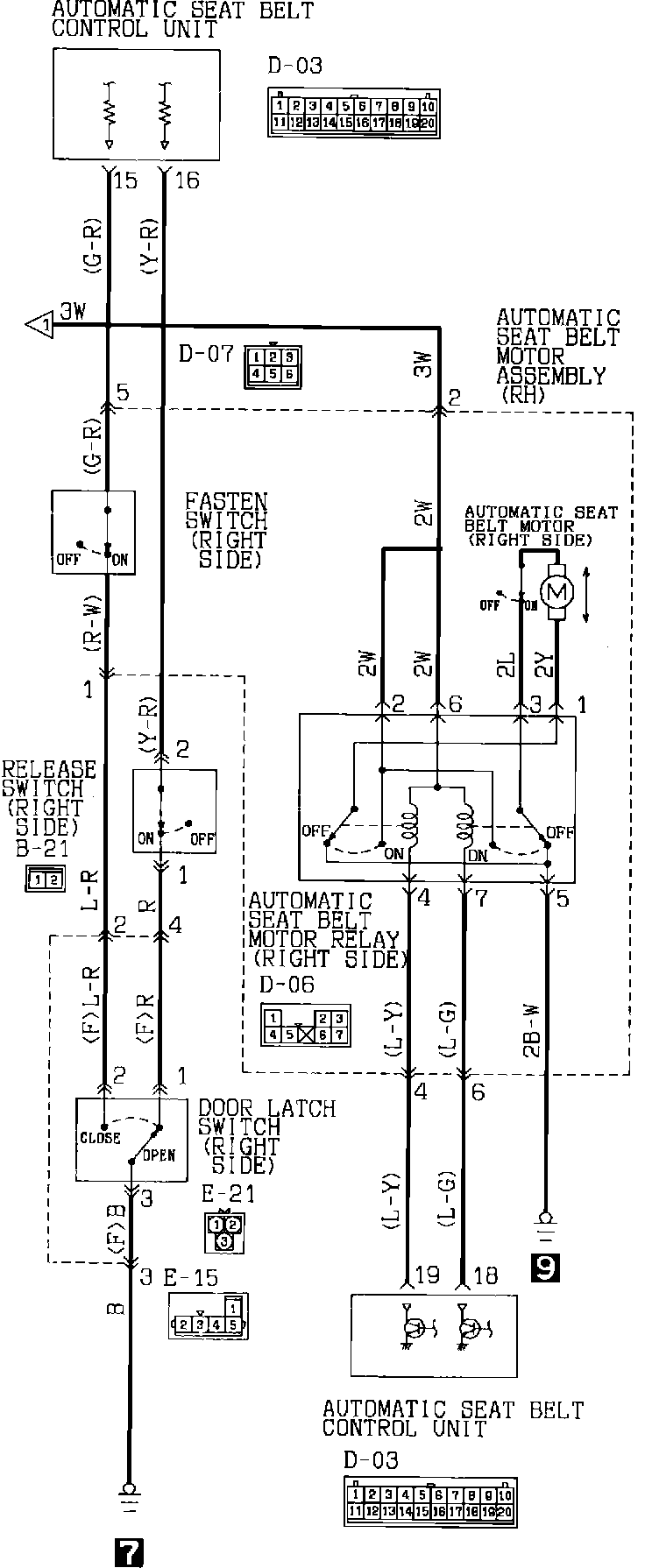

Automatic Seat Belt Circuit:



Automatic Seat Belt Circuit:
