Electrical Diagrams

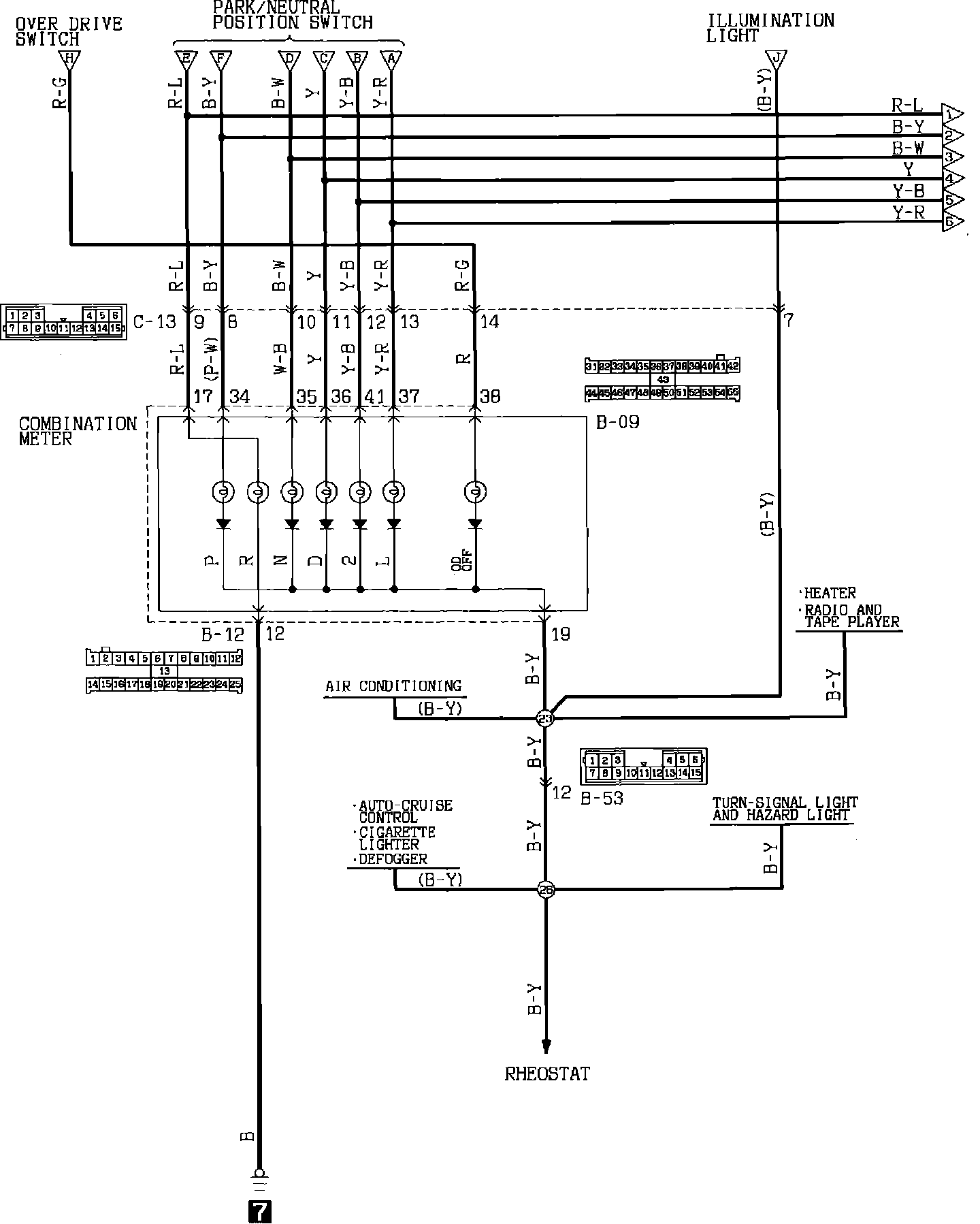

3 Speed Auto Transaxle Circuit:

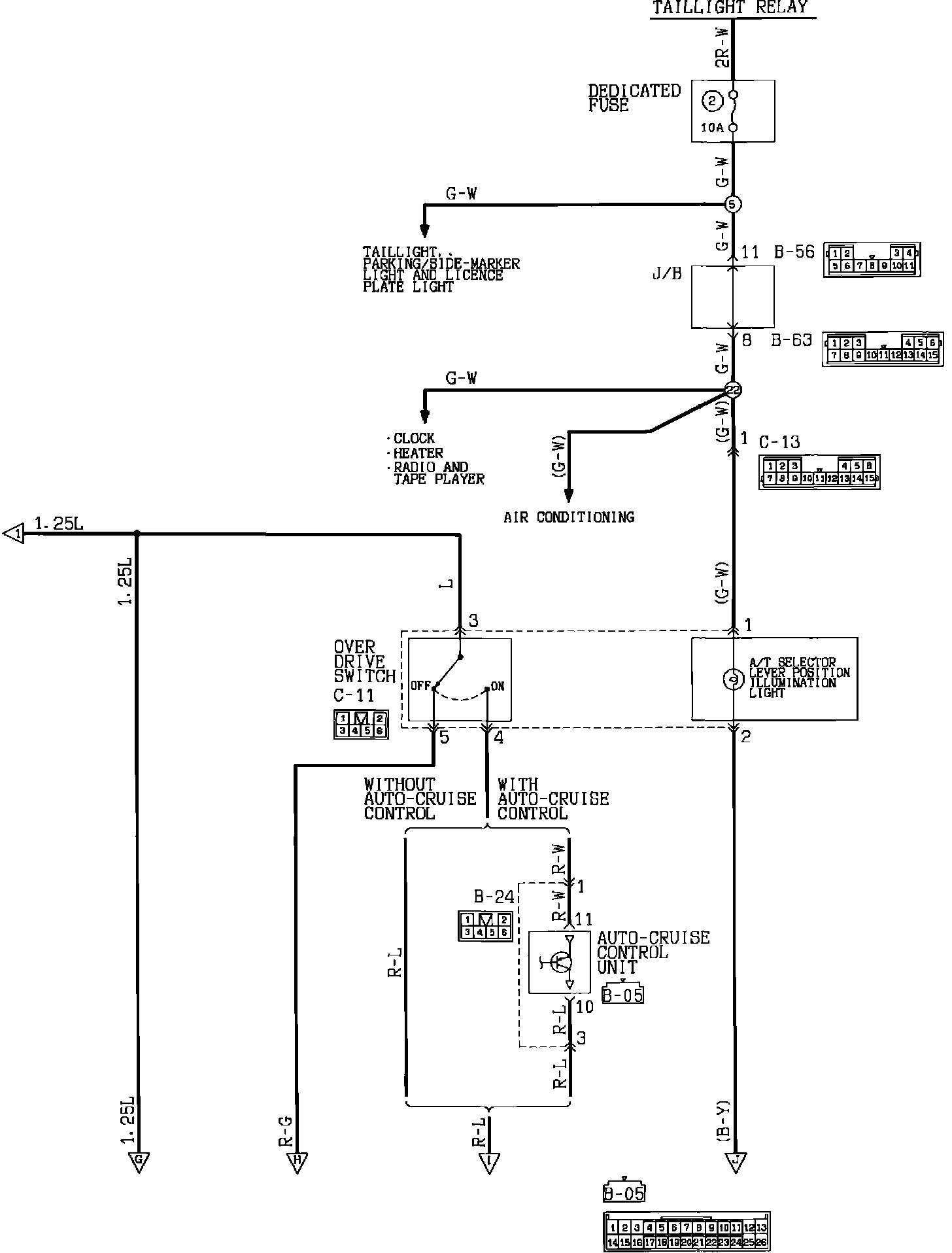

3 Speed Auto Transaxle Circuit:

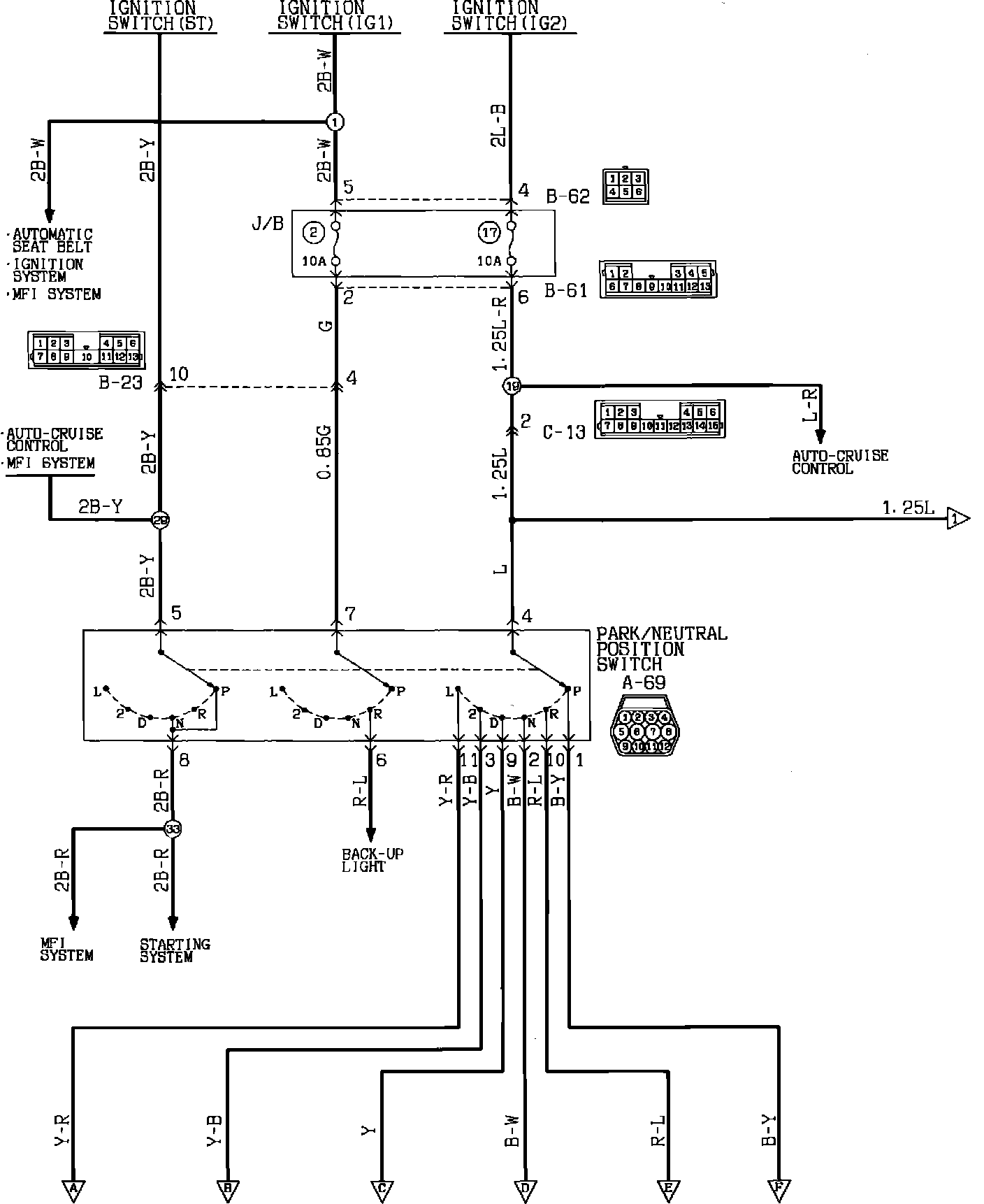

4 Speed Auto Transaxle Circuit:

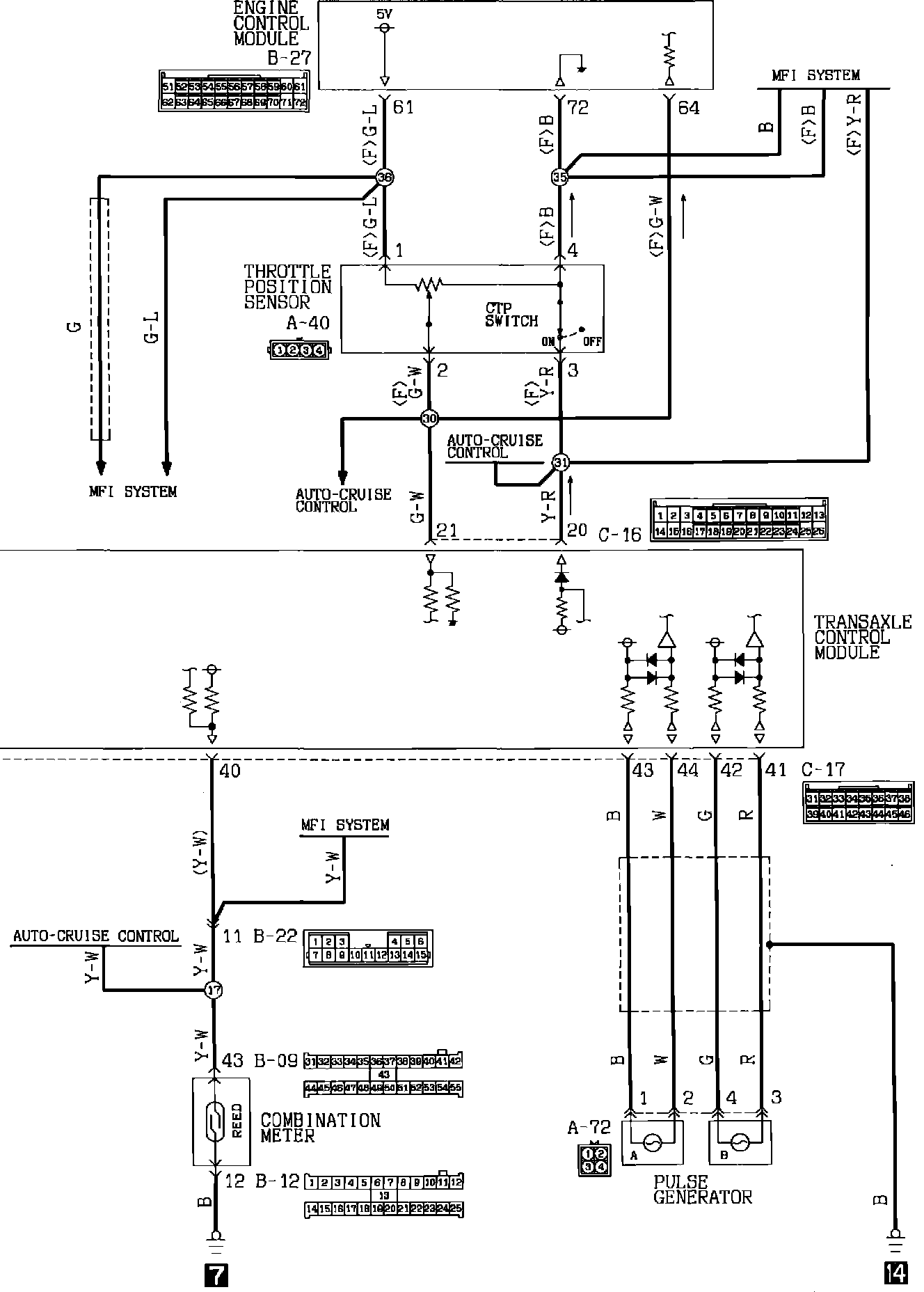

4 Speed Auto Transaxle Circuit:

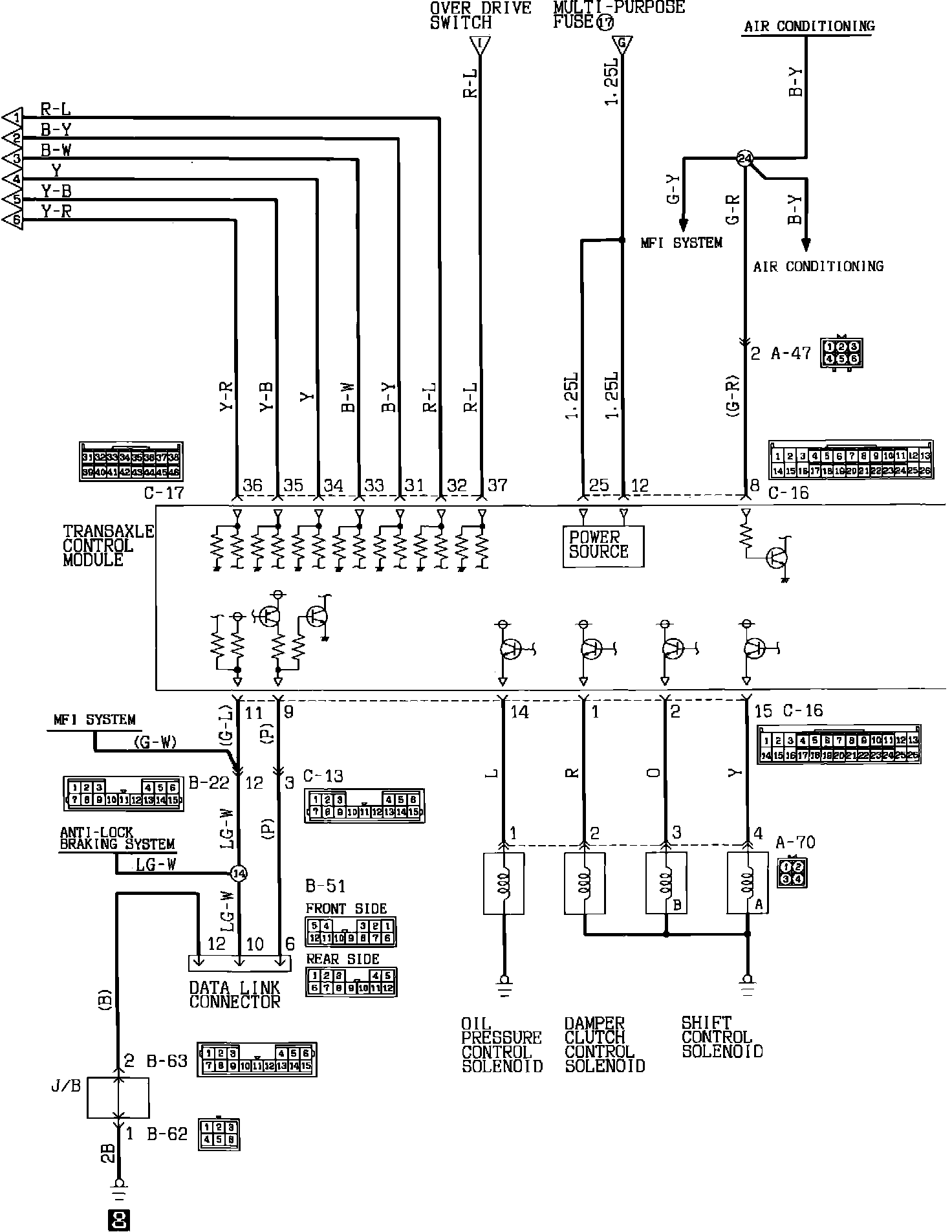

4 Speed Auto Transaxle Circuit:

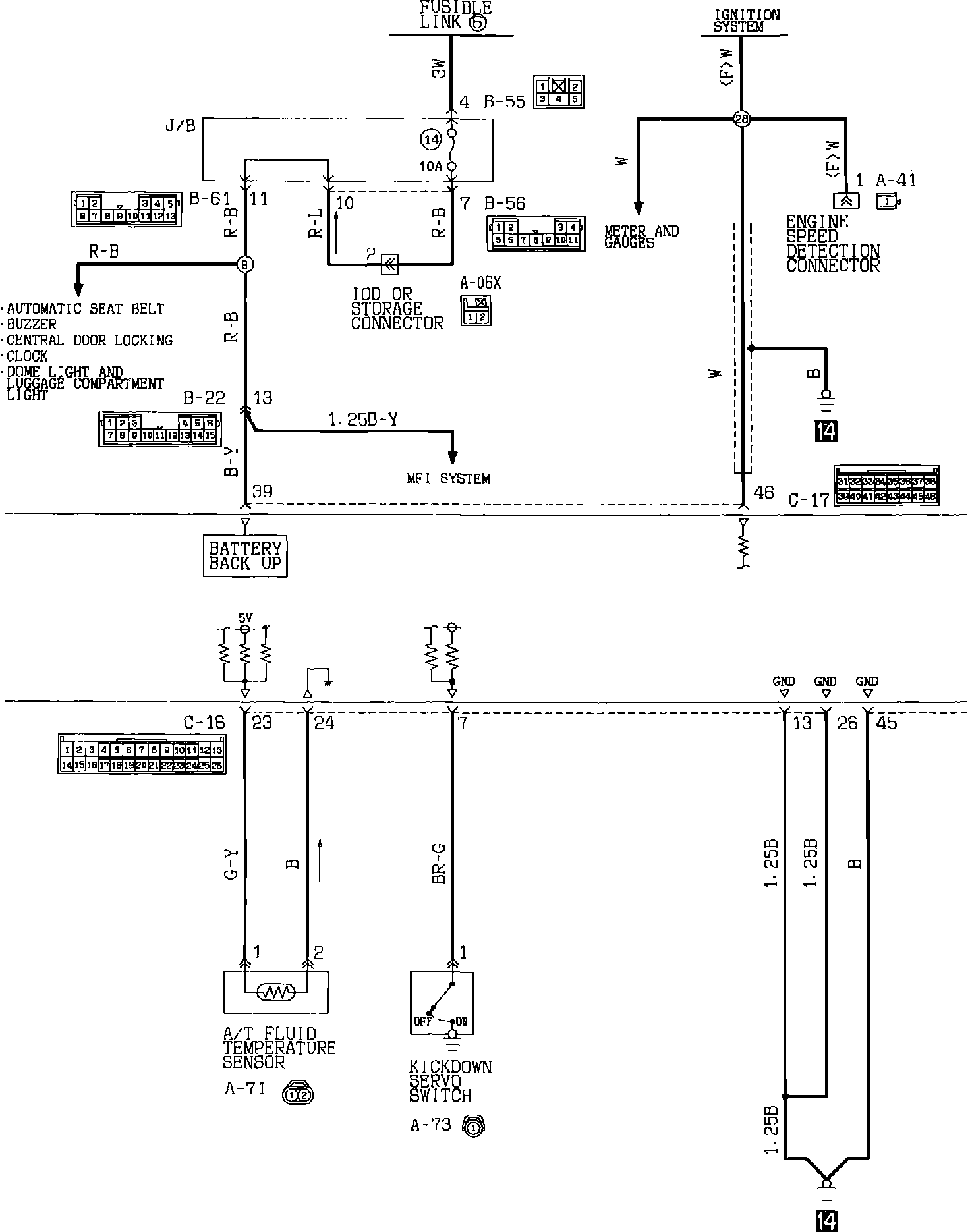

4 Speed Auto Transaxle Circuit:



4 Speed Auto Transaxle Circuit:



4 Speed Auto Transaxle Circuit:
