Powertrain Management
>>
Information Bus
Information Bus

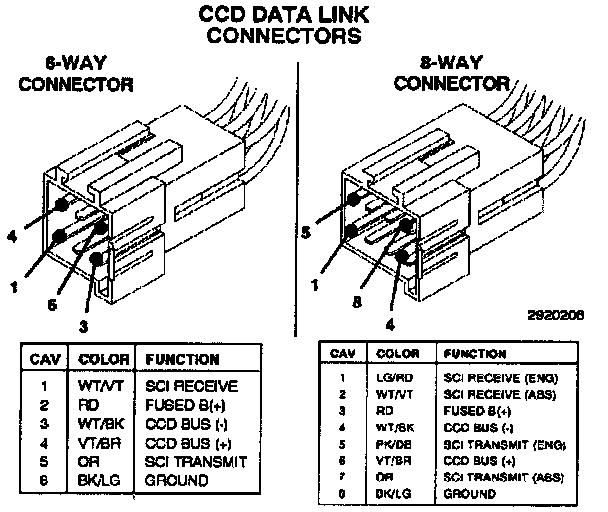

CCD Bus Connectors (Check Vehicle Connector To See Whether It Is Equipped With The Six Way Or The Eight Way Type):
