Home >> Plymouth >> 1994 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signal Flasher

Turn Signal Flasher

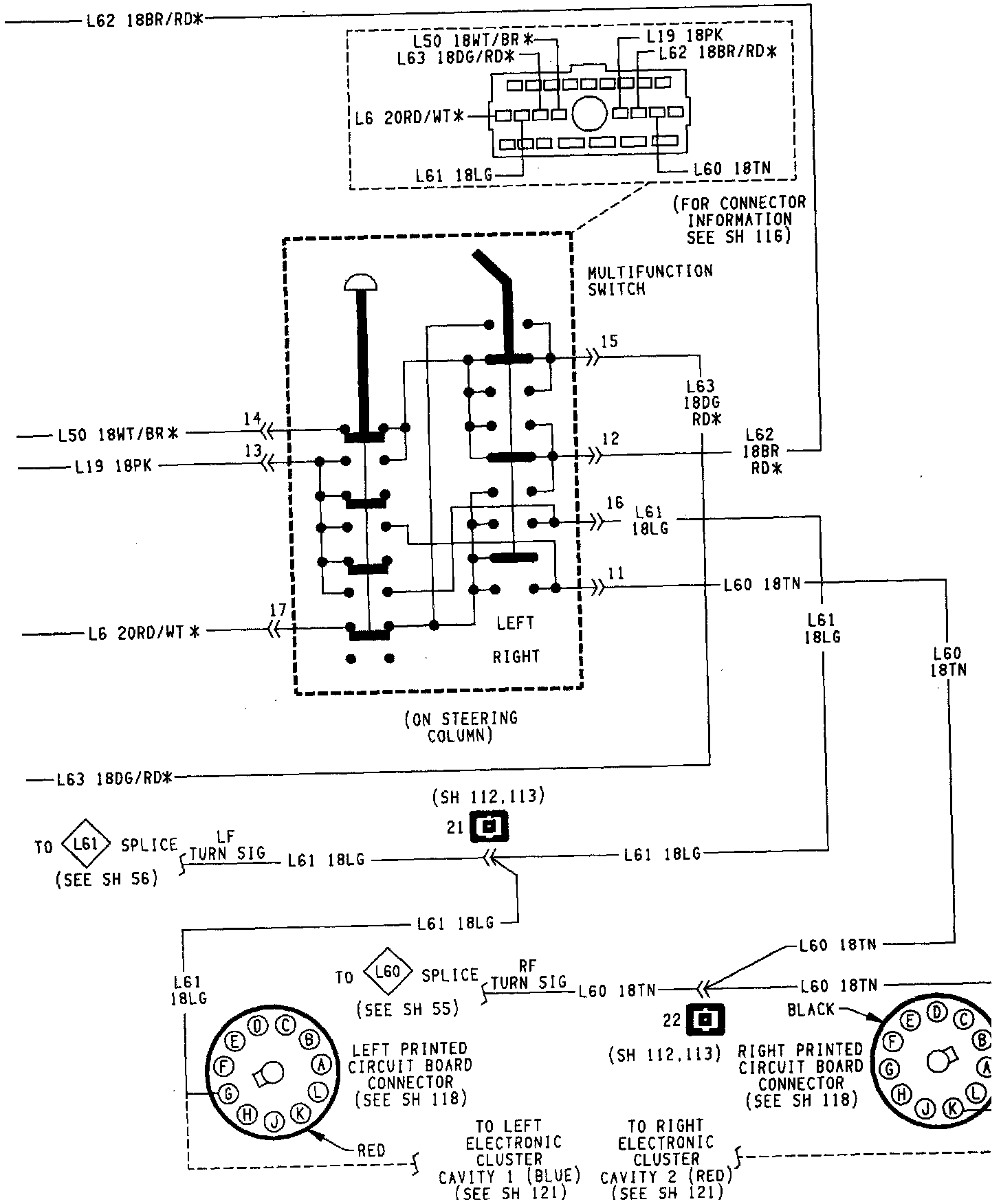

Turn And Hazard Flasher System:

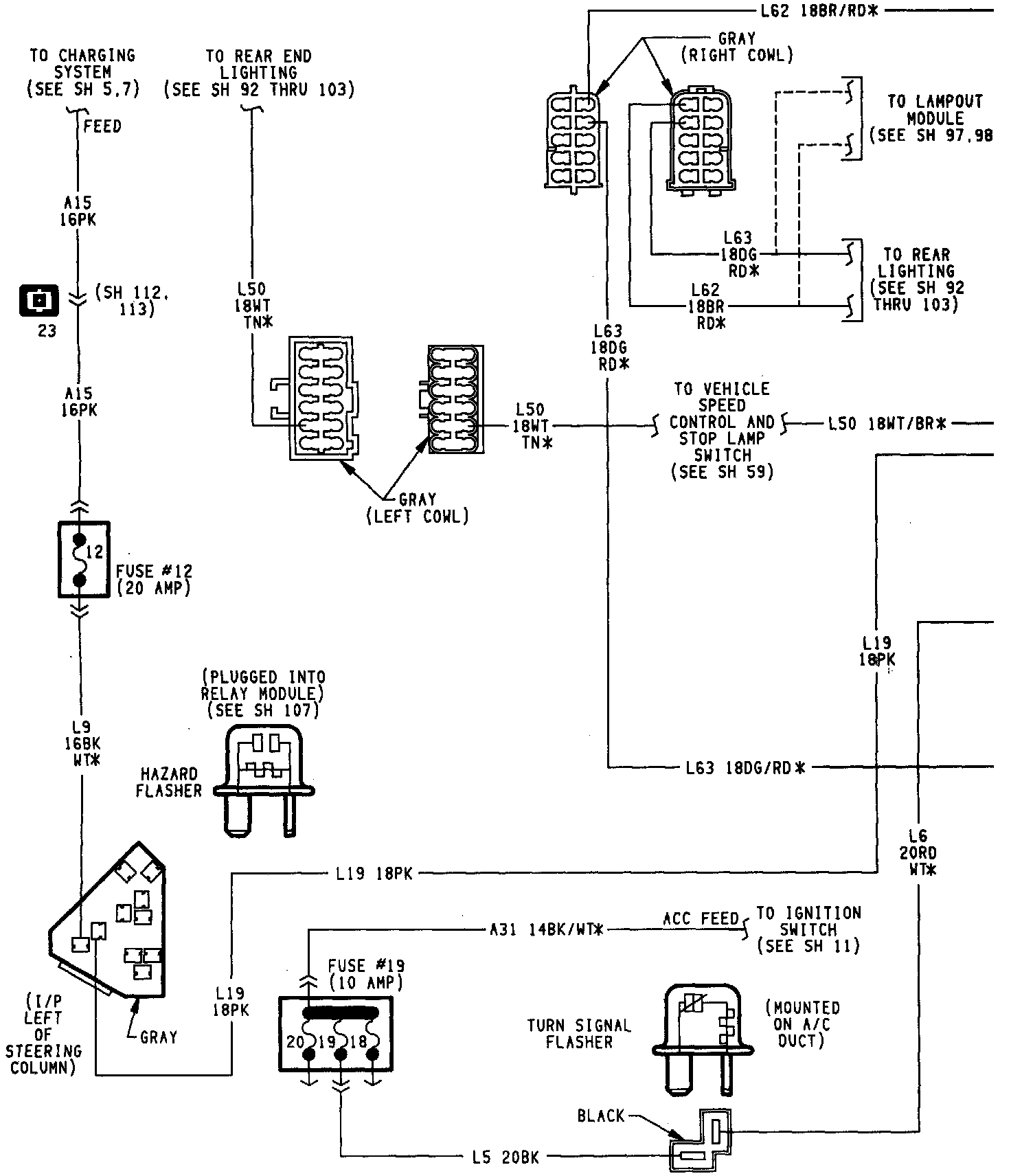

Turn And Hazard Flasher System:
