Instrument Panel Wiring (Connections)
Instrument Panel Wiring (Connections)

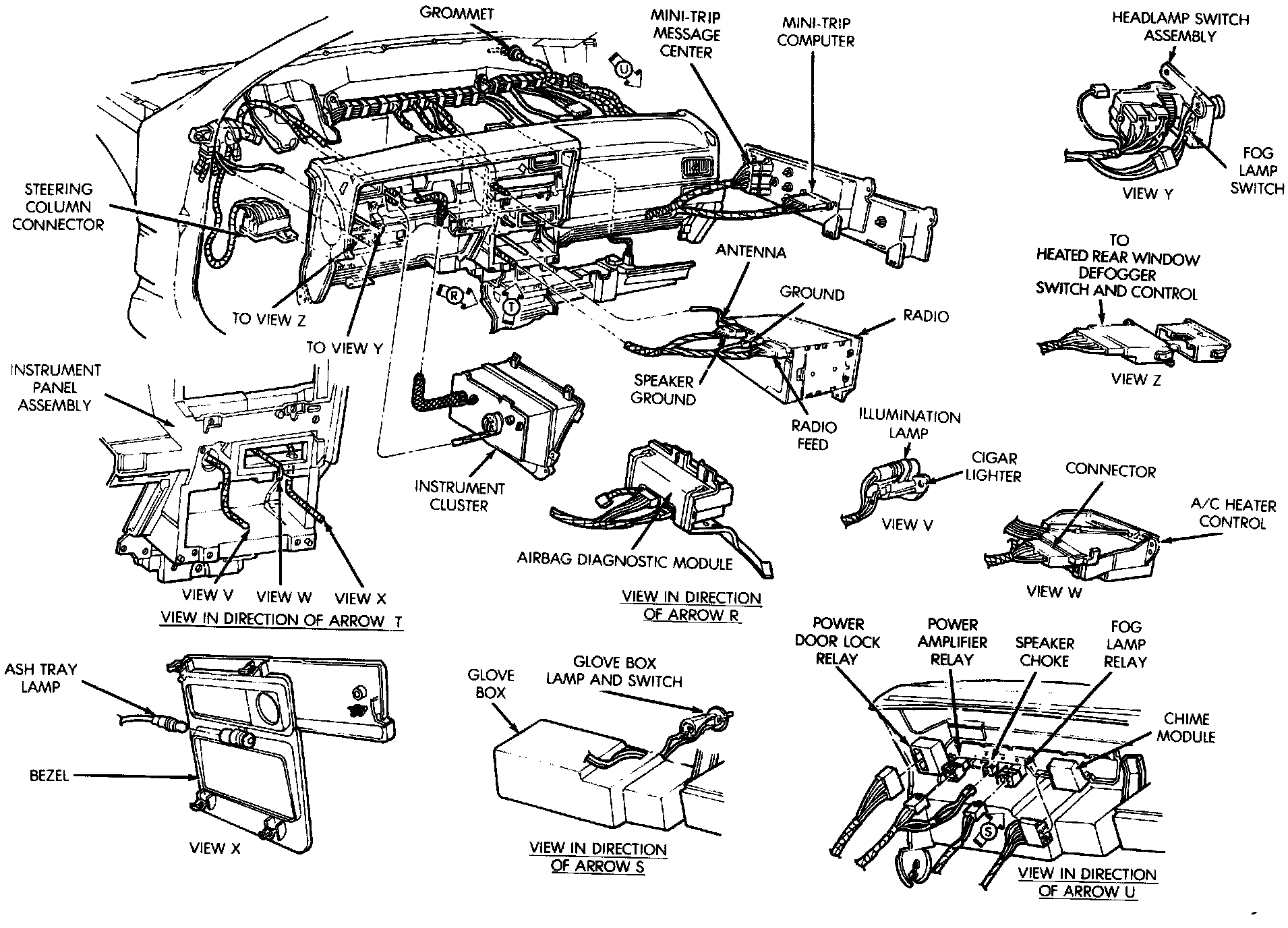

Instrument Panel Wiring:
