Home >> Plymouth >> 1994 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 8

Part 8

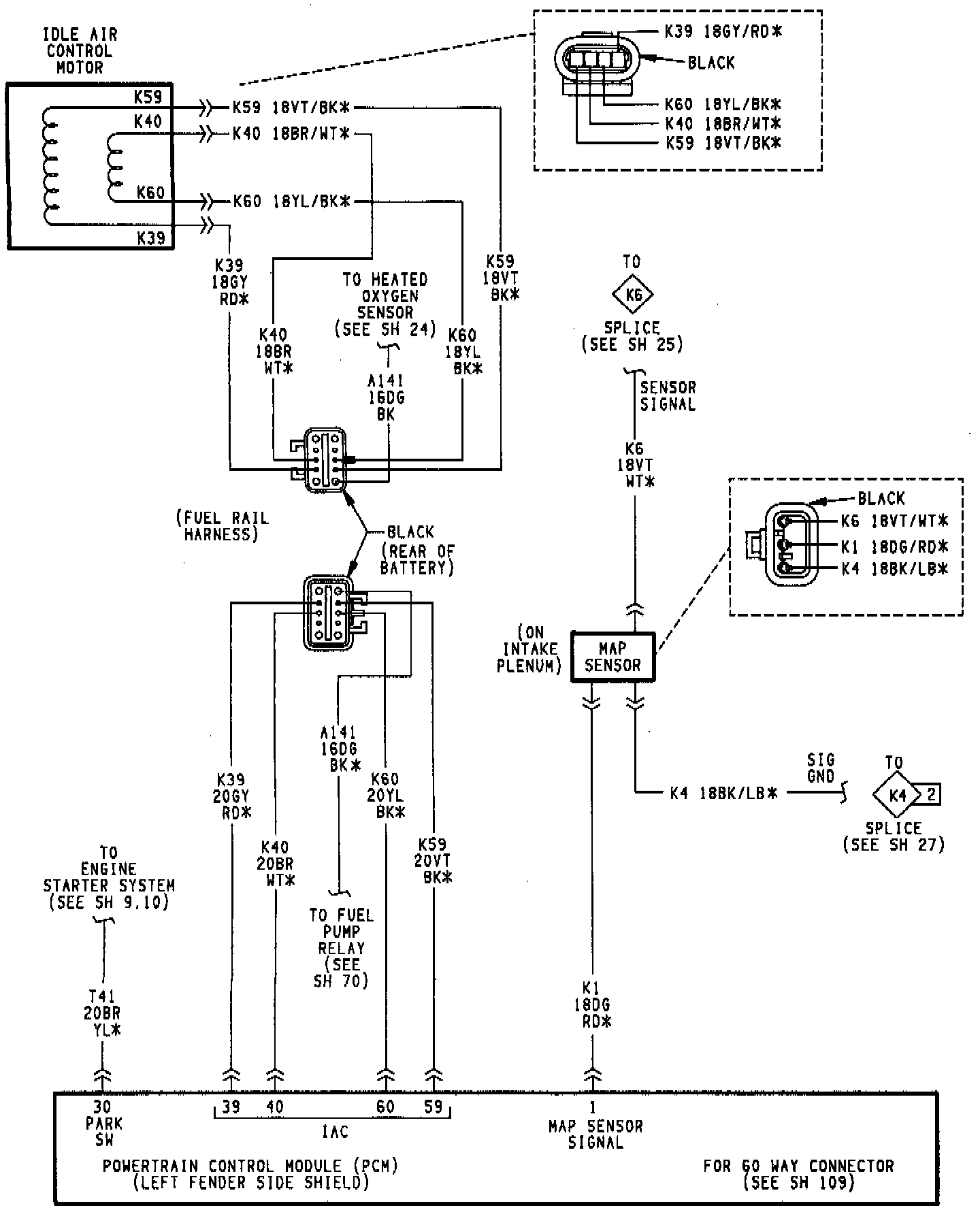

Fuel Injection System:
