Outside Rear View Mirror





DOOR MIRROR REMOVAL STEPS
1. Delta cover inner
2. Door mirror
3. Mirror

REMOVAL SERVICE POINT

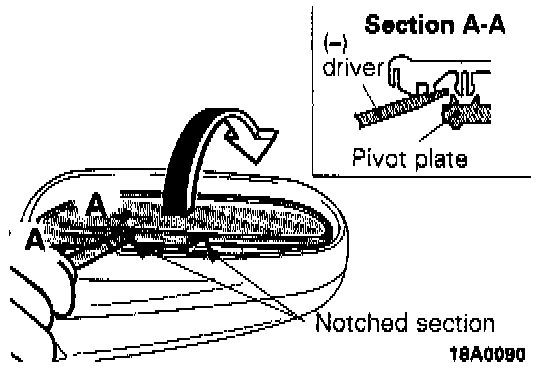

Mirror Removal
Turn the mirror by hand so that it faces upwards, insert a flat-bladed screwdriver wound with masking tape into the notched section, and lever out the mirror to remove it.
