Front Seat Assembly





REMOVAL STEPS
1. Head restraint
2. Guide ring
3. Seat anchor cover
4. Harness connector
5. Front seat assembly

NOTE: After provisionally tightening the seat assembly mounting nuts and bolts in every installation location, fully tighten them to the specified torque.

INSTALLATION SERVICE POINT





Seat Anchor Cover Installation
After securely inserting the tab at the front of the seat anchor cover into the seat mounting bracket, turn the cover in the direction of the arrow in the illustration to insert the tab at the side into the seat mounting bracket.

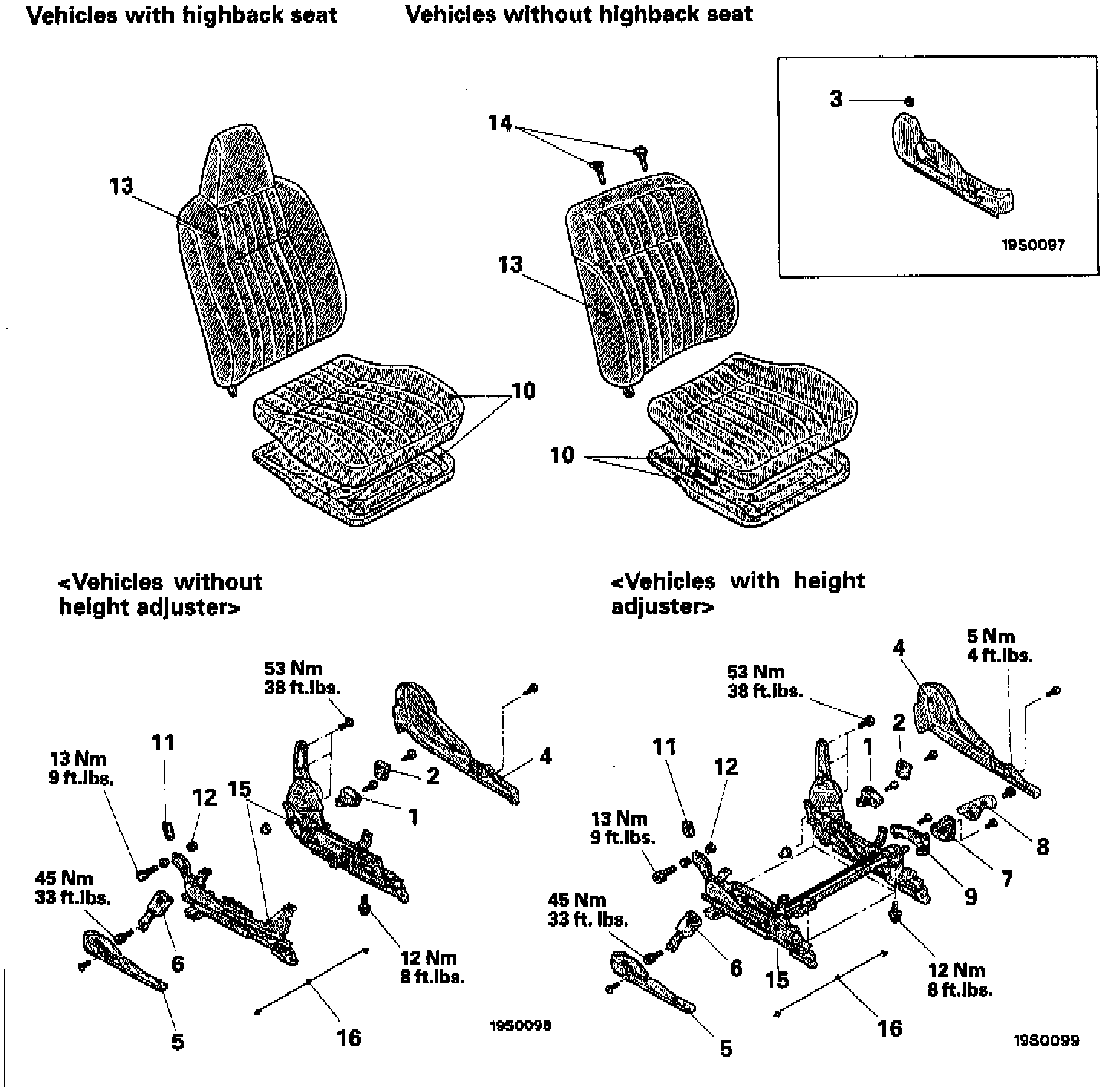

DISASSEMBLY STEPS
1. Reclining adjuster knob
2. Slide adjuster knob
3. Walk in knob
4. Front seat side shield cover
5. Front seat hinge cover
6. Inner seat belt
7. Height adjuster inner lever
8. Height adjuster lever
9. Inner cover
10. Seat cushion and seat cushion frame
11. Protector
12. Bushing
13. Seatback assembly
14. Head restraint guide
15. Seat adjuster assembly
16. Wire
