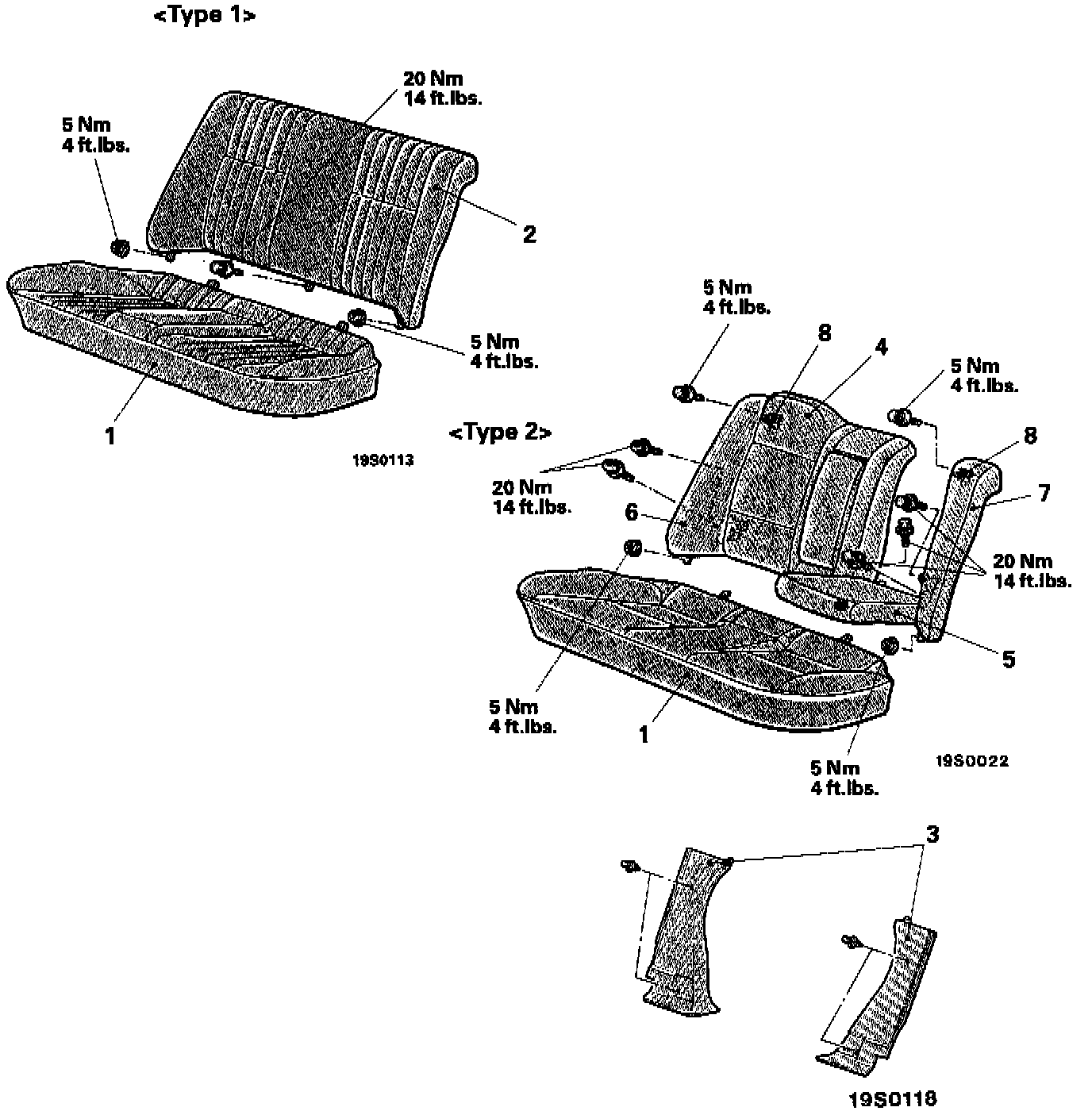

Rear Seat Assembly

REMOVAL STEPS
1. Seat cushion
2. Seatback

REMOVAL STEPS
1. Seat cushion
3. Seatback brace trim
4. Seatback(RH)
5. Seatback (LH)
6. Side seatback (RH)
7. Side seatback (LH)
8. Striker

REMOVAL SERVICE POINT

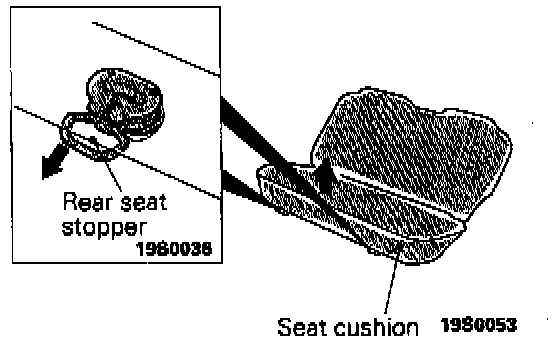

Seat Cushion Removal
To remove the seat cushion, raise the front part of the seat cushion while pulling the rear seat stopper.

INSTALLATION SERVICE POINTS

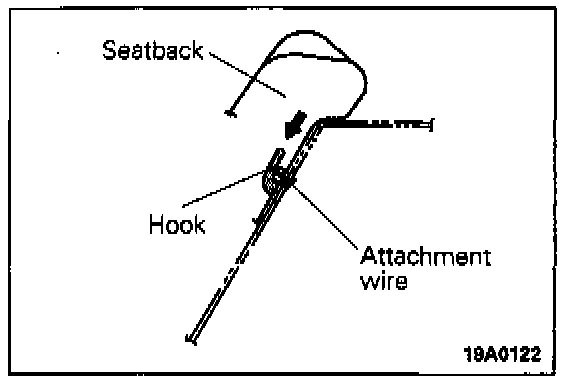

Substep A, Seatback Installation
Push the seatback in the direction indicated in the illustration; then securely attach the attachment wire to the body side hook and install the seatback.





Substep B, Seatback Installation
Place the seatback (L.H.) hinge bracket facing downwards and the seatback (R.H.) hinge bracket facing upwards, and then install the bolt.
