Test 12 - Overdrive Cancellation Function Related Circuits

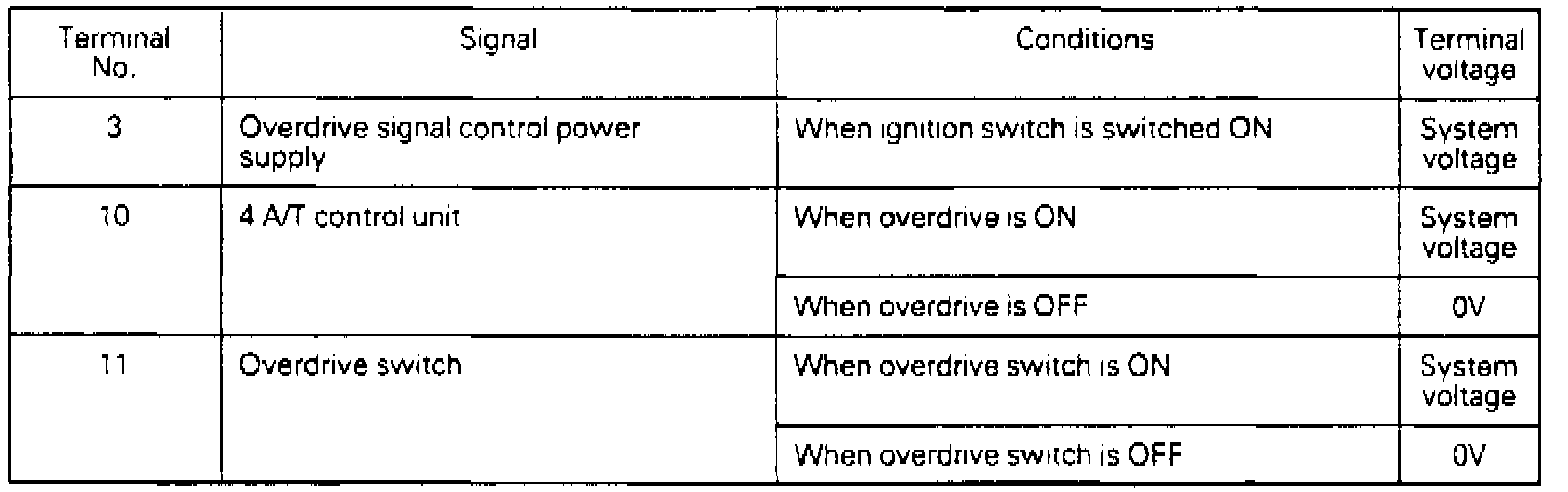

Fig. 26 Test No. 12: Overdrive Cancellation Function Related Circuits:
