Plymouth
>>
1994
>>
Colt L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relay Locations
>>
A/C Compressor Clutch Relay
A/C Compressor Clutch Relay

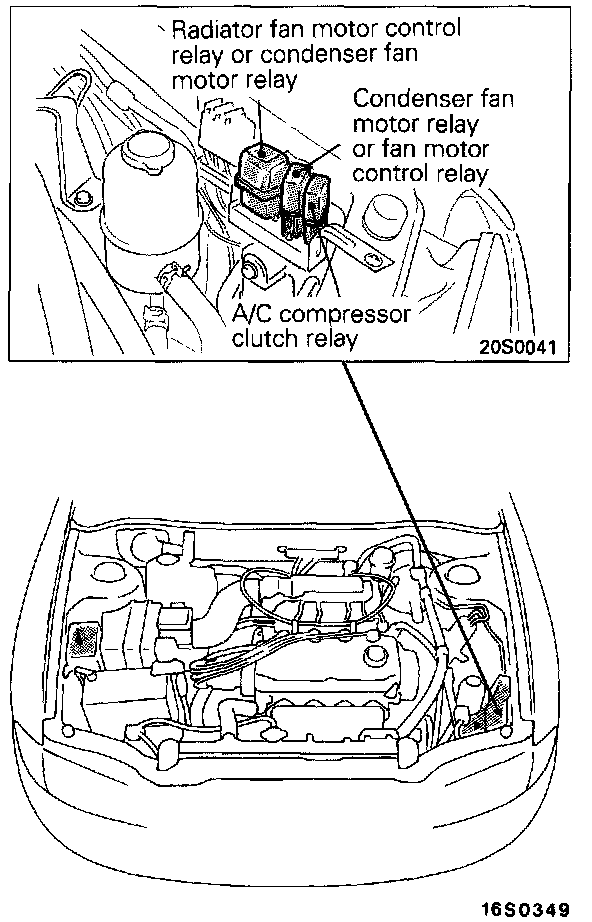

A/C Compressor Clutch, Condenser Fan Motor Or Fan Motor Control, Radiator Fan Motor Control Or Condenser Fan Motor Relays:
