Home >> Plymouth >> 1994 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Part 3 of 5

Part 3 of 5

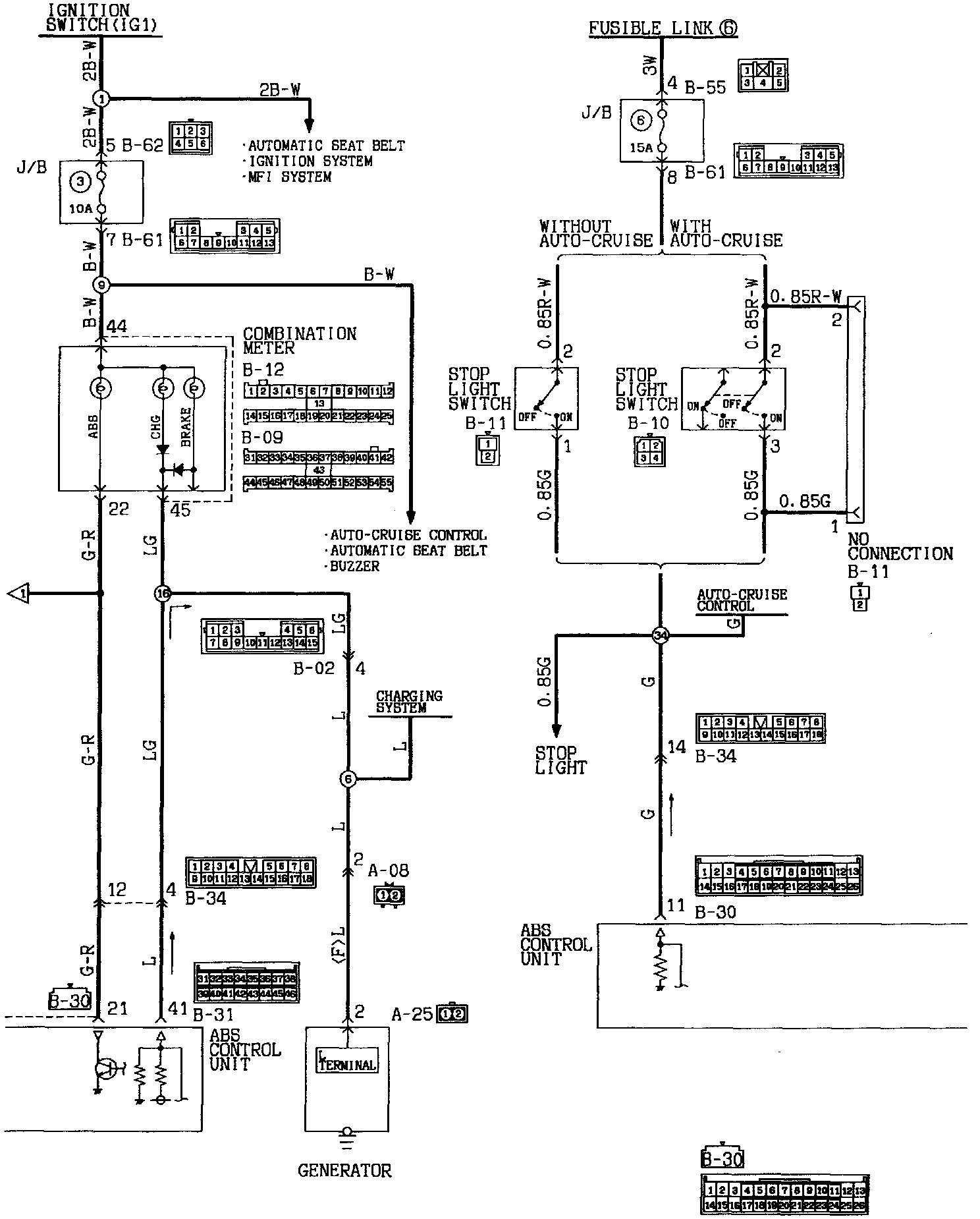

Anti-Lock Braking System Circuit (Part 3 Of 5):
